Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor), Multi-Display (w/o LEXUS Navigation System)

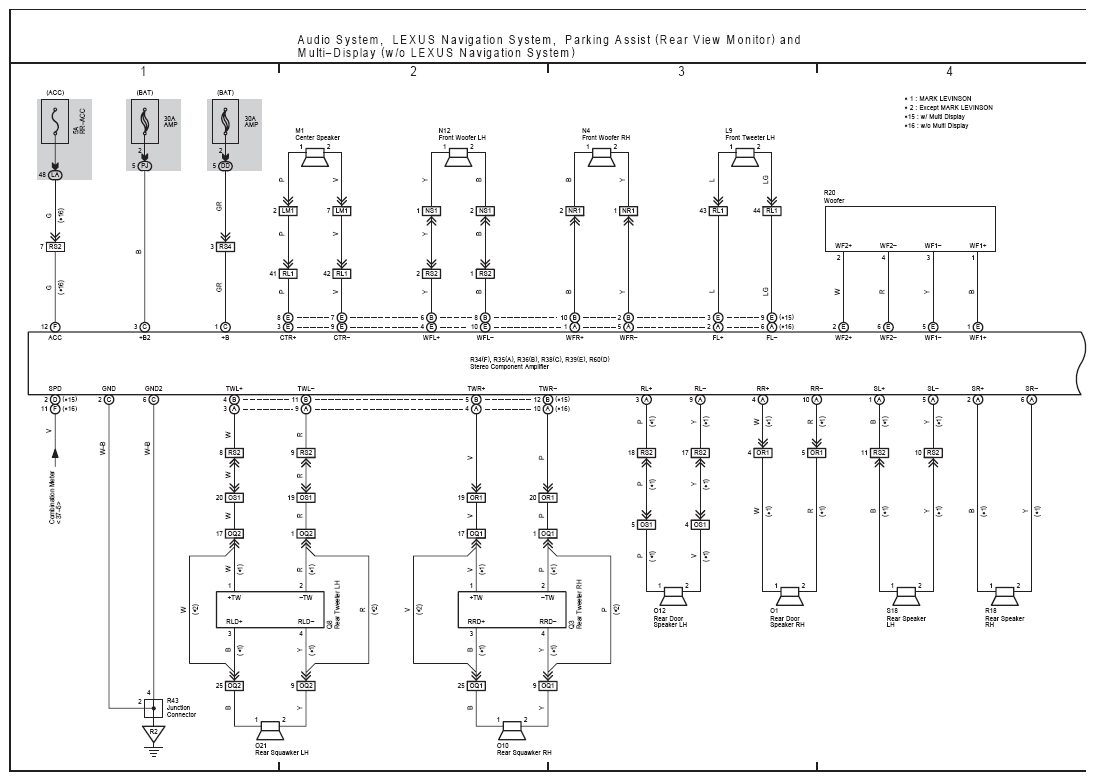

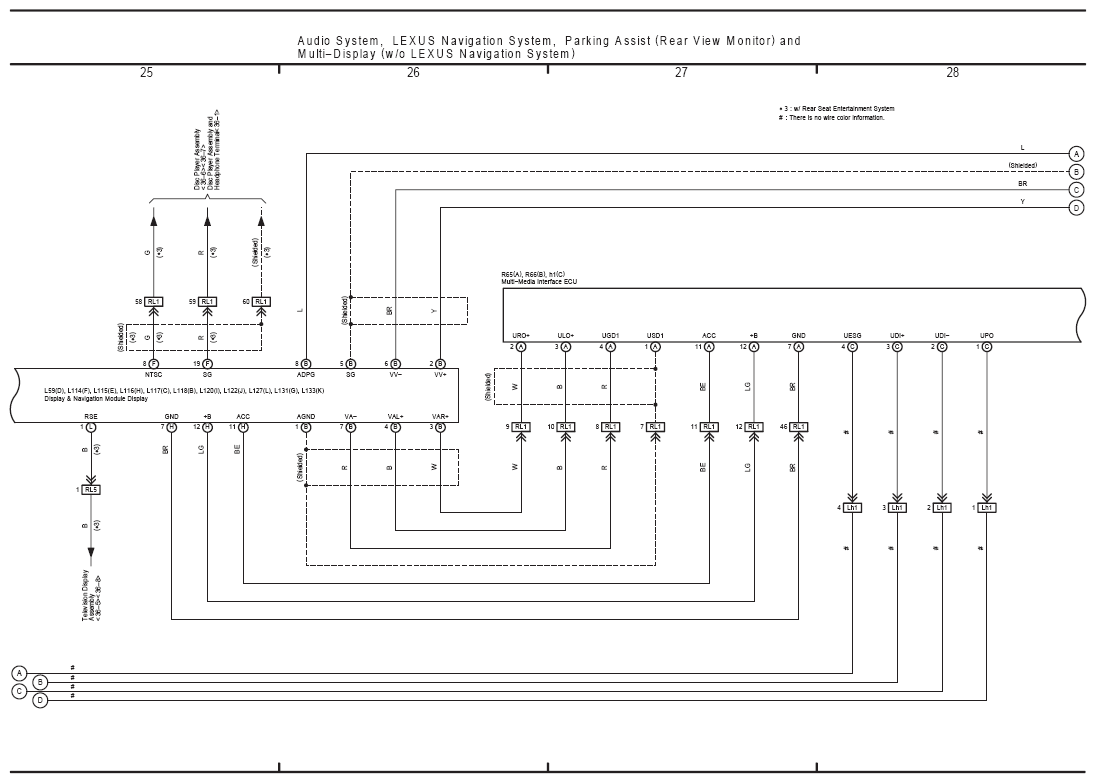

Fig 1: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

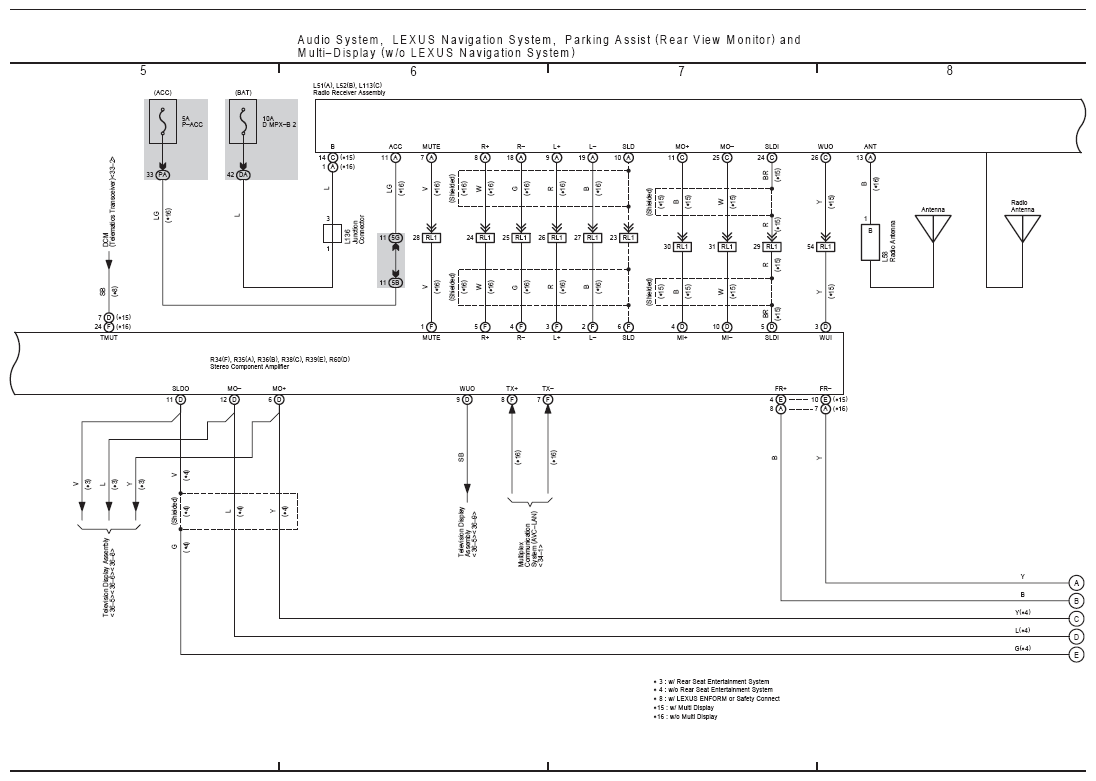

Fig 2: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

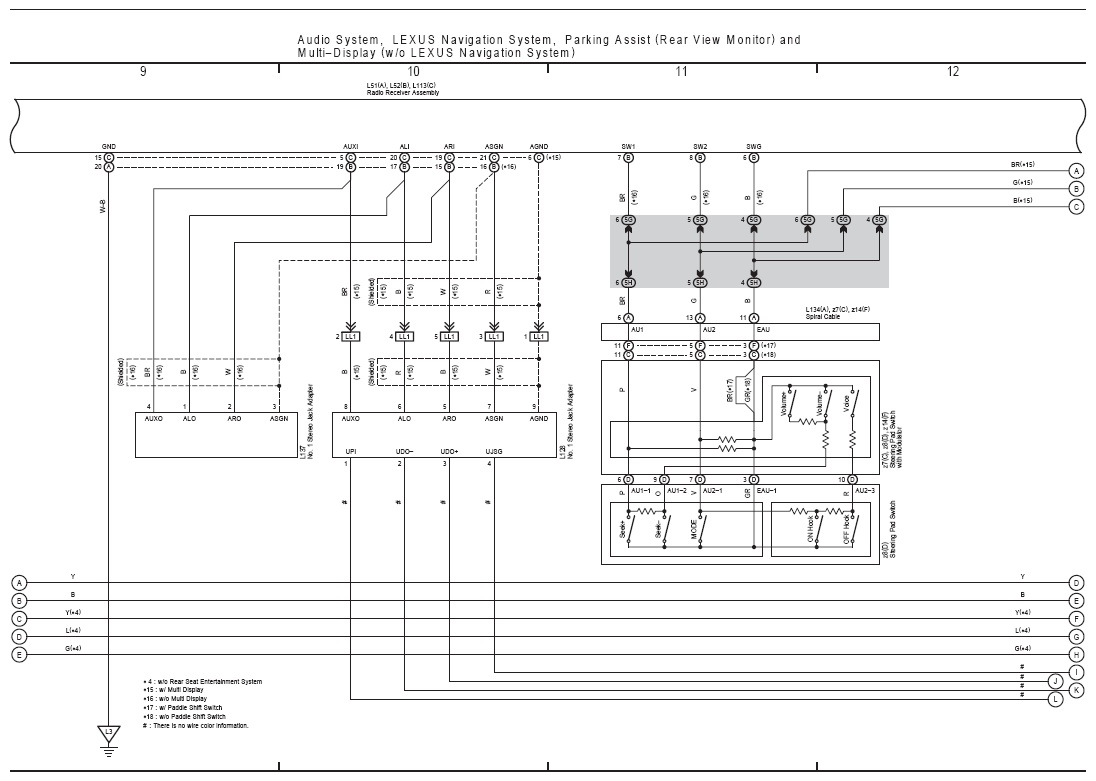

Fig 3: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

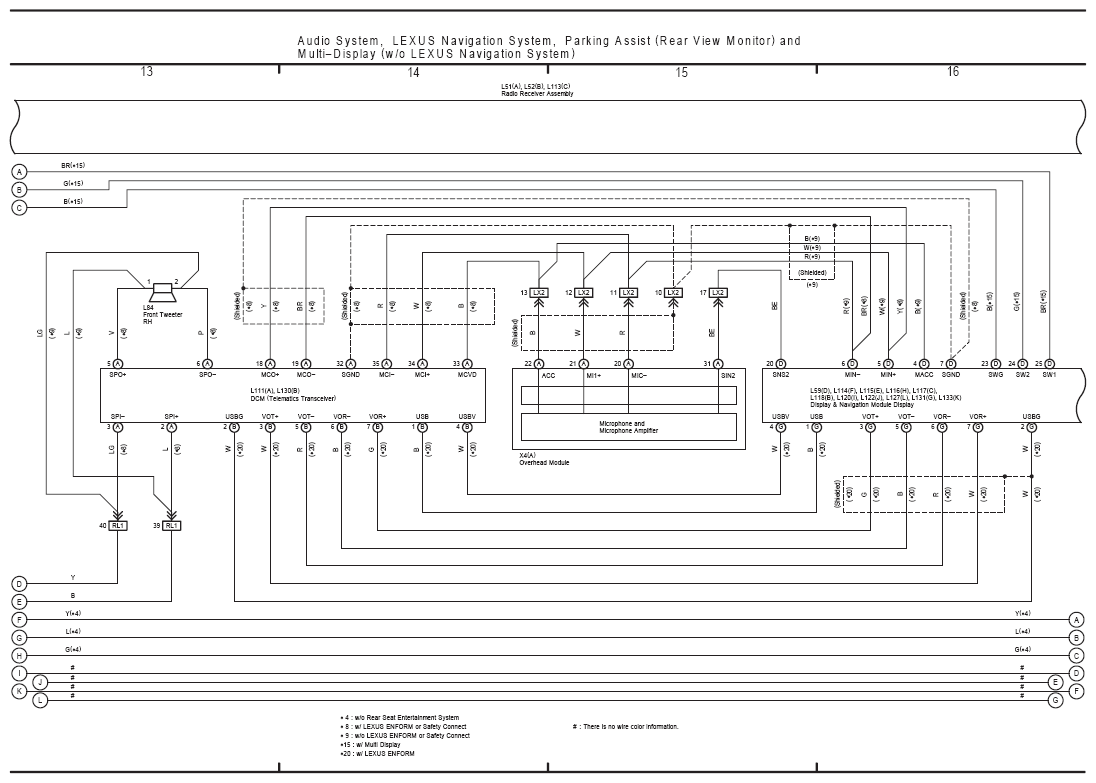

Fig 4: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

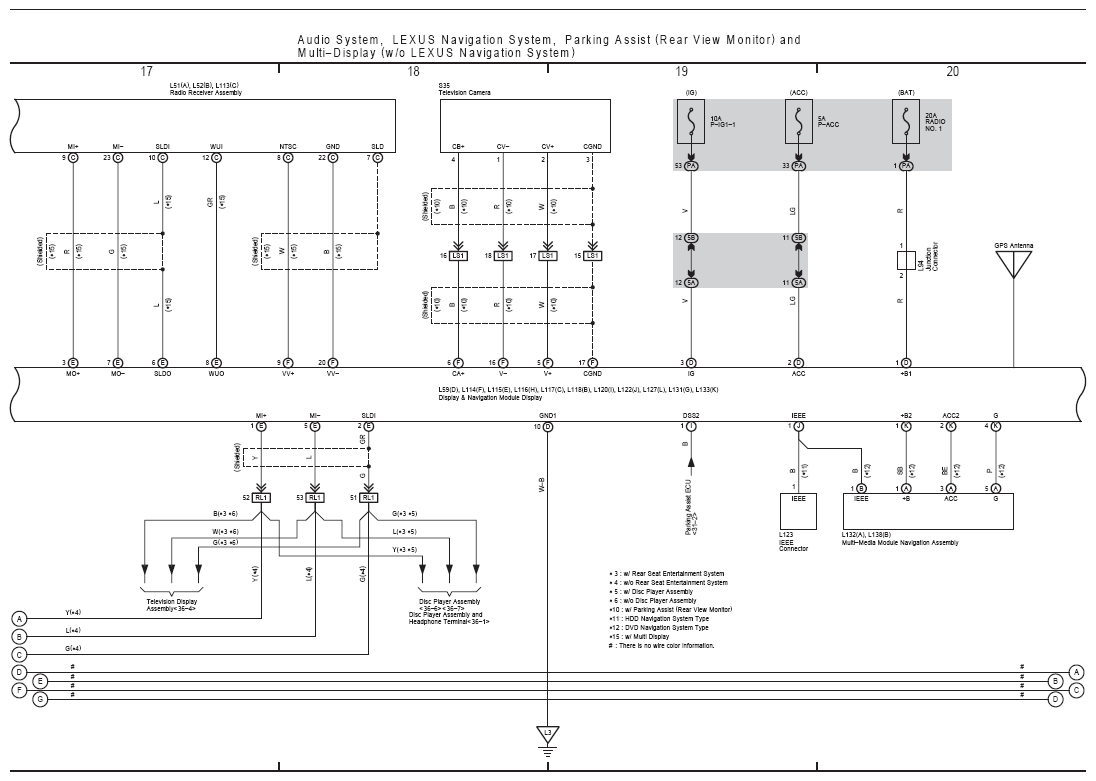

Fig 5: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

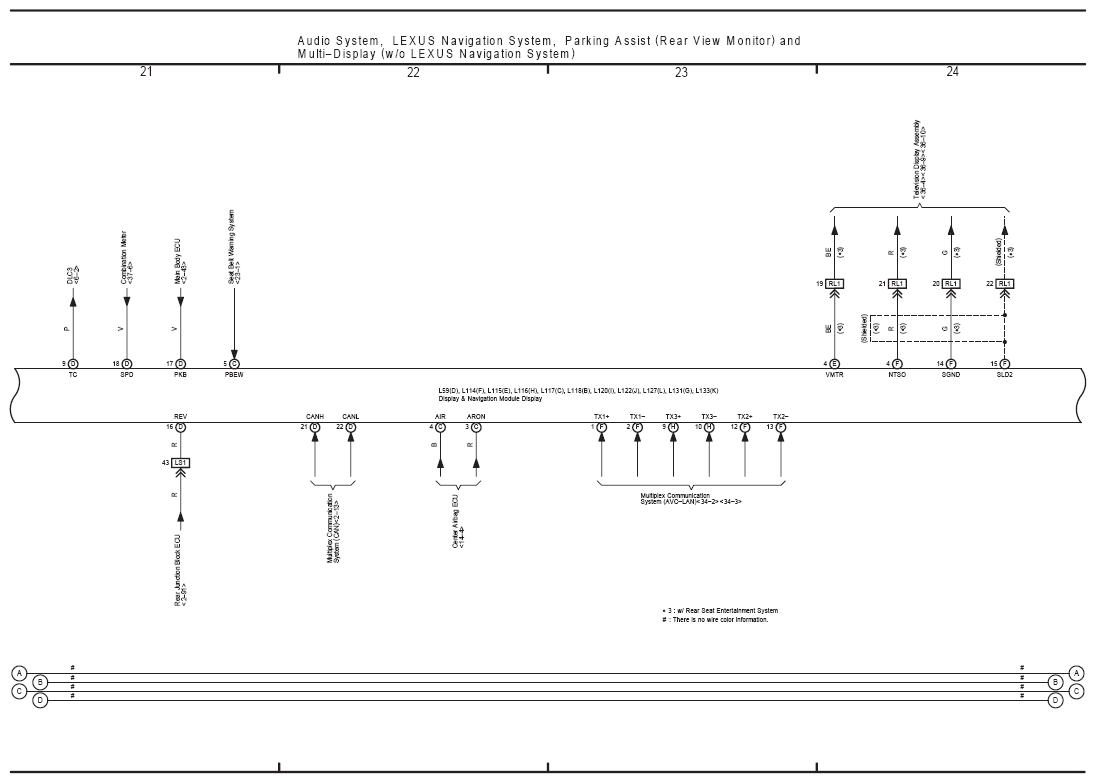

Fig 6: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (6 Of 9)

Fig 7: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (7 Of 9)

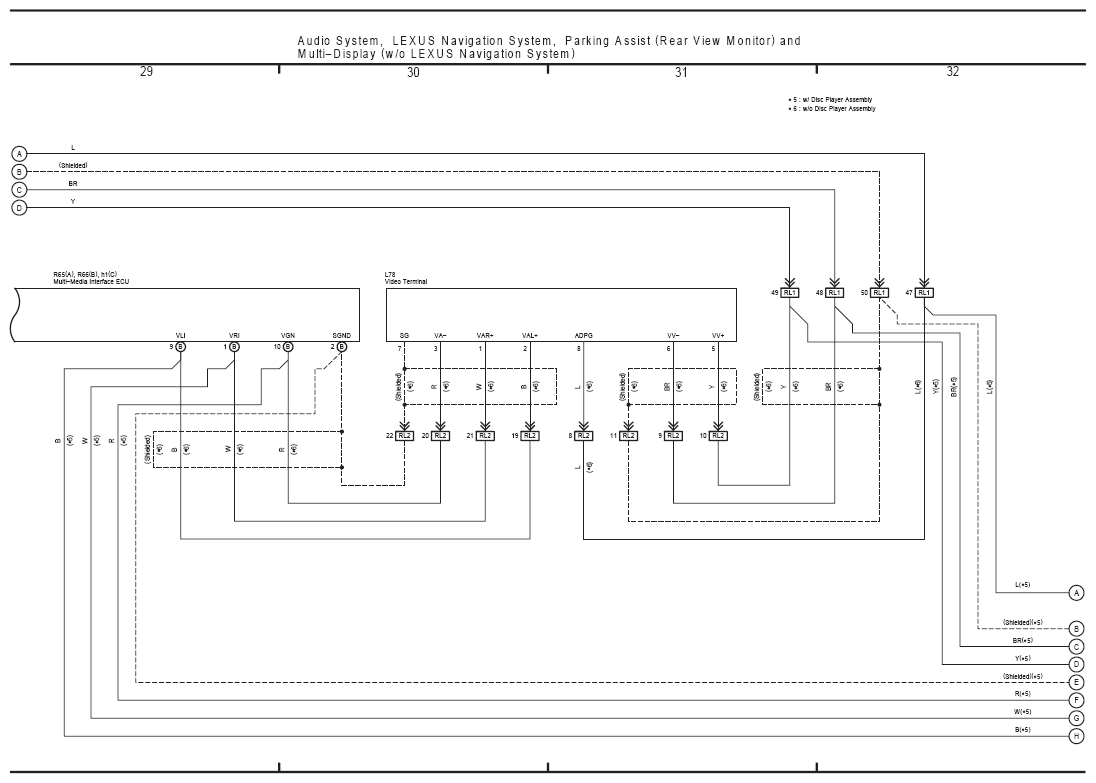

Fig 8: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (8 Of 9)

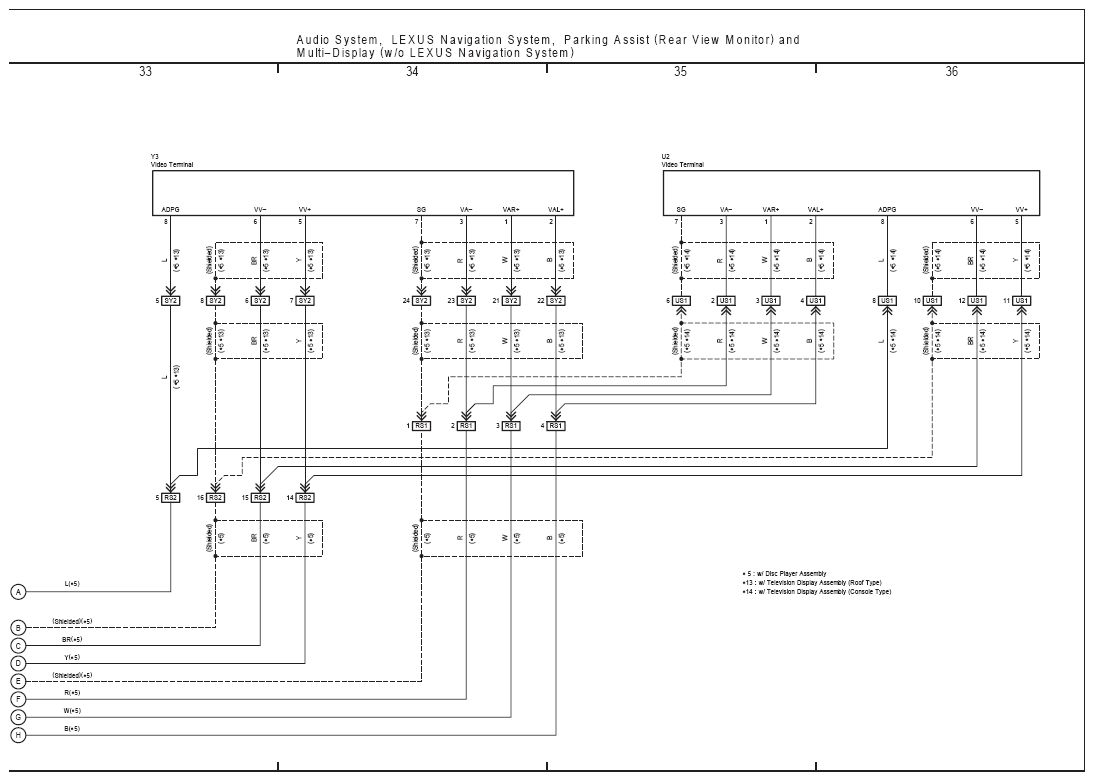

Fig 9: Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (w/o LEXUS Navigation System) Electrical Wiring Diagram (9 Of 9)
