Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH: Wiring Diagram

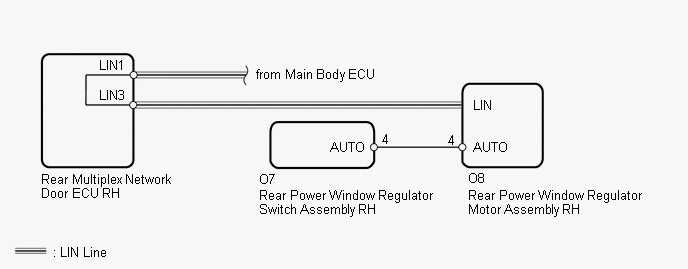

Fig 1: Identifying Rear Power Window Regulator Switch Assembly RH - Wiring Diagram
GTY288725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
