Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

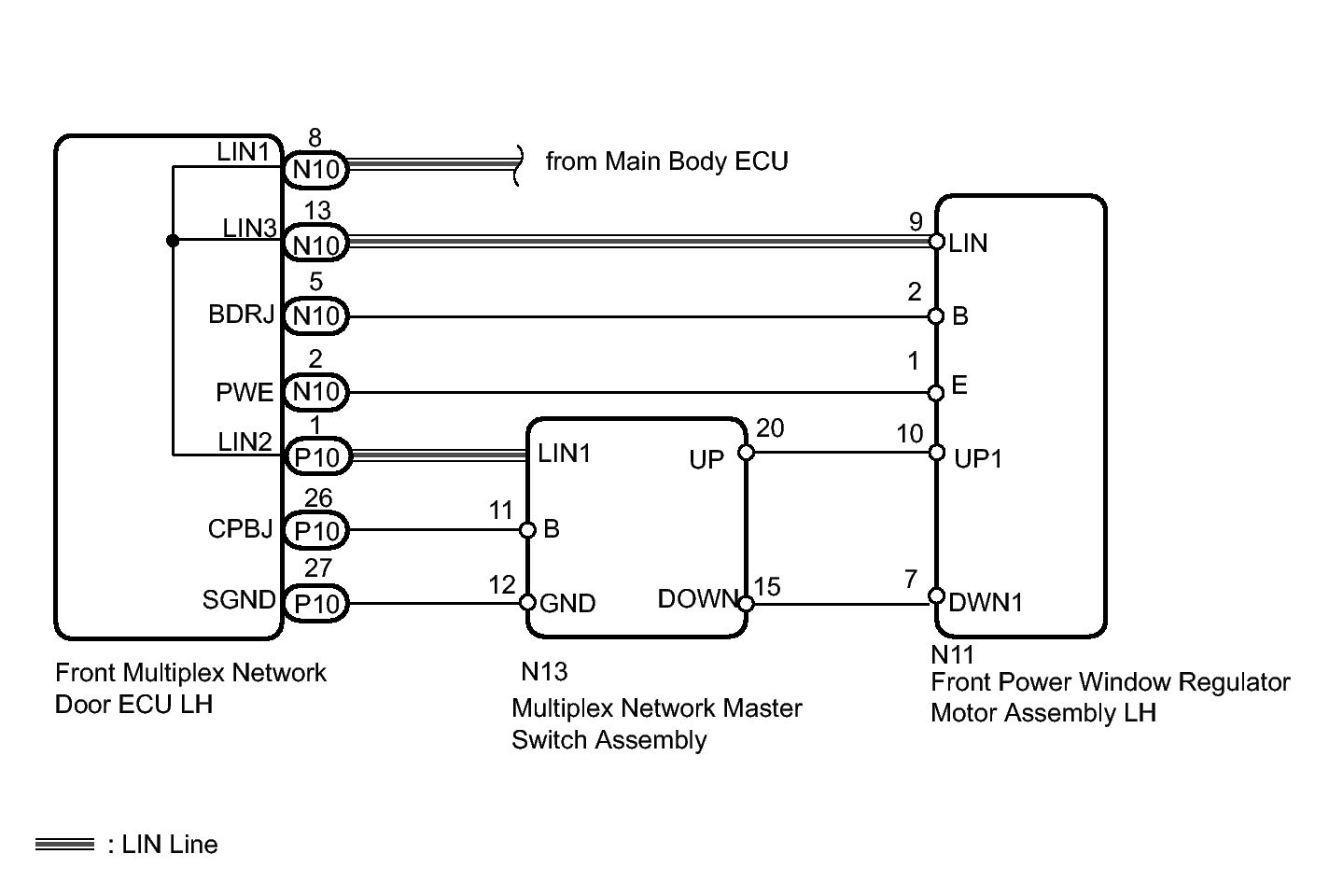

Fig 1: Multiplex Network Master Switch - Wiring Diagram

GTY286164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
