Integration Control and Panel Assembly Power Source Circuit: Procedure

1. Disconnect the RADIO NO. 1, P-ACC and P-IG1-1 fuses from the passenger side junction block.
2. Measure the resistance of the fuses.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   RADIO NO. 1 fuse	Always	Below 1 Ω
   P-ACC fuse	Always	Below 1 Ω
   P-IG1-1 fuse	Always	Below 1 Ω

NG → REPLACE FUSE

OK: Go to next step

1. Disconnect the L35 panel connector.

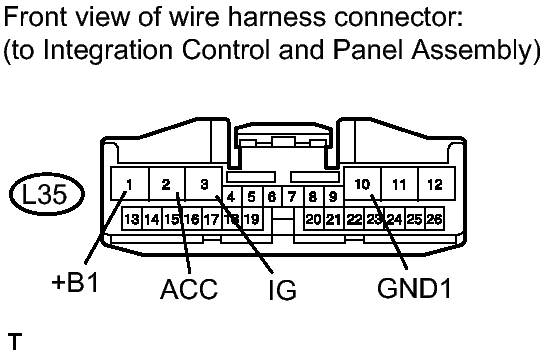

   Fig 1: Identifying Integration Control And Panel Assembly Harness Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L35-10 (GND1) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Switch Condition	Specified Condition
   L35-1 (+B1) - Body ground	Always	11 to 14 V
   L35-2 (ACC) - Body ground	Engine switch on (ACC)	11 to 14 V
   L35-3 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
