DTC U0327: Software Incompatibility with Vehicle Security Control Module: Wiring Diagram

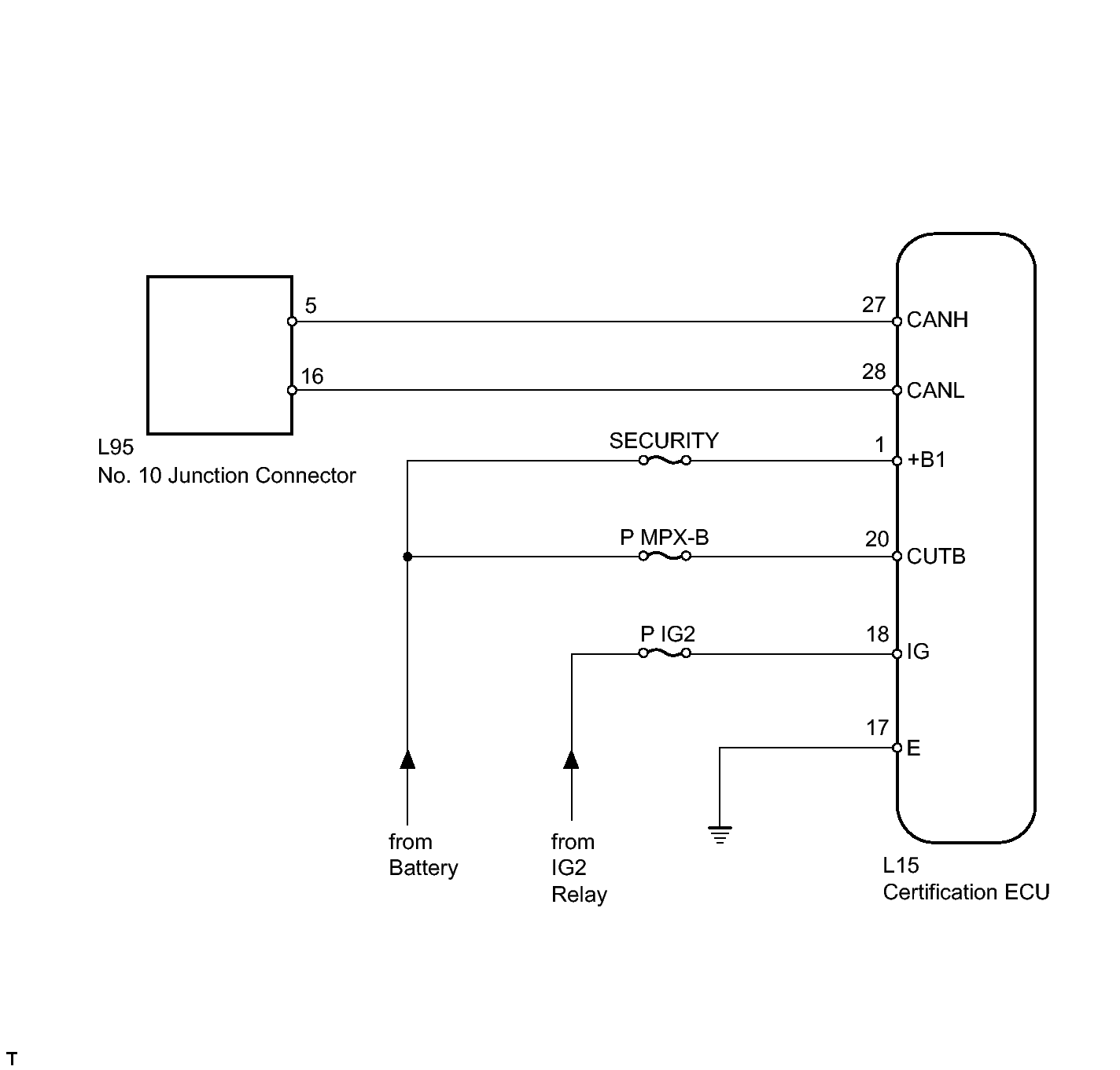

Fig 1: Identifying Software Incompatibility With Vehicle Security Control Module Wiring Diagram
GTY266700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
