Communication Devices
>>
Can Communication System (Diagnostic Codes & Circuit Tests)
>>
Can Communication System
>>
Symptom Tests
>>
Display and Navigation Assembly Communication Stop Mode
>>
Wiring Diagram

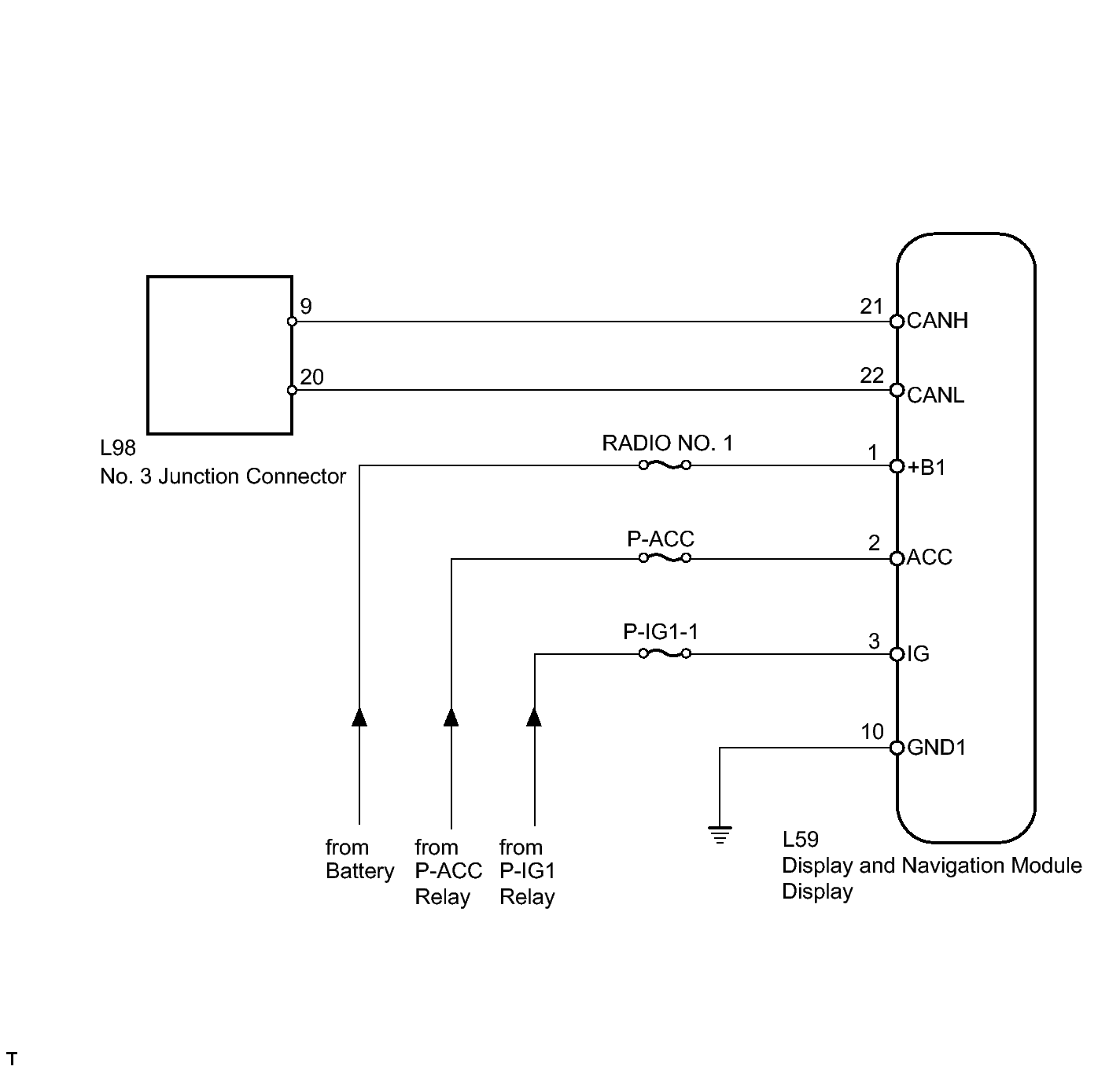

Display and Navigation Assembly Communication Stop Mode: Wiring Diagram
Fig 1: Identifying Navigation Assembly Communication Stop Mode Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
