Room Oscillator does not Recognize Key: Wiring Diagram

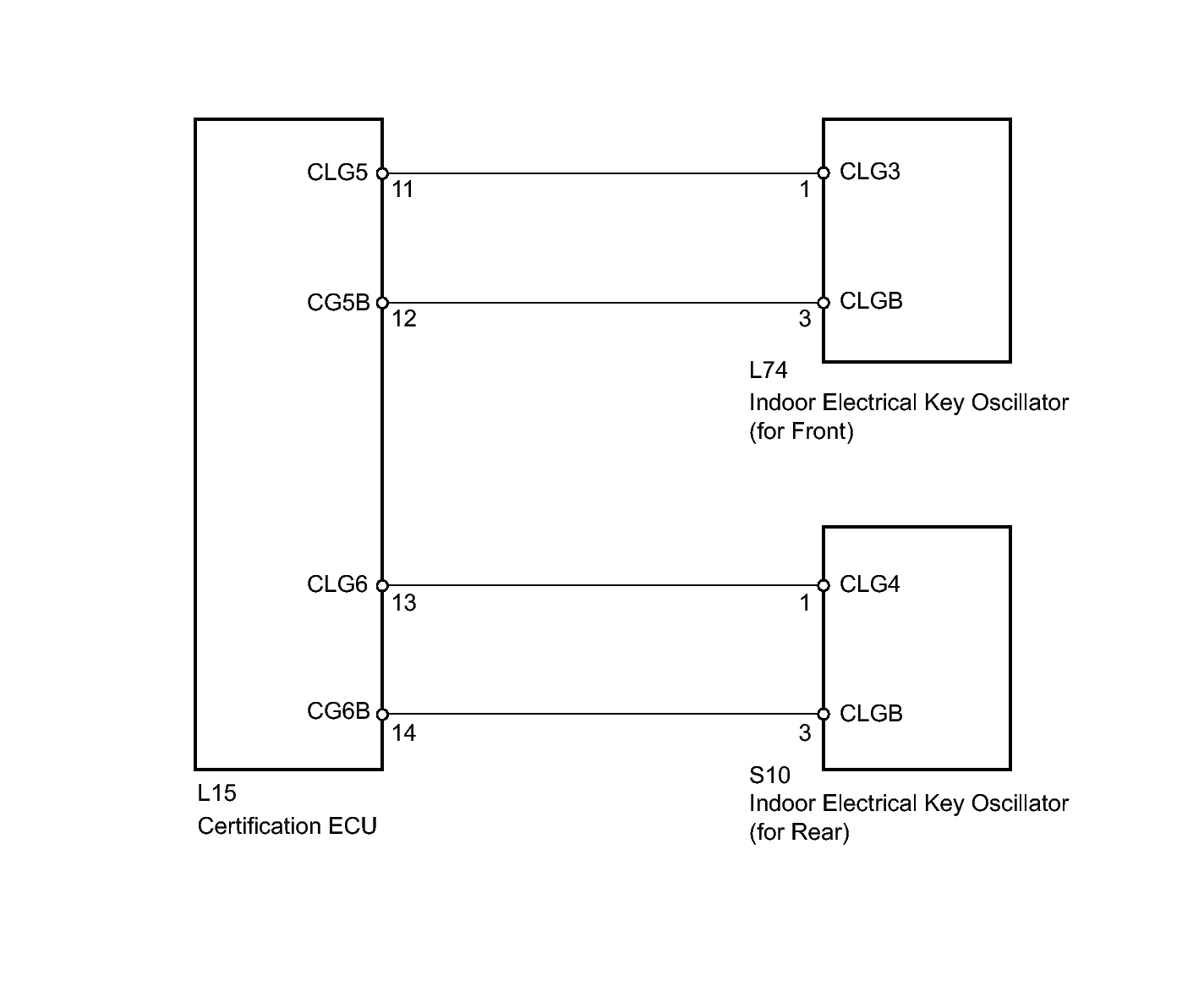

Fig 1: L15 Certfication ECU - Wiring Diagram

GTY288841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
