Transmission Wire: Components: Illustration

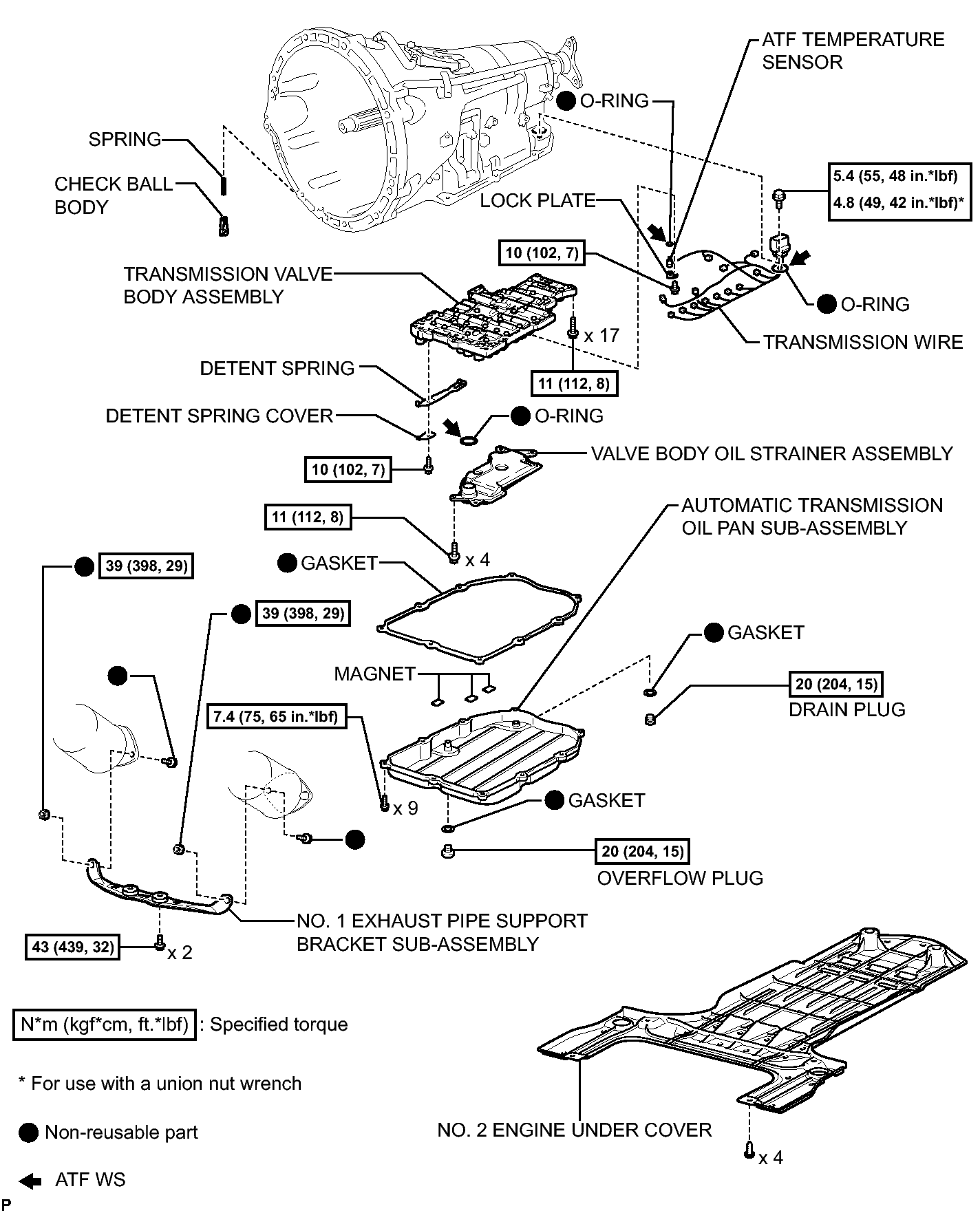

Fig 1: Identifying Transmission Wire Replacement Components with Torque Specifications

GTY108952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
