Oil Pump: Components: Illustration

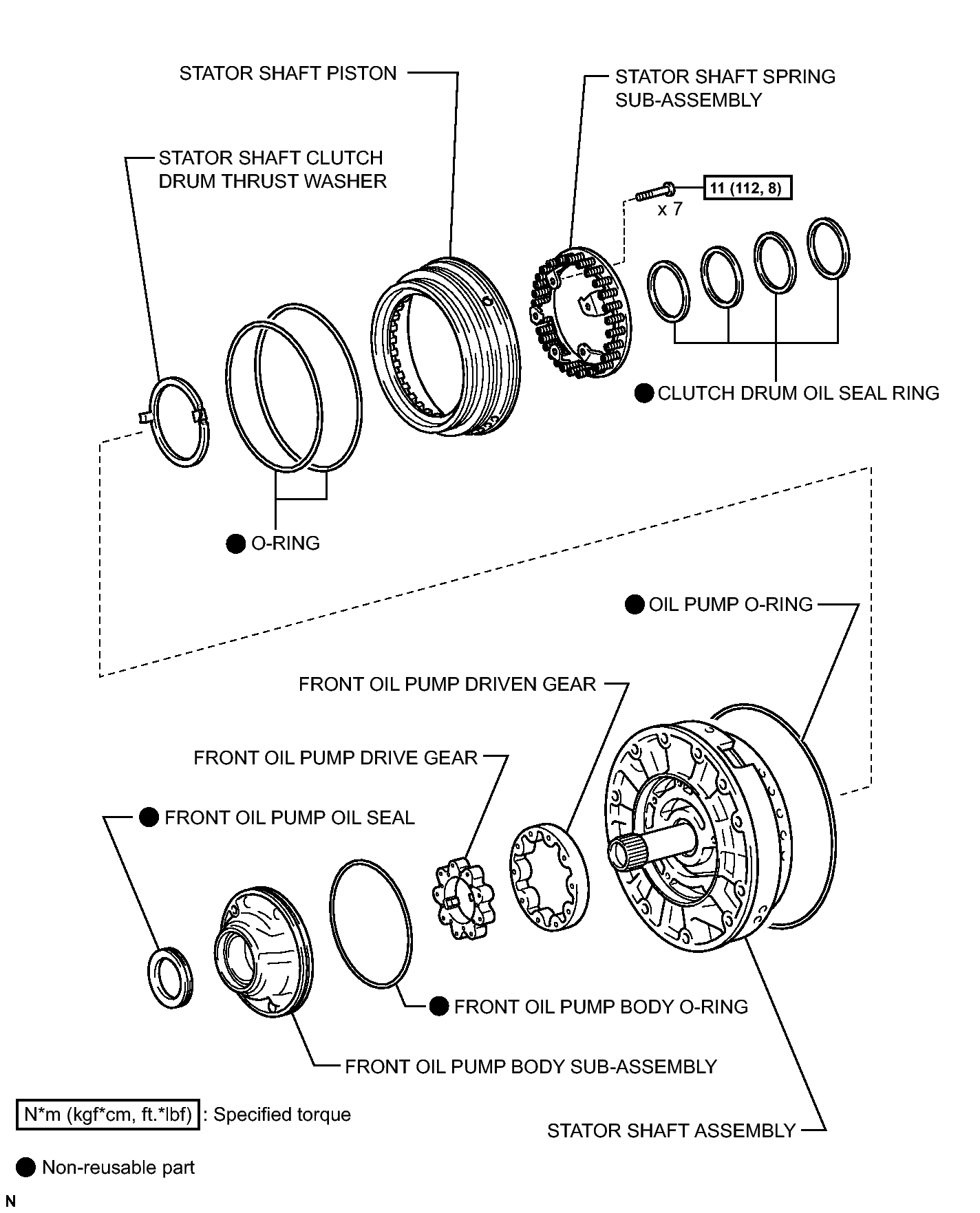

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications

GTY107361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
