Front Stabilizer Bar: Components: Illustration

Fig 1: Identifying Front Stabilizer Bar Replacement Components
GTY149301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

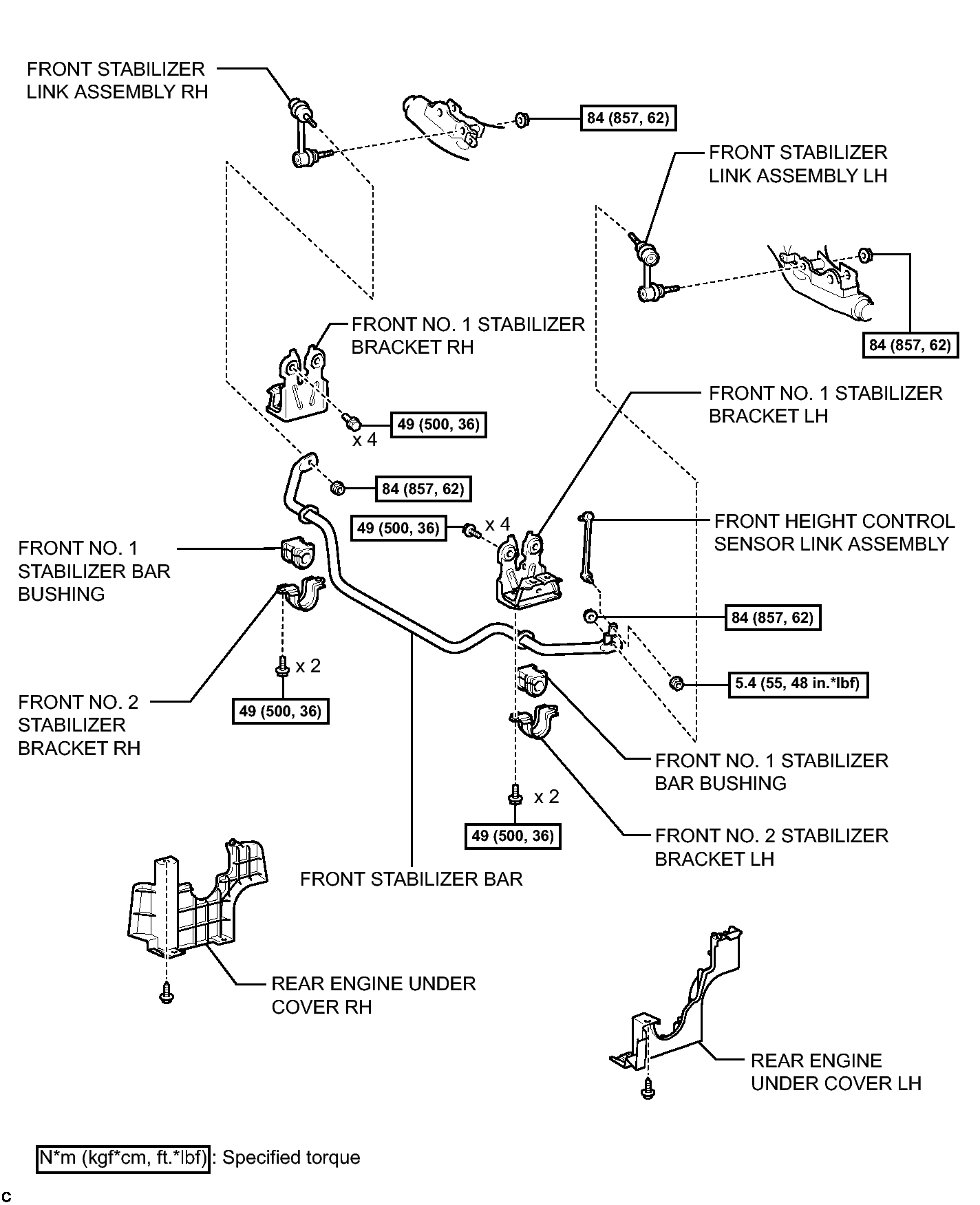

Fig 1: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications
GTY108971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
