Home >> Lexus >> 2012 >> IS F >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column (Service Information) >> Tilt And Telescopic Manual Switch >> Components >> Illustration

Tilt And Telescopic Manual Switch: Components: Illustration

Fig 1: Identifying Tilt And Telescopic Manual Switch Replacement Components With Torque Specifications (1 Of 2)
GTY109060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

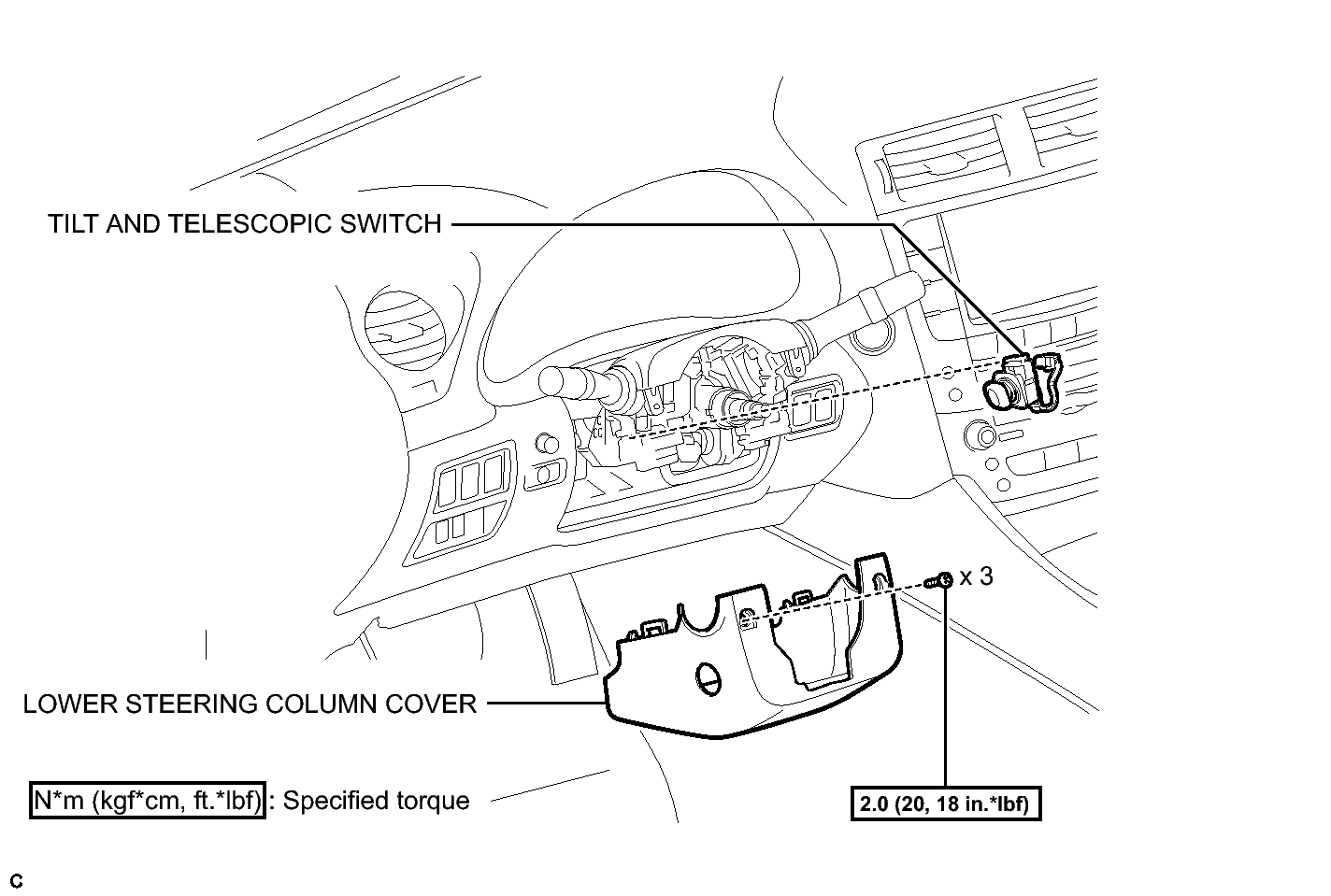

Fig 1: Identifying Tilt And Telescopic Manual Switch Replacement Components With Torque Specifications (2 Of 2)
GTY108893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
