Home >> Lexus >> 2012 >> IS F >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical (Service Information) >> Cylinder Block >> Components >> Illustration

Cylinder Block: Components: Illustration

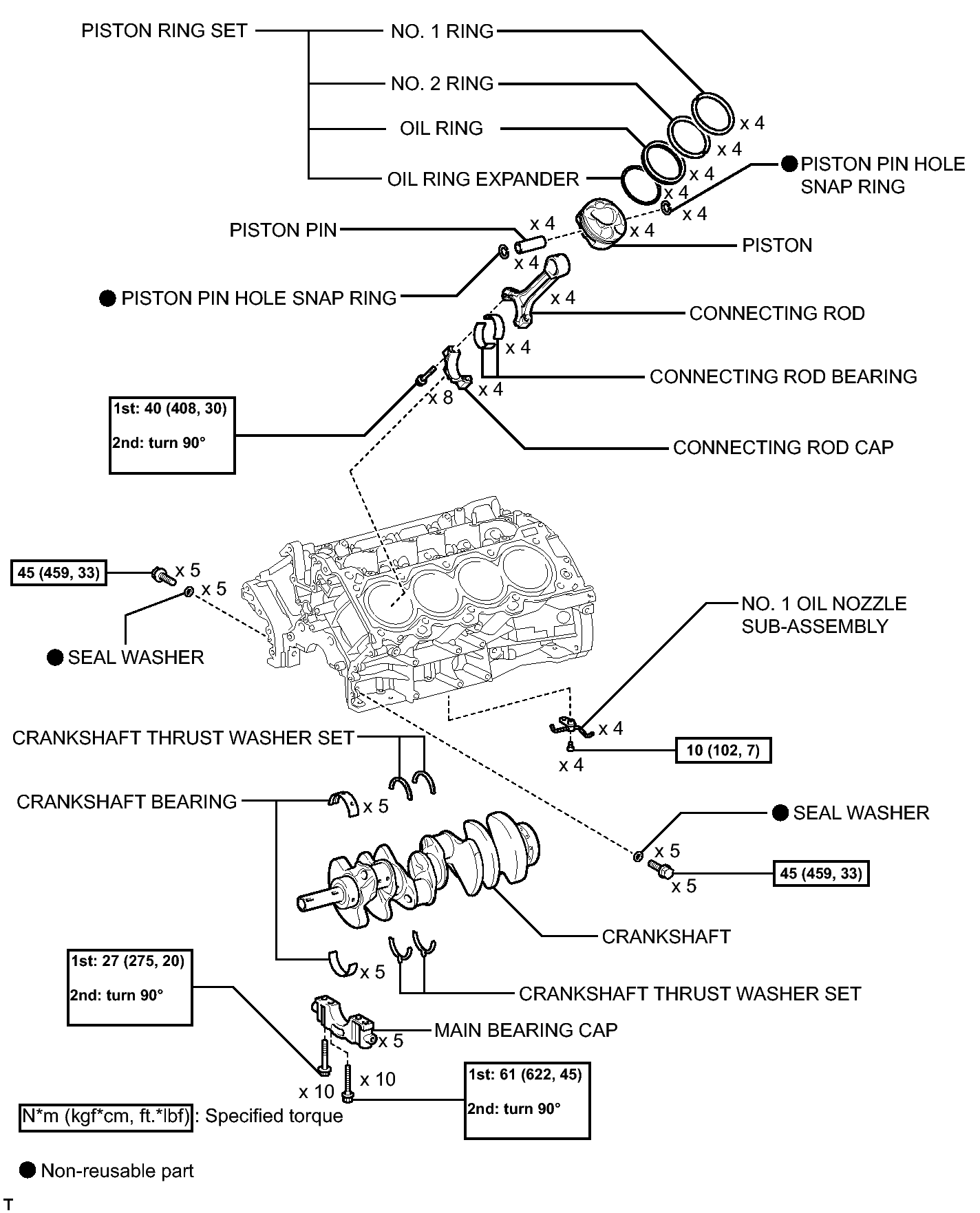

Fig 1: Identifying Cylinder Block Replacement Components with Torque Specifications

GTY148923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
