Scavenging Pump: Removal: Removal

REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
HINT:

See step 55
REMOVE NO. 1 OIL PIPE
1. Remove the 2 bolts and No. 1 oil pipe.

  Fig 1: Locating No. 1 Oil Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the oil pipe seal and O-ring from the No. 1 oil pipe.
REMOVE NO. 2 OIL PIPE
1. Remove the 2 bolts and No. 2 oil pipe.

  Fig 2: Locating No. 2 Oil Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the oil pipe seal and O-ring from the No. 2 oil pipe.
REMOVE NO. 3 OIL PIPE
1. Remove the 2 bolts and No. 3 oil pipe.

  Fig 3: Locating No. 3 Oil Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the No. 3 oil pipe.
REMOVE SCAVENGING PUMP ASSEMBLY
1. Remove the 6 bolts, scavenging pump assembly and gasket.

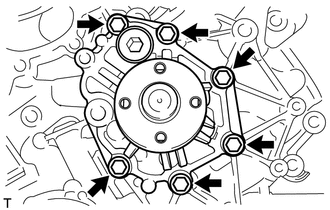

  Fig 4: Locating Scavenging Pump Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
