Scavenging Pump: Components: Illustration

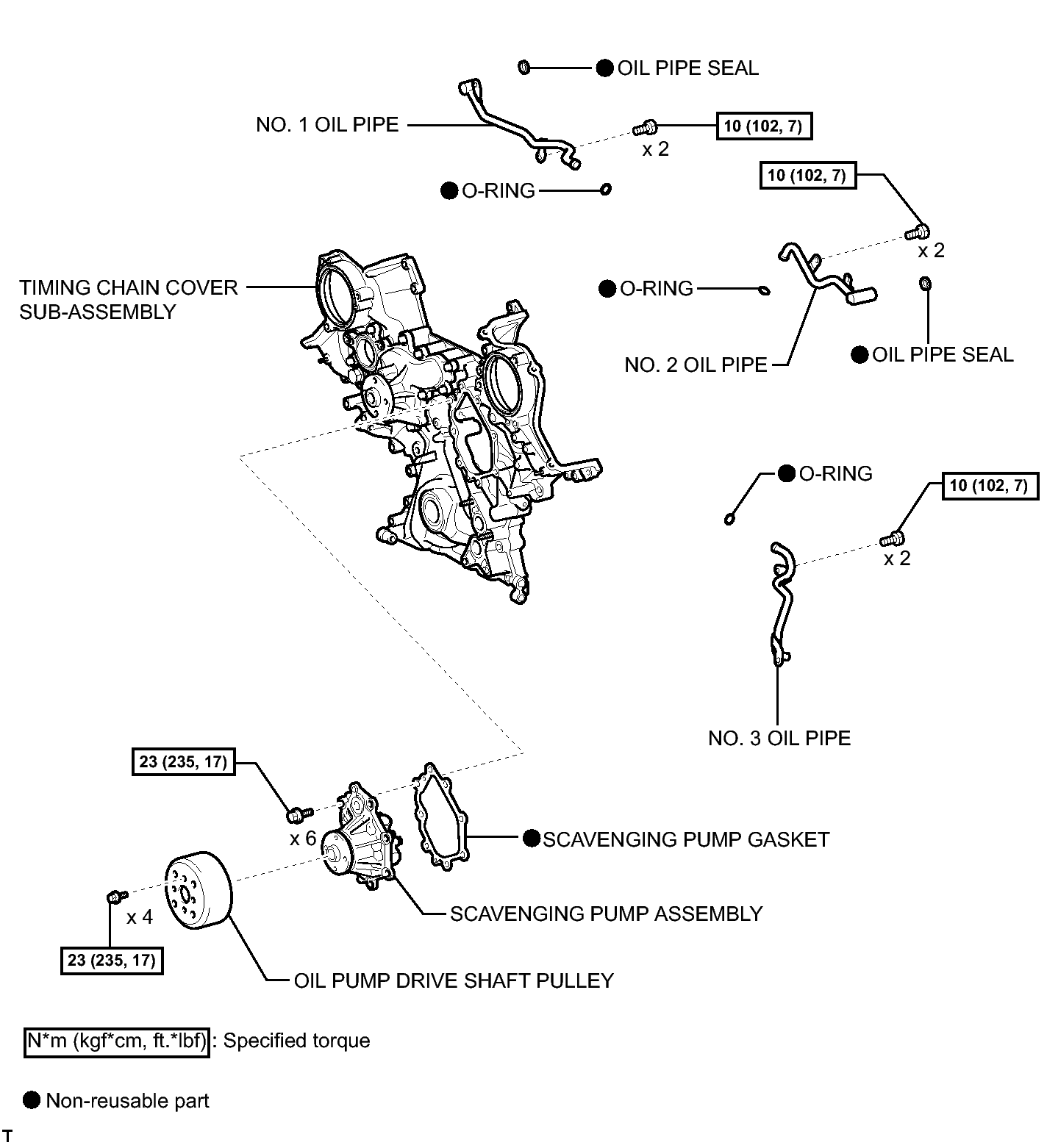

Fig 1: Identifying Scavenging Pump Replacement Components With Torque Specifications

GTY148905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
