Oil Pump: Components: Illustration

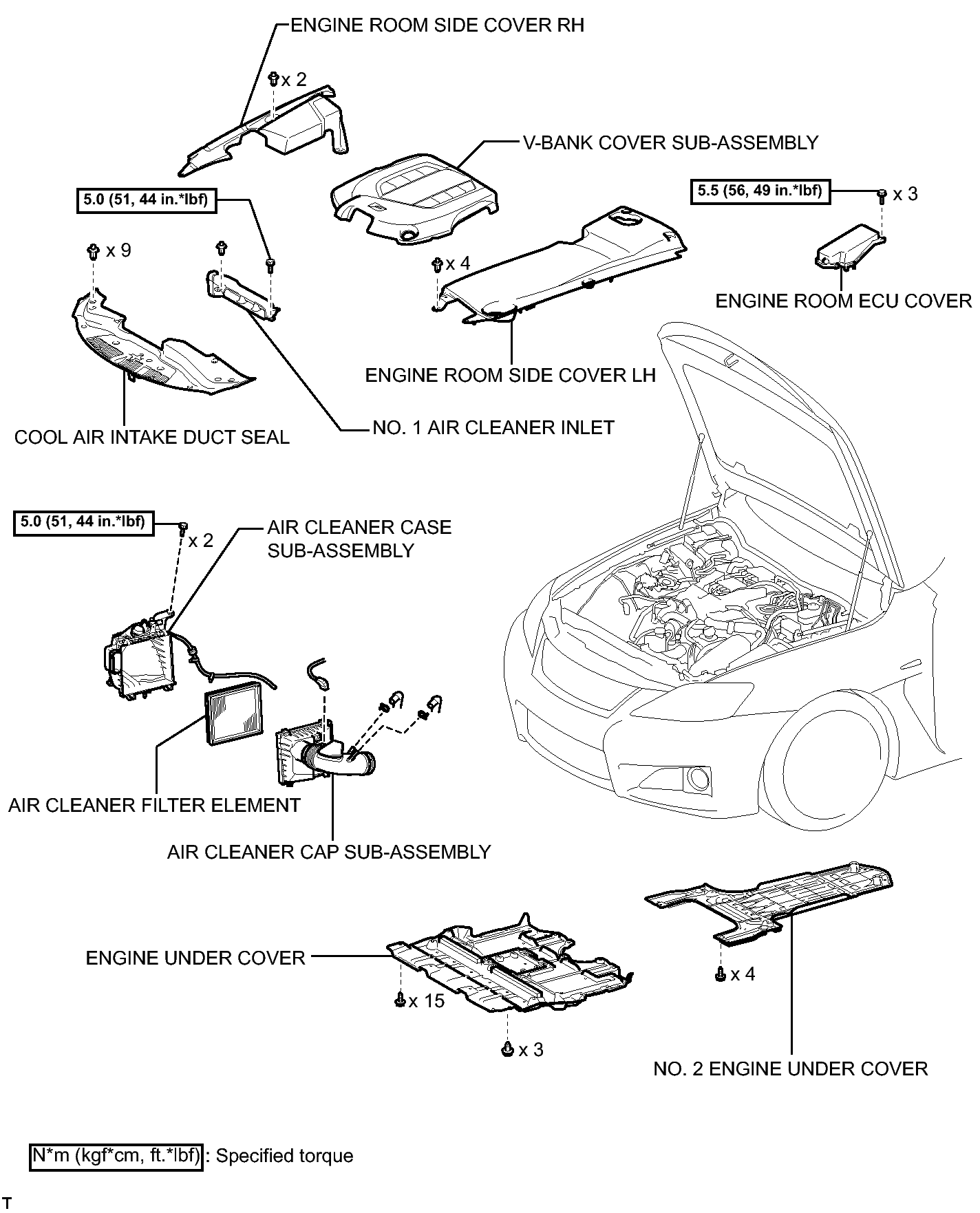

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (1 Of 11)
GTY120814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

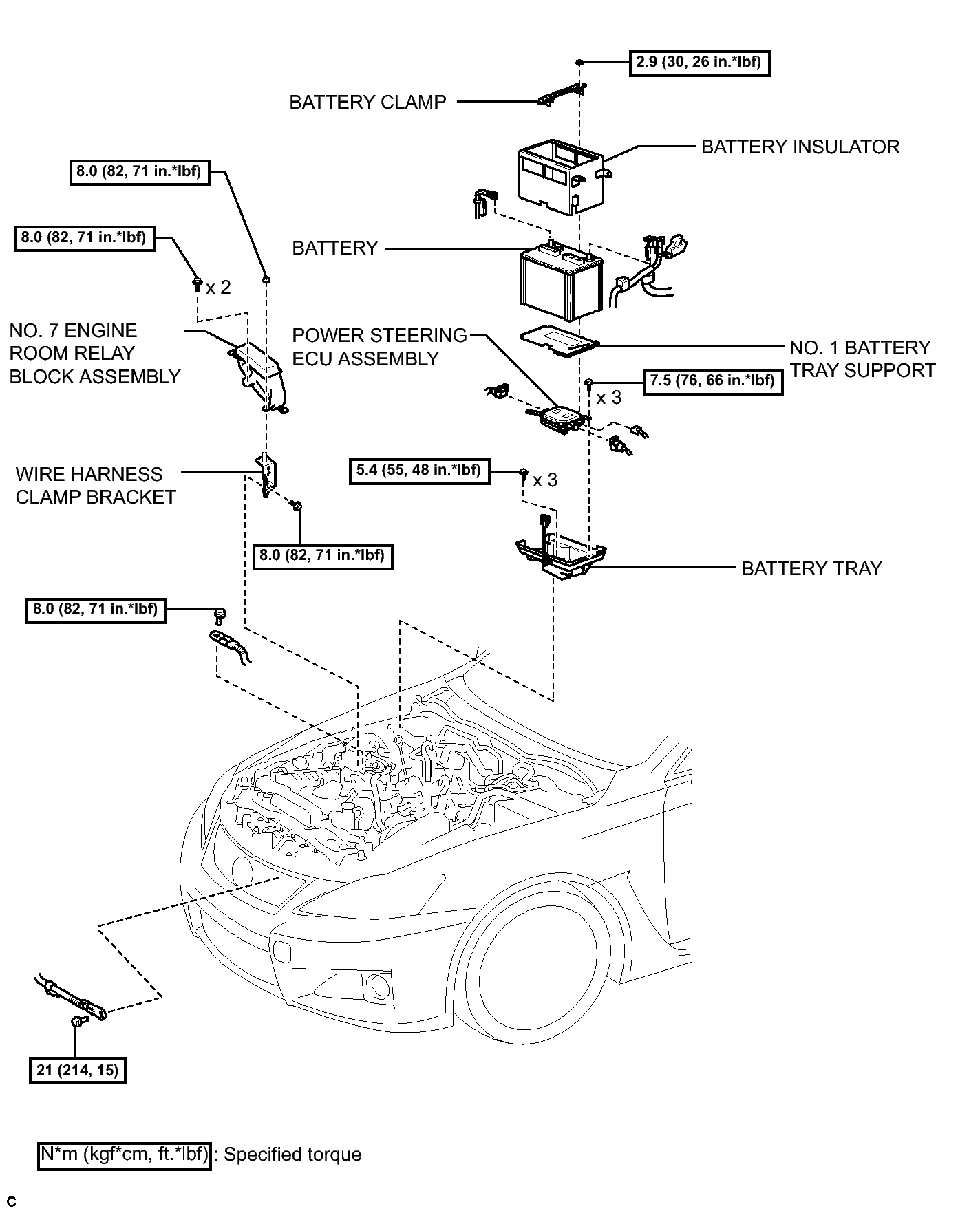

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 11)
GTY120815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

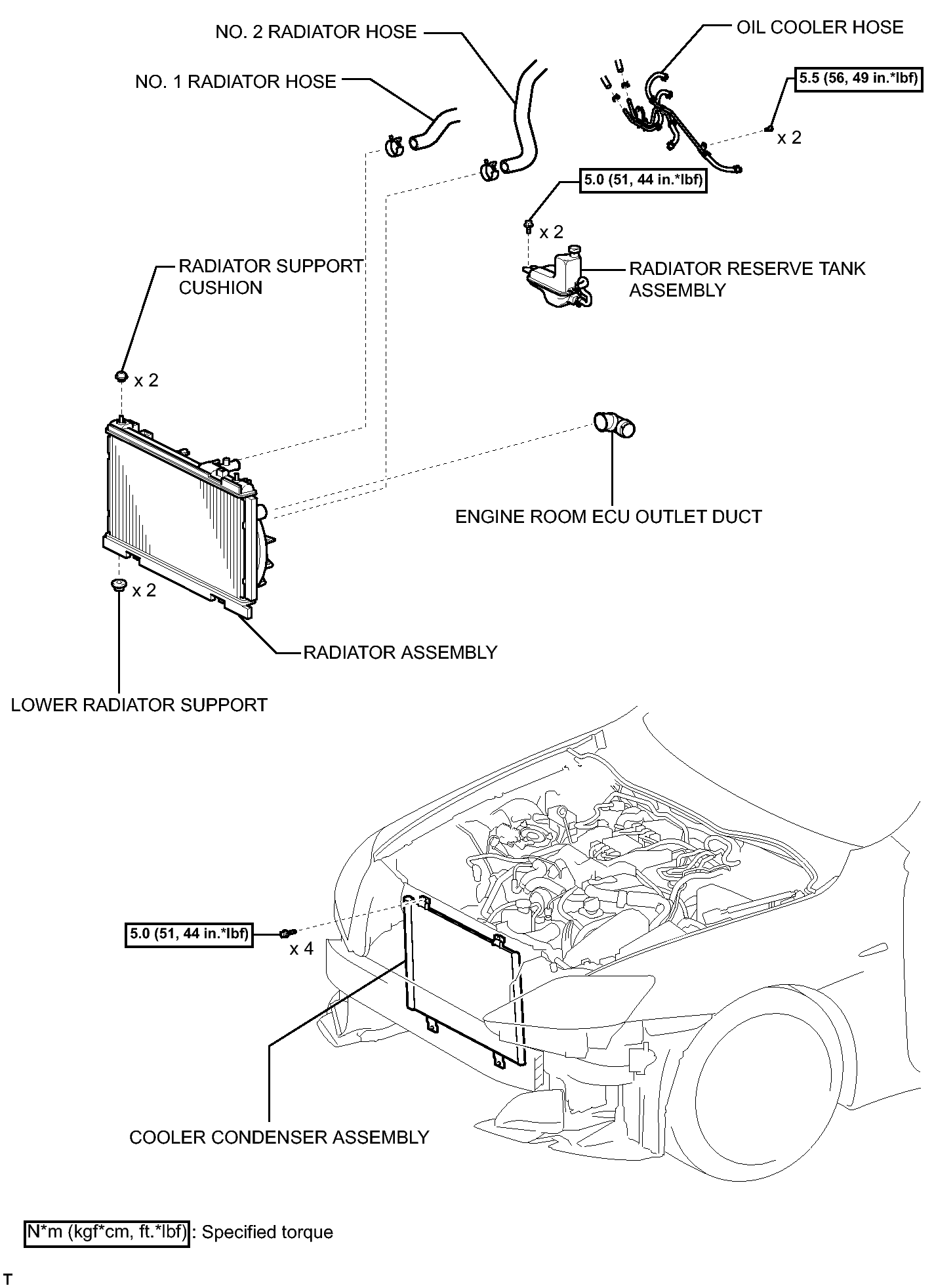

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 11)
GTY120817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

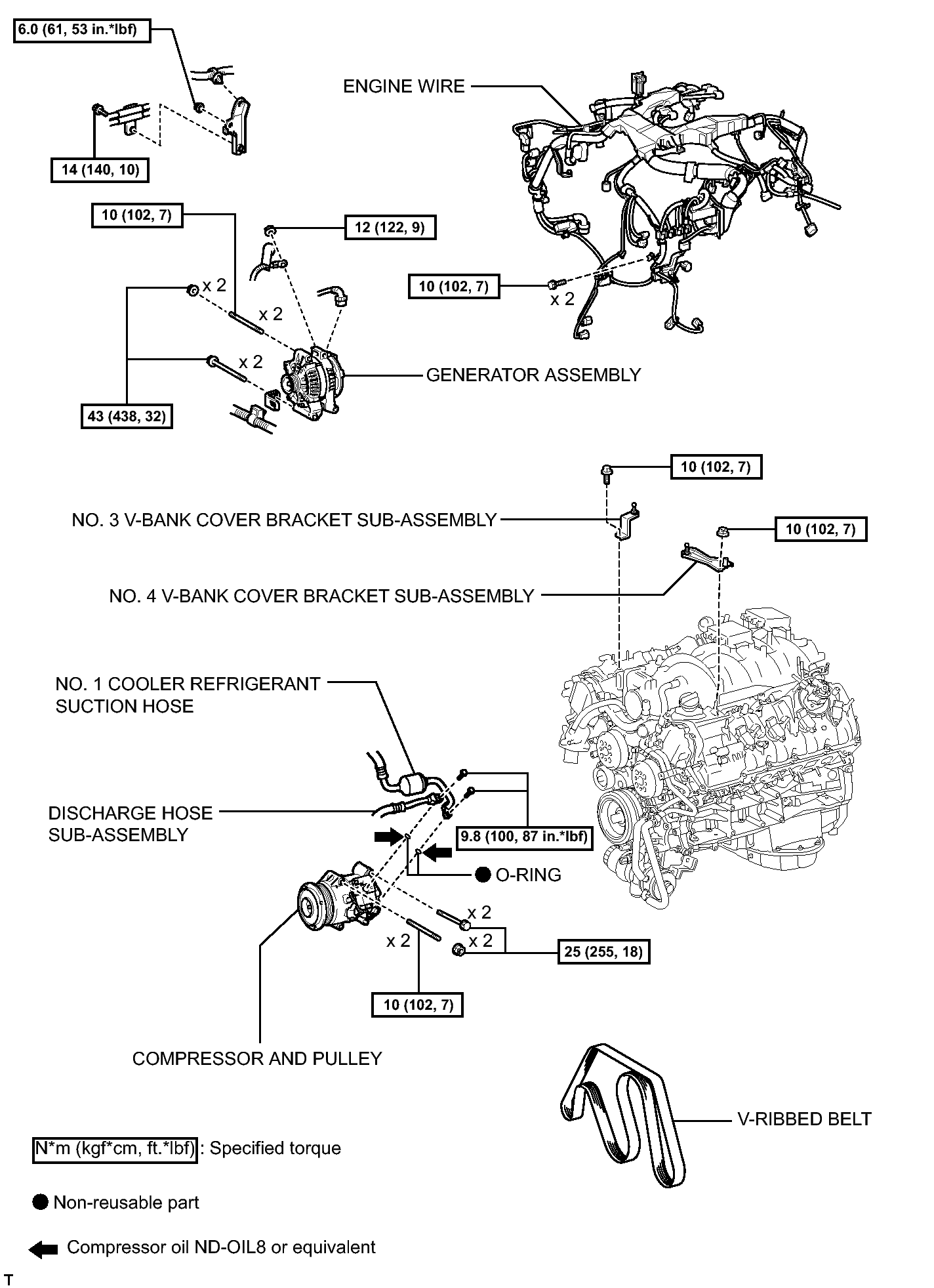

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 11)
GTY120960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

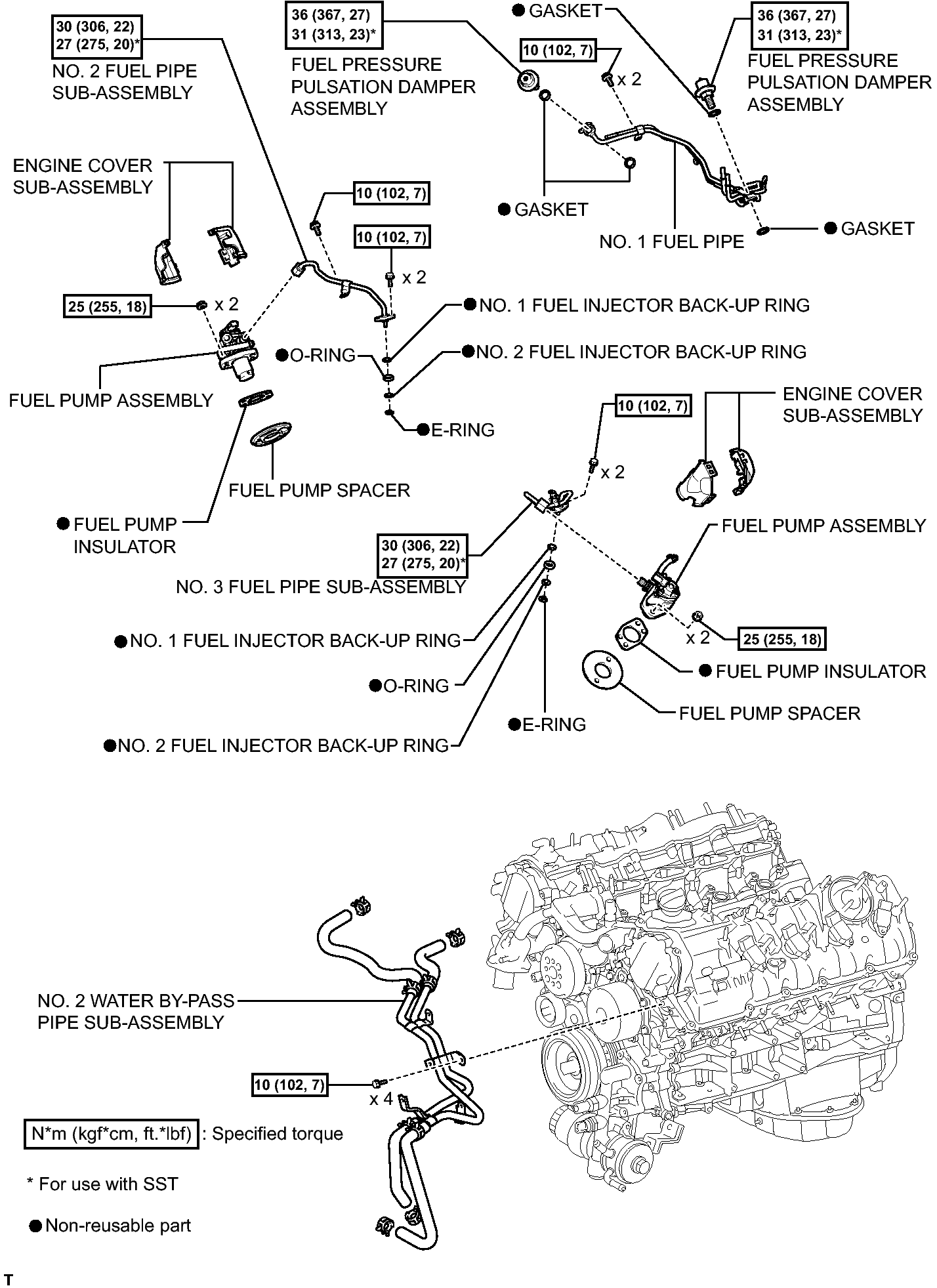

Fig 1: Oil Pump Replacement Components With Torque Specifications (5 Of 11)
GTY354246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

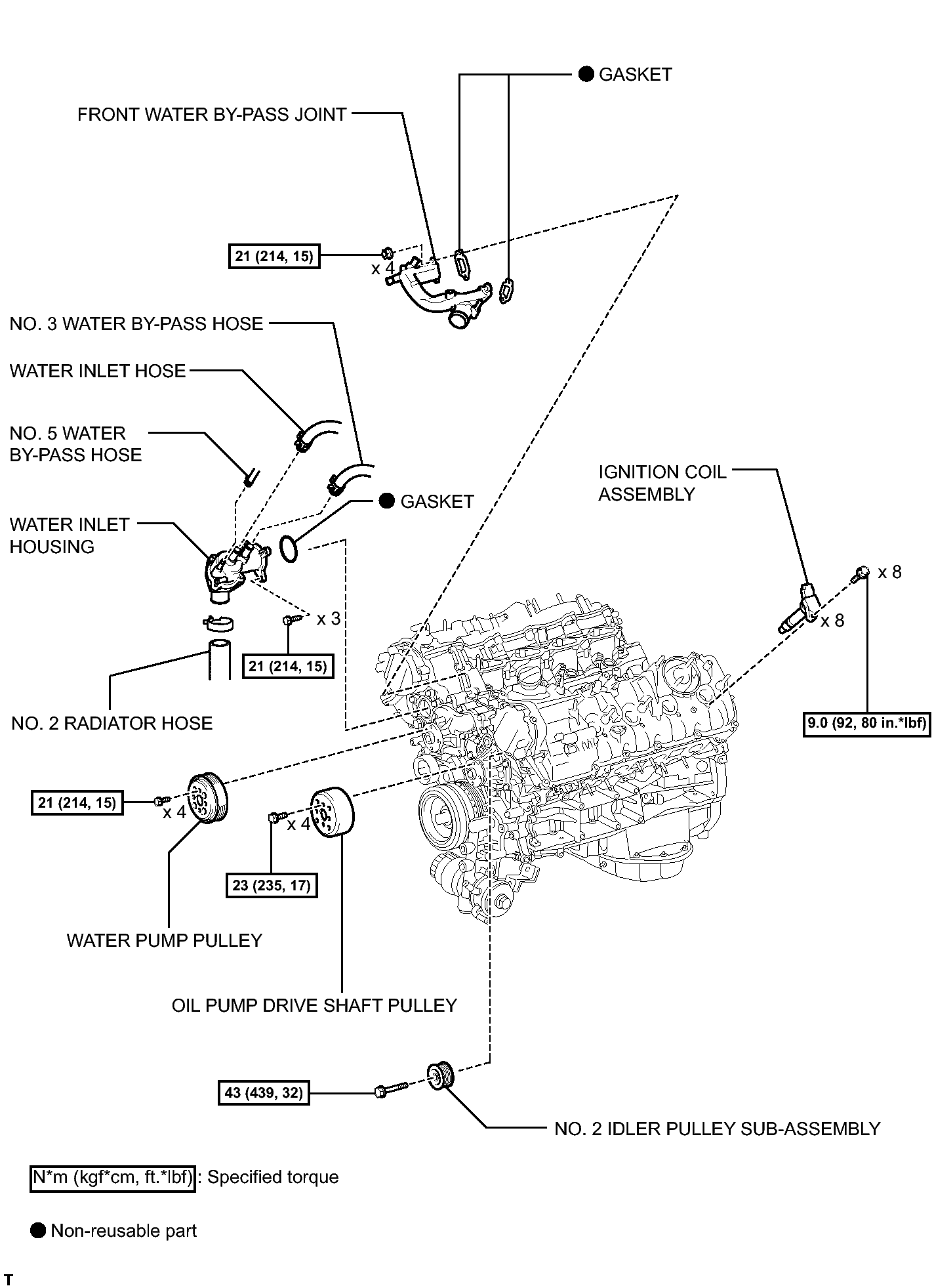

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 11)
GTY120961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

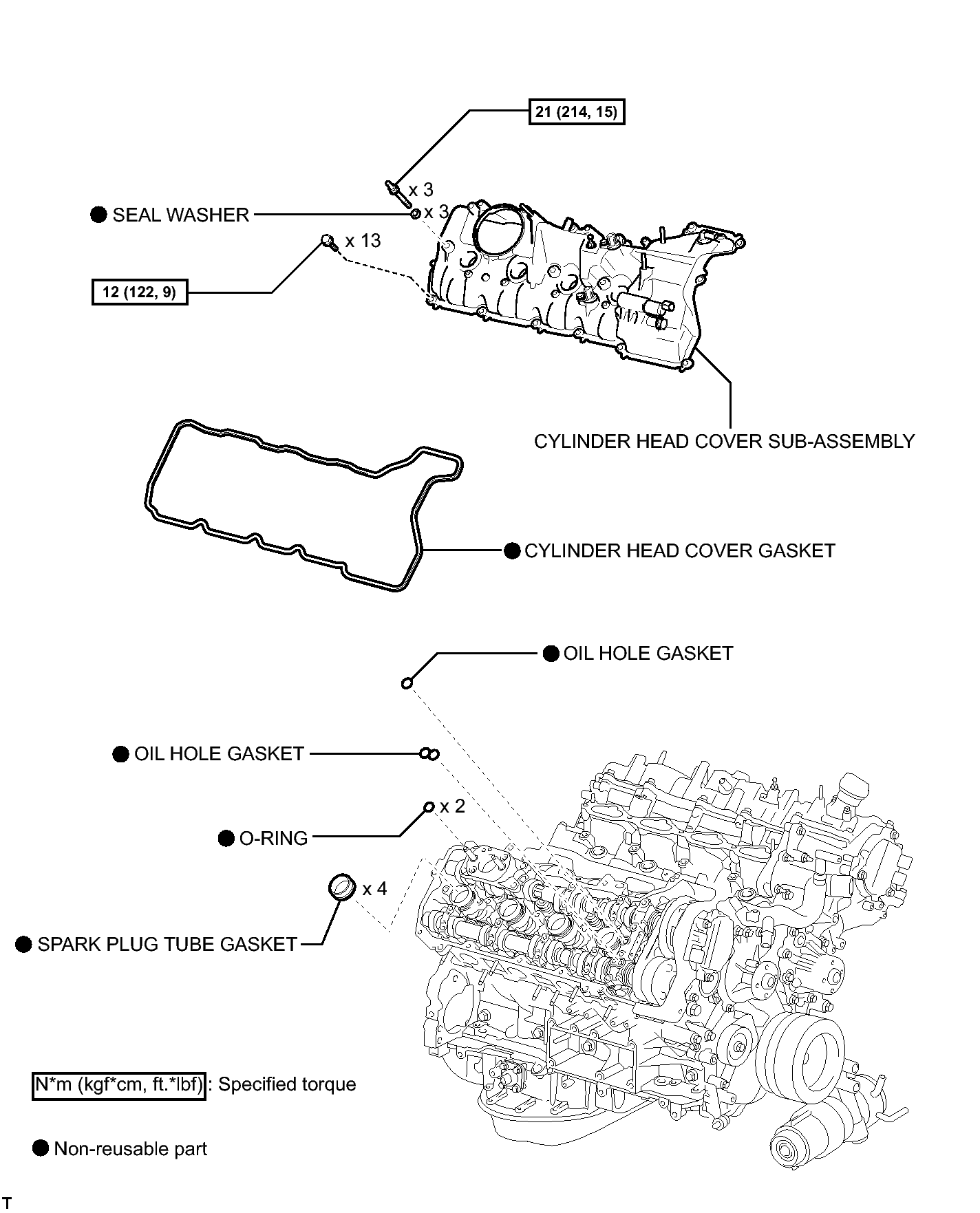

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (7 Of 11)
GTY138799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

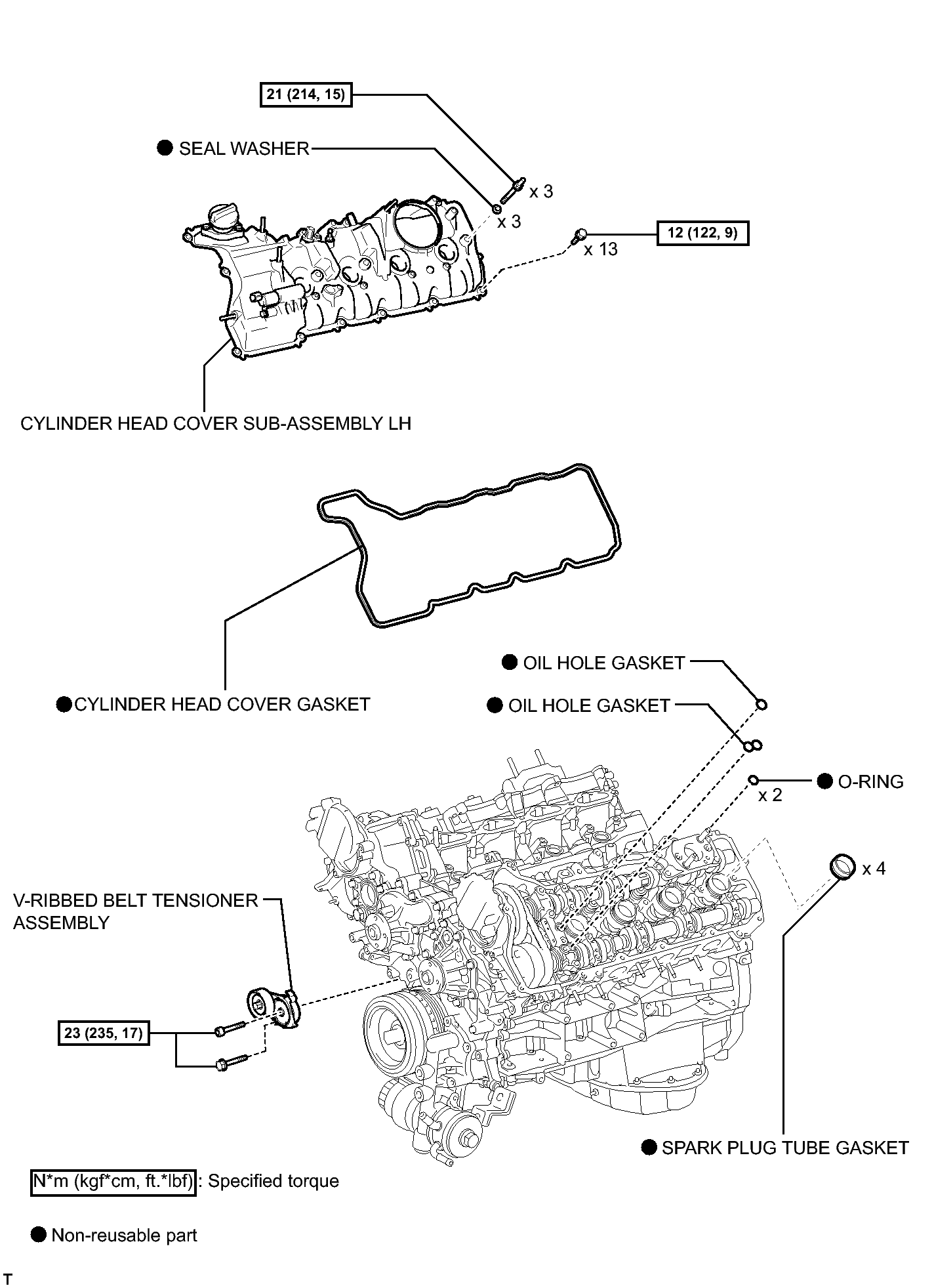

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (8 Of 11)
GTY120963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

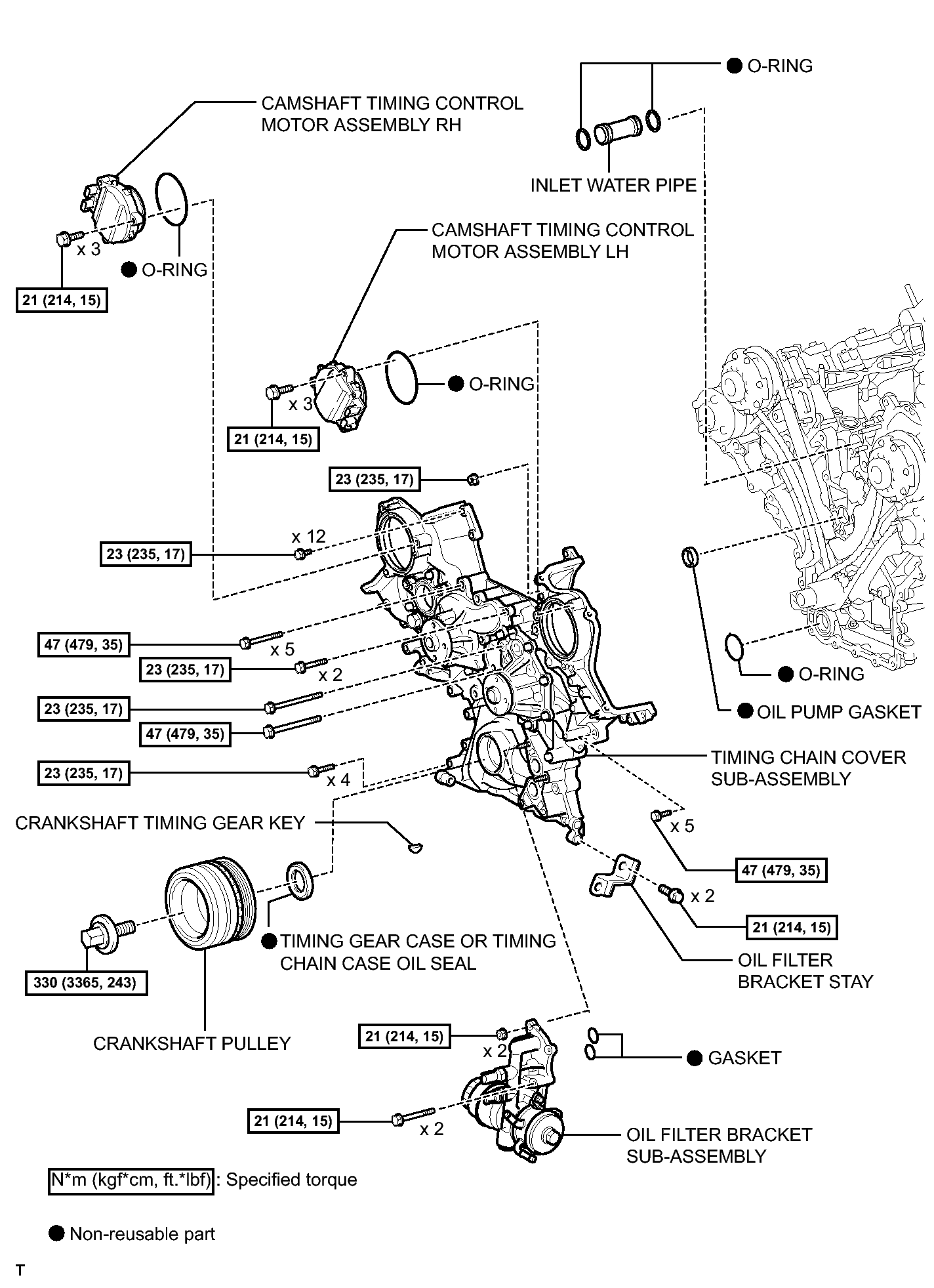

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (9 Of 11)
GTY120962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

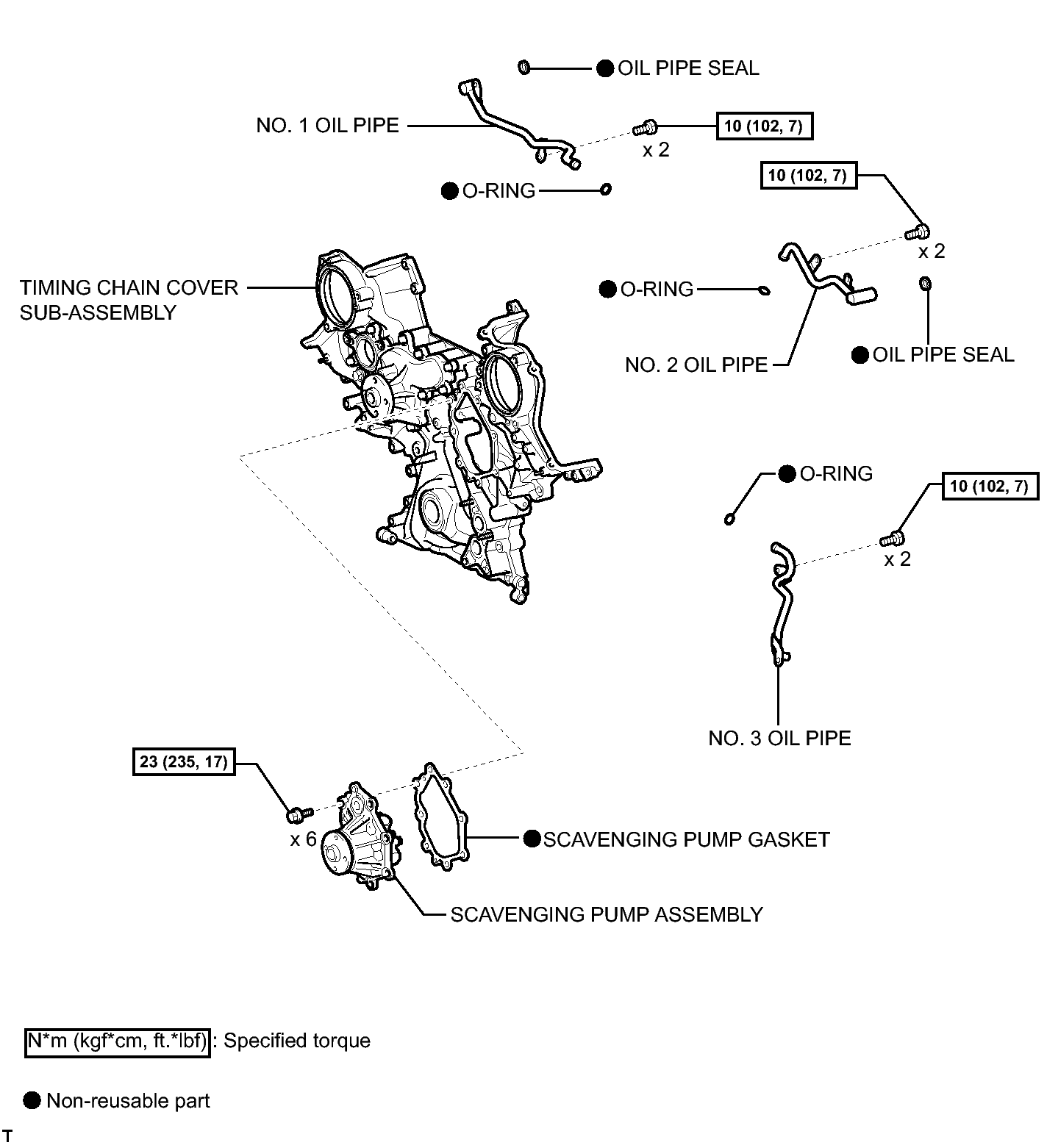

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (10 Of 11)
GTY120871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

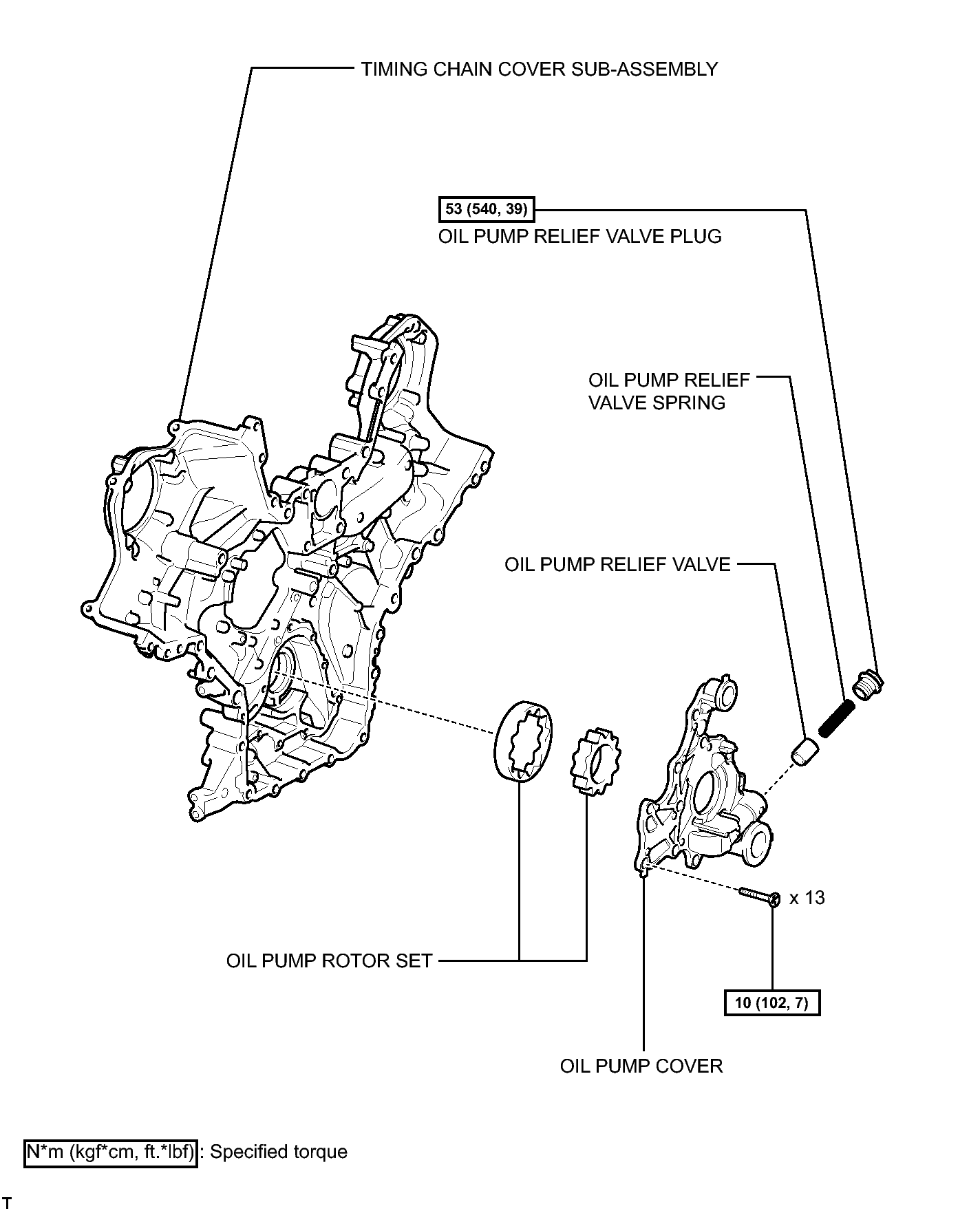

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (11 Of 11)
GTY148907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
