Oil Pressure Switch: Components: Illustration

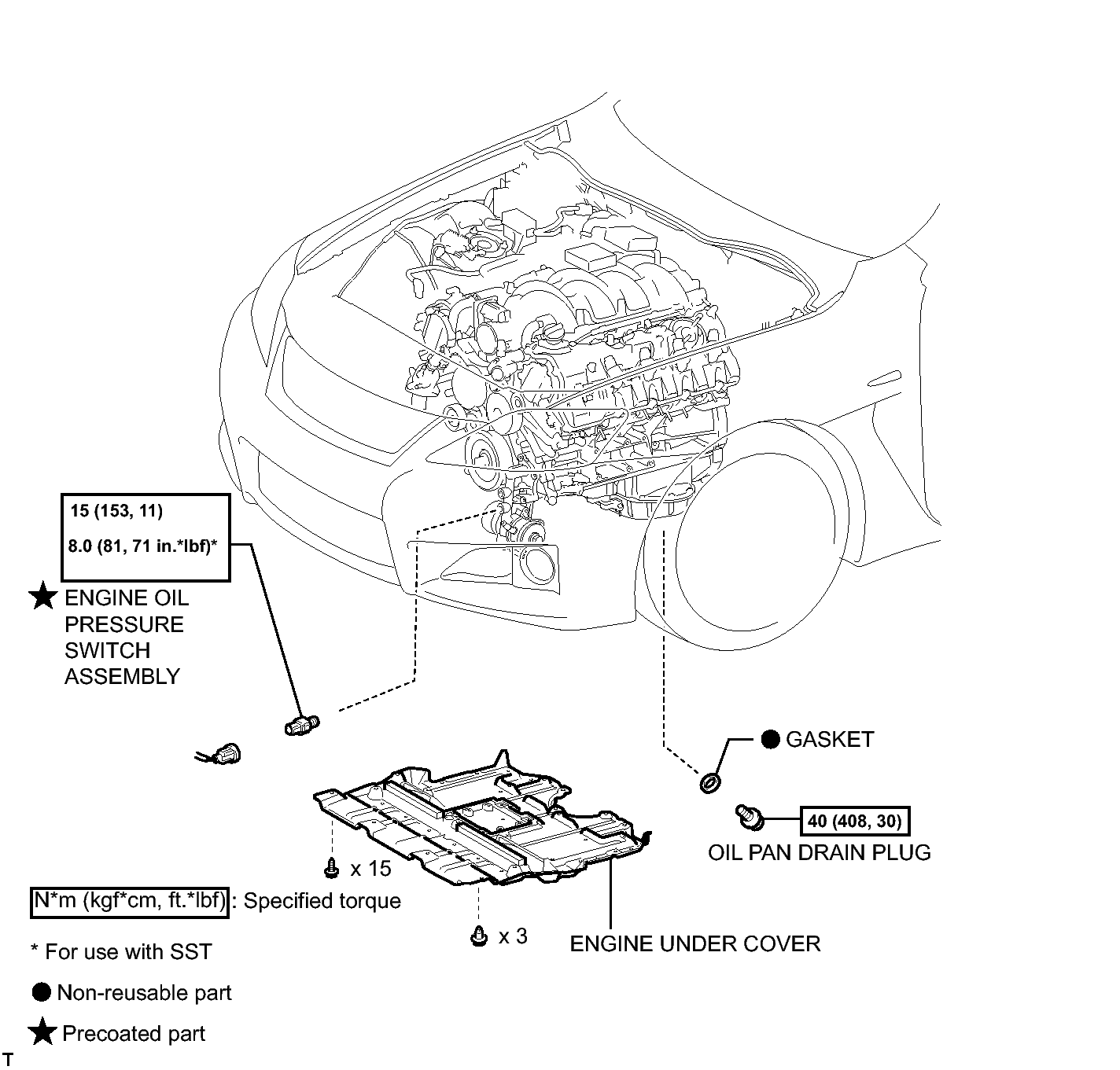

Fig 1: Identifying Oil Pressure Switch Replacement Components With Torque Specifications

GTY120820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
