Engine Oil Cooler: Components: Illustration

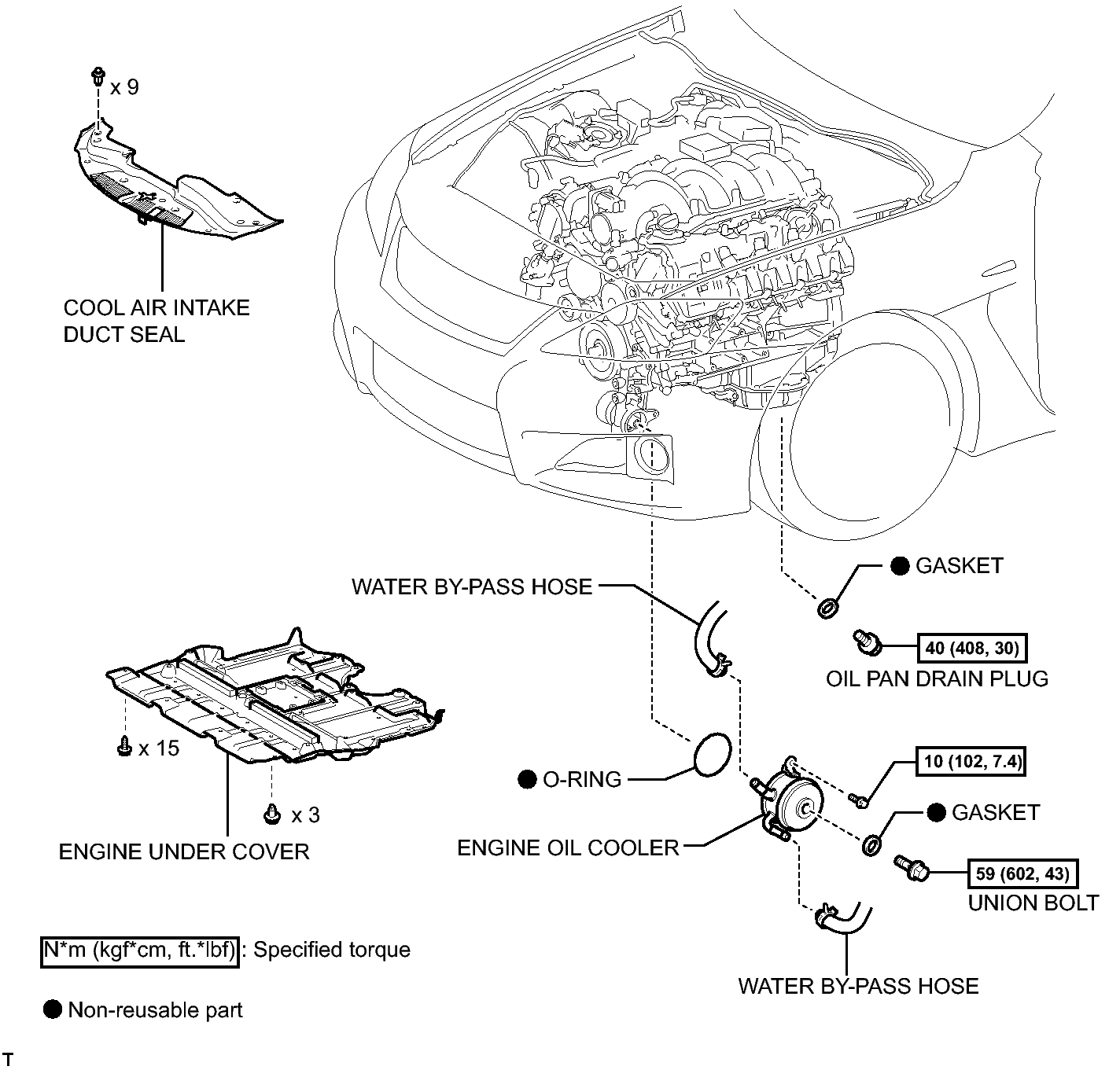

Fig 1: Identifying Engine Oil Cooler Replacement Components With Torque Specifications

GTY134233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
