Water Pump: Components: Illustration

Fig 1: Identifying Water Pump Replacement Components With Torque Specifications (1 Of 2)
GTY149010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

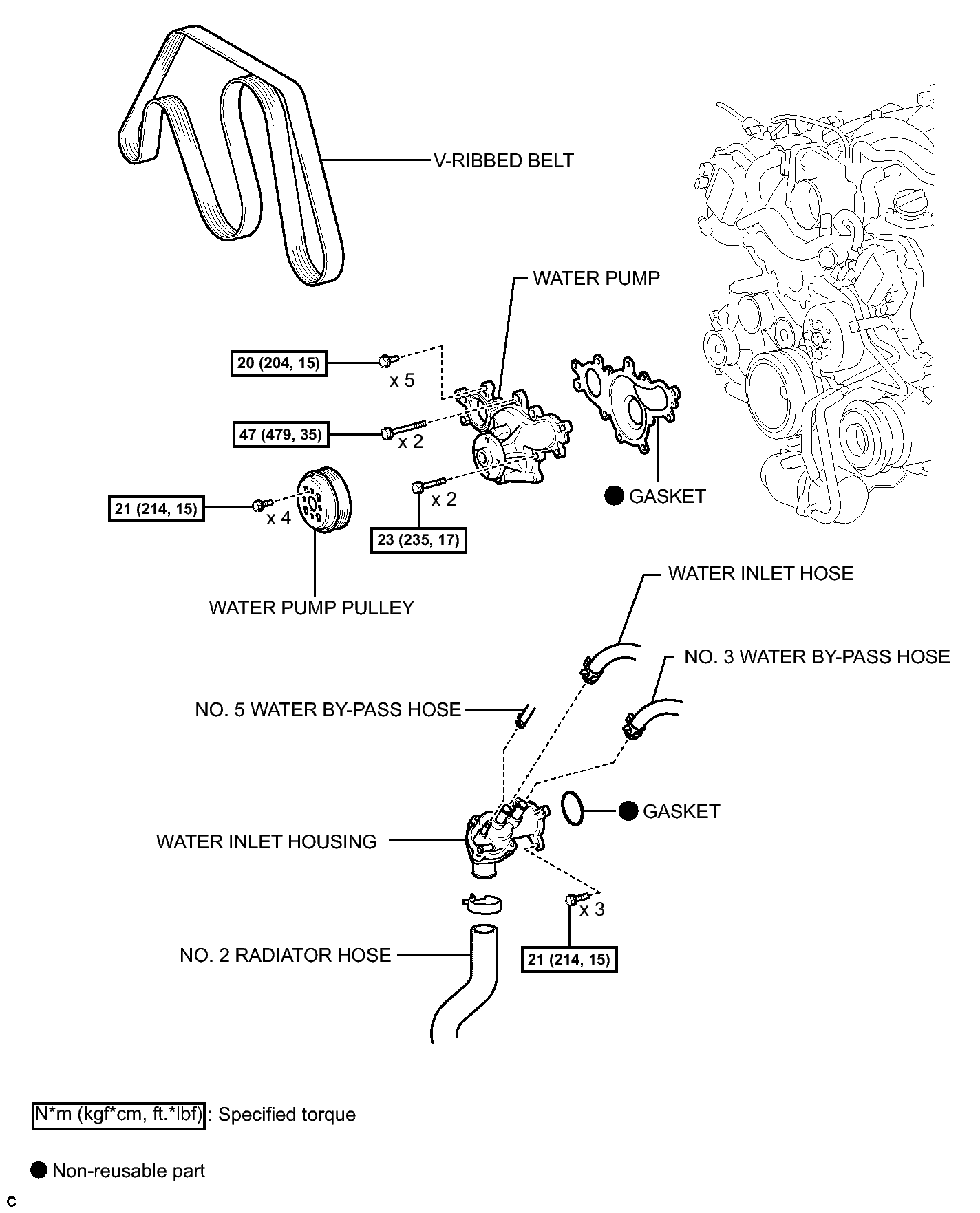

Fig 1: Identifying Water Pump Replacement Components With Torque Specifications (2 Of 2)
GTY148872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
