Lumbar Support Adjuster Assembly: Components: Illustration

Fig 1: Identifying Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY142249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

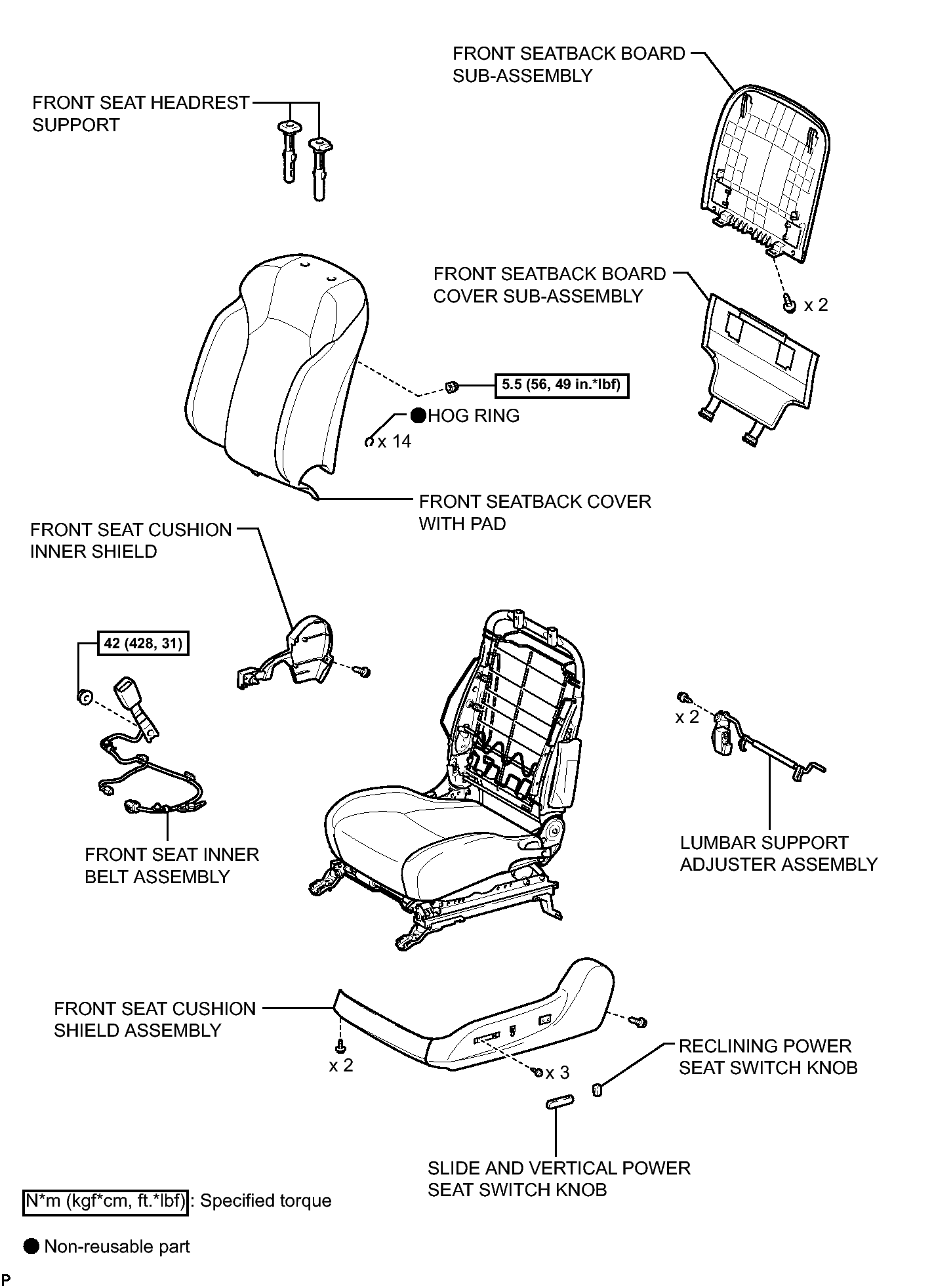

Fig 1: Identifying Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY114841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
