Navigation Ecu: Components: Illustration

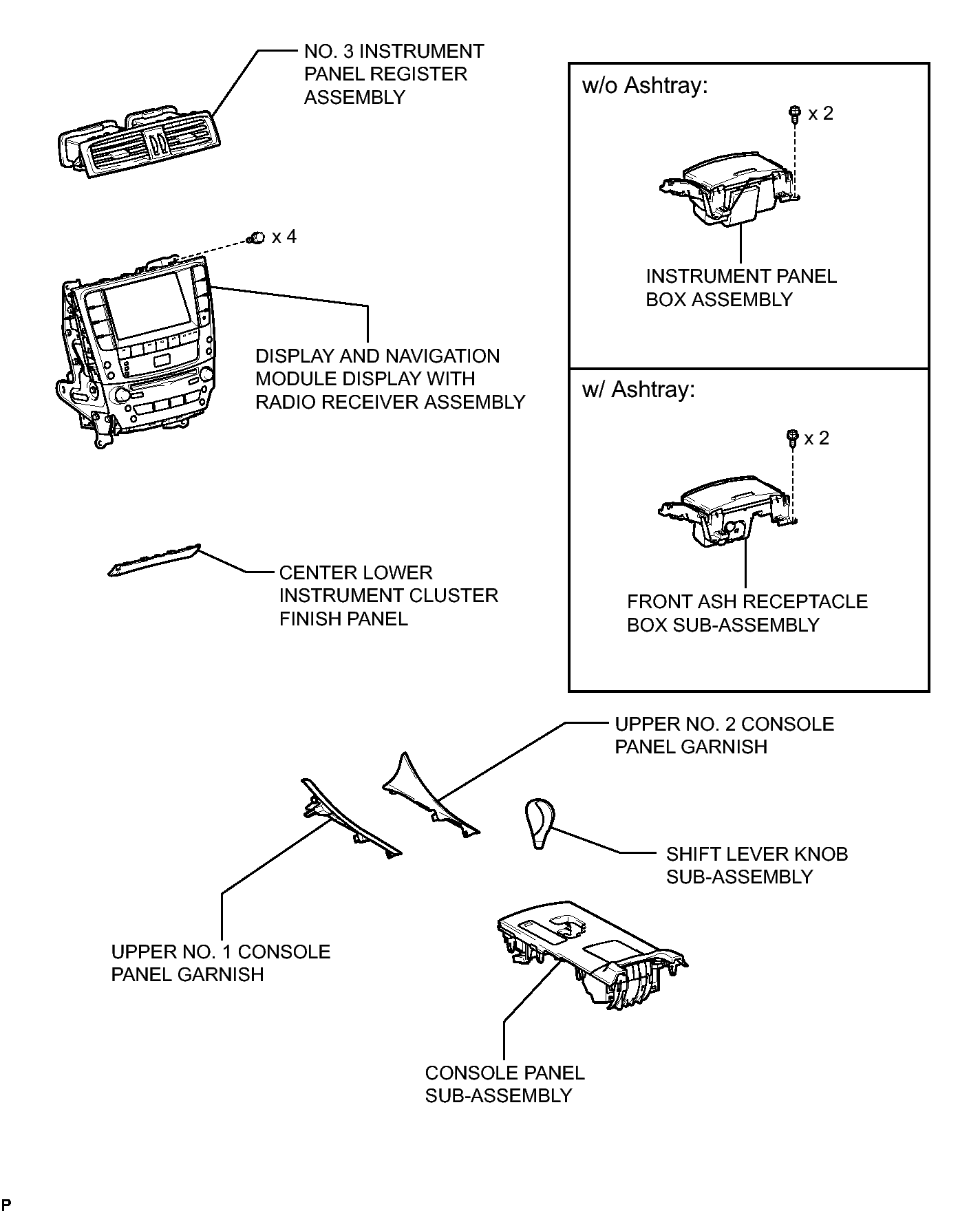

Fig 1: Identifying Navigation ECU Replacement Components (1 Of 2)
GTY350274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

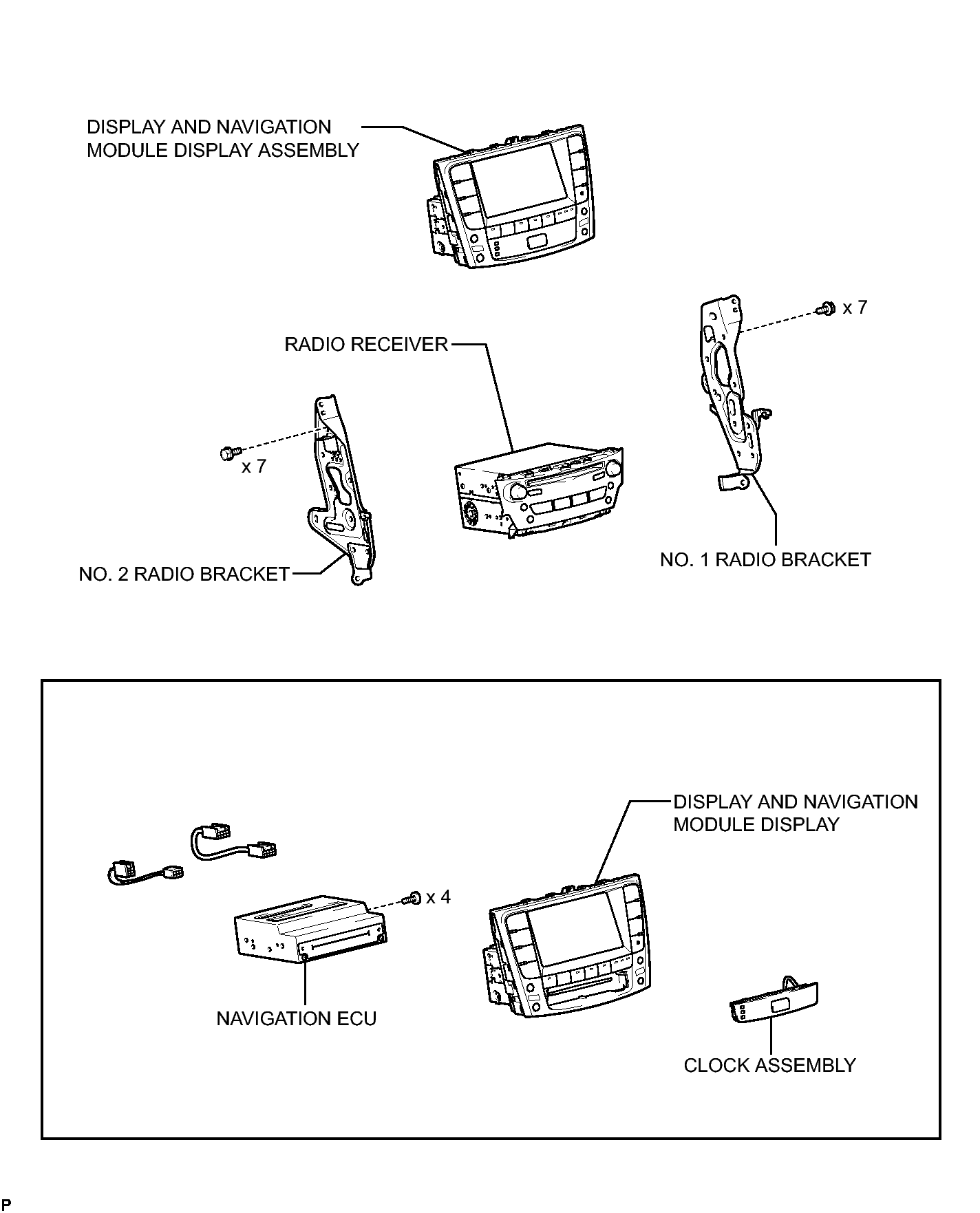

Fig 1: Identifying Navigation ECU Replacement Components (2 Of 2)
GTY281030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
