Distance Control Ecu: Components: Illustration

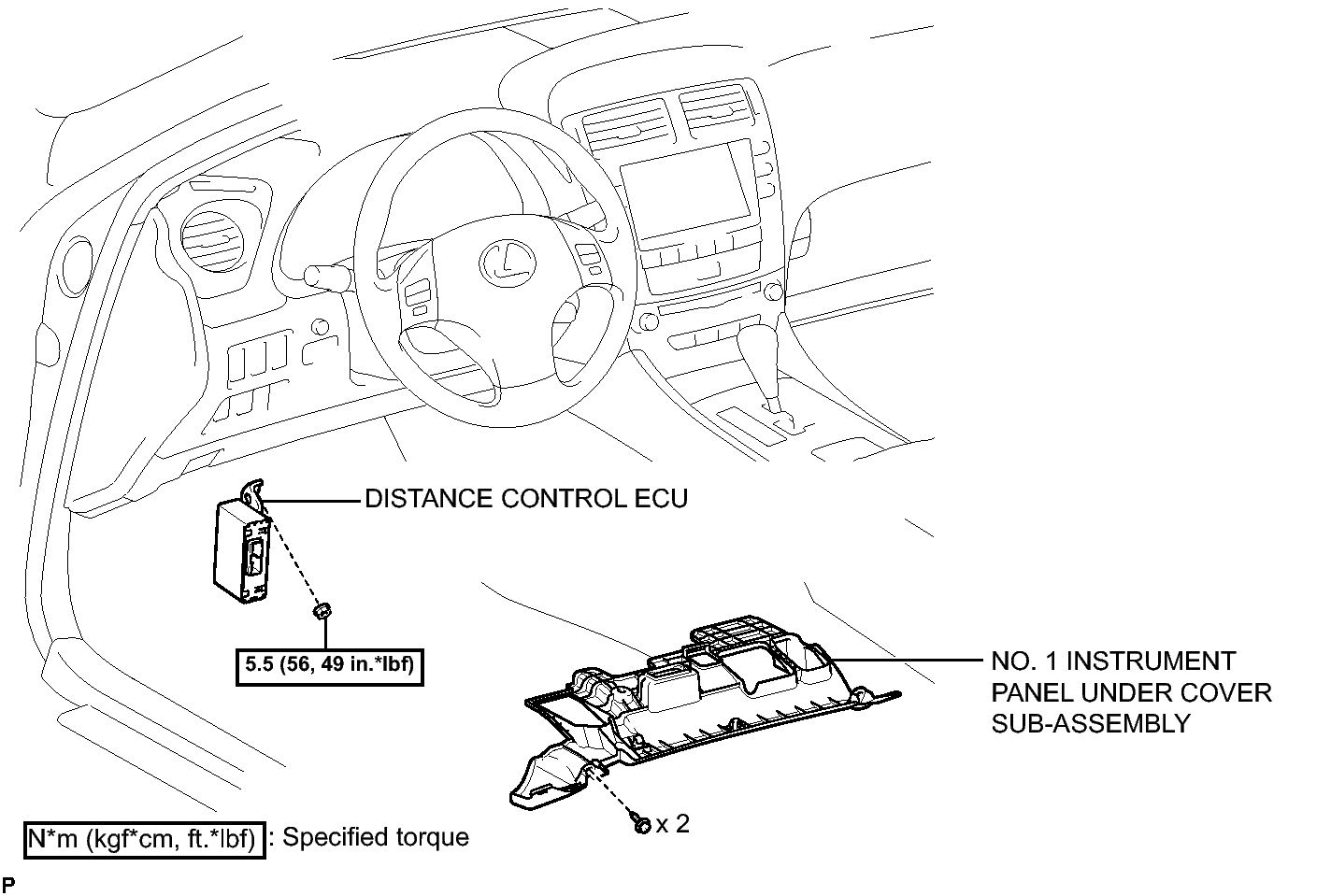

Fig 1: Identifying Distance Control ECU Replacement Components With Torque Specifications

GTY153878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
