Cruise Control Main Switch: Components: Illustration

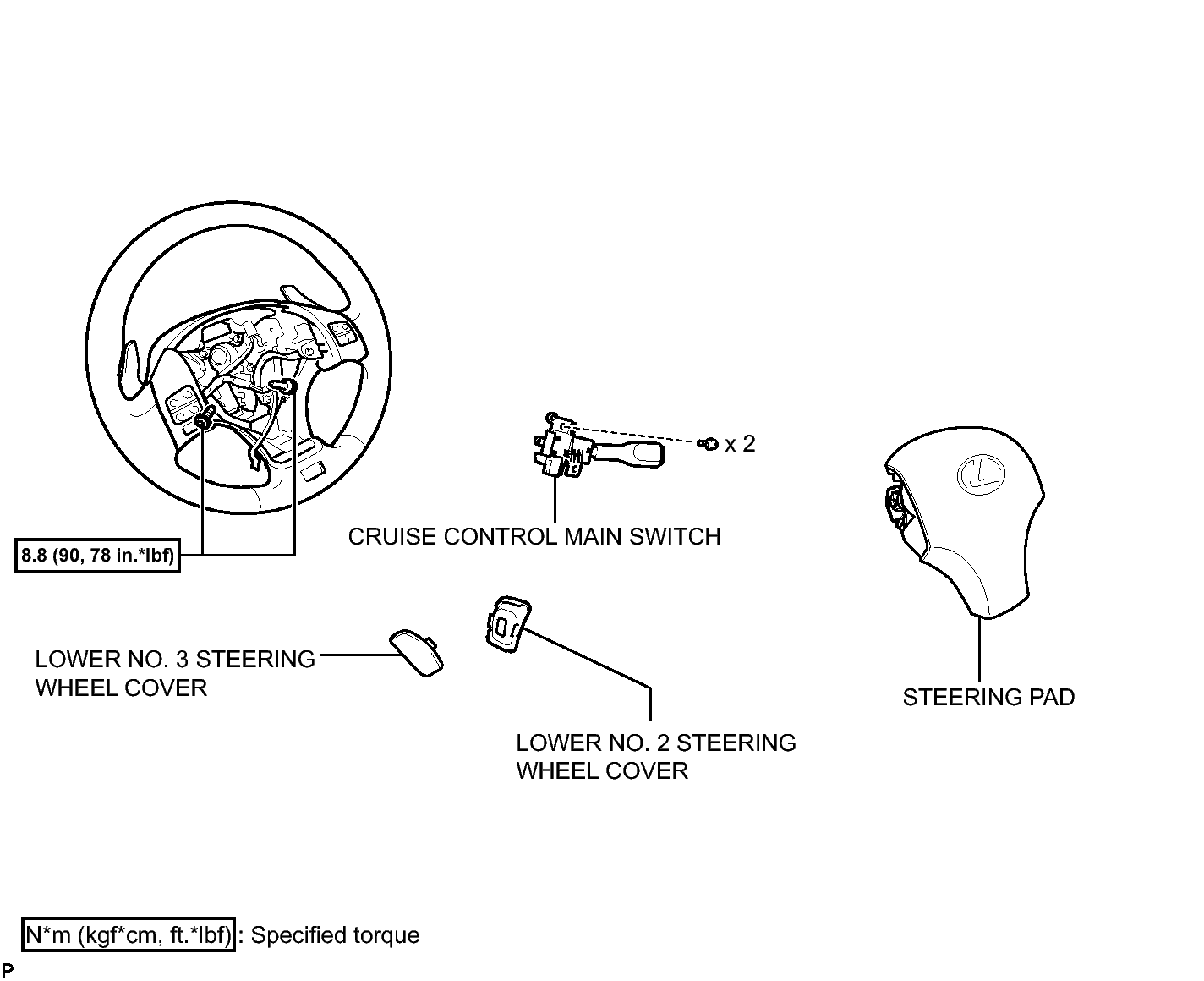

Fig 1: Identifying Cruise Control Main Switch Replacement Components With Torque Specifications

GTY154187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
