Pattern Select Switch Sport Mode Circuit: Procedure

1. Remove the steering pad. Refer to COMPONENTS .
2. Disconnect the connector of steering pad switch.
3. Measure the resistance according to the value(s) in the table below.

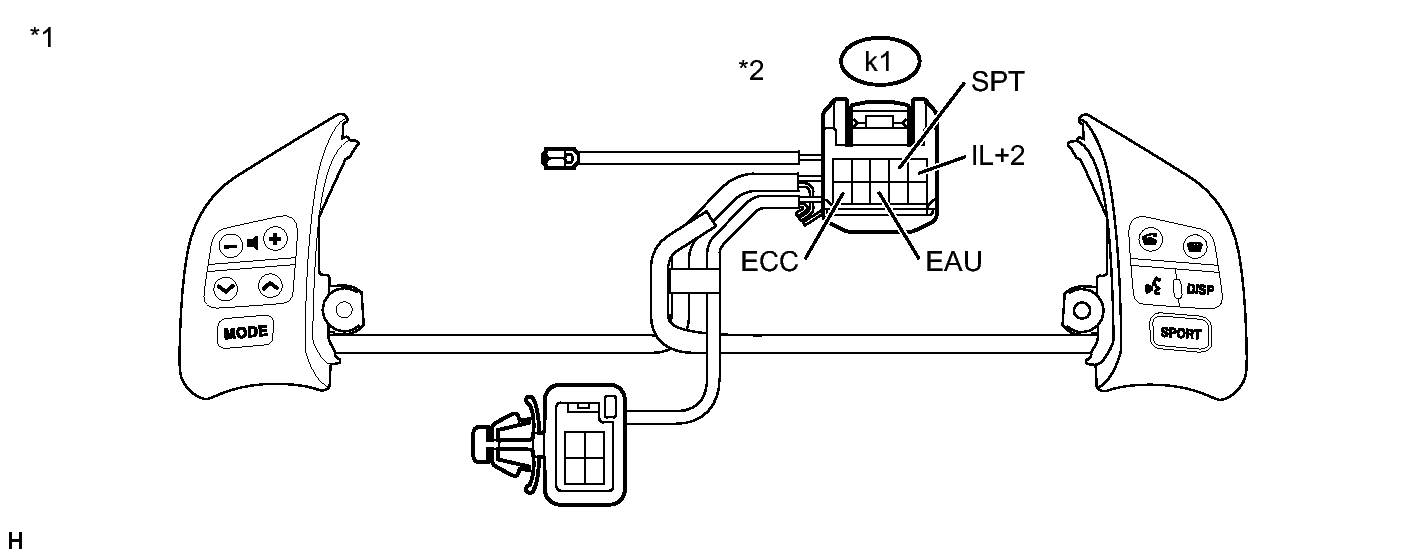

   Fig 1: Identifying Steering Pad Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   Steering Pad Switch Assembly

   *2

   Front view of wire harness connector (to Pattern Select Sport Switch)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   k1-6 (ECC) - k1-4 (SPT)	Press continuously pattern select switch (SPORT)	Below 1 Ω
   	Release pattern select switch (SPORT)	10 kΩ or higher

4. Apply battery voltage between the terminals of the switch, and check the illumination condition of the pattern select sport switch.

   HINT:

   • If a positive (+) battery lead and a negative (-) battery lead are incorrectly connected, the pattern select sport switch indicator light will not illuminate.

     If the voltage is too low, the indicator light will not illuminate.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → Terminal 5 (IL+2) Battery negative (-) → Terminal 8 (EAU)	Illuminates

   If the result is not as specified, replace the steering pad switch.

NG → See step   6

OK: Go to next step

1. Disconnect the spiral cable connector.

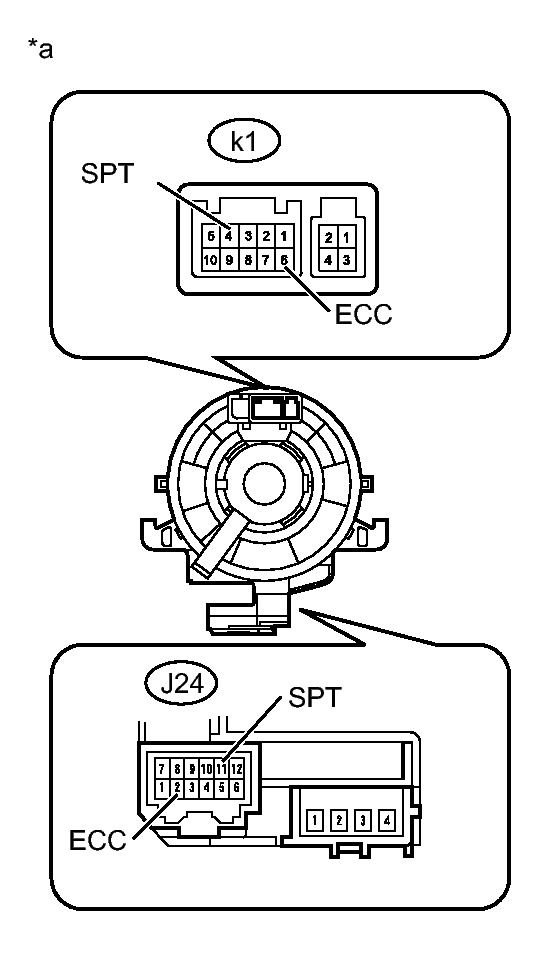

   Fig 2: Identifying Spiral Cable Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   k1-4 (SPT) - J24-11 (SPT)	Always	Below 1 Ω
   k1-6 (ECC) - J24-2 (ECC)	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Spiral Cable)

NG → REPLACE SPIRAL CABLE SUB-ASSEMBLY

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

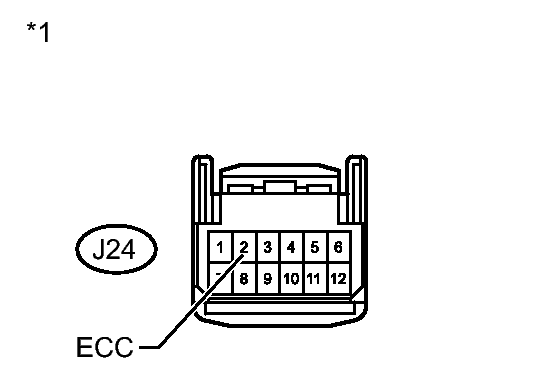

   Fig 3: Identifying Spiral Cable Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J24-2 (ECC) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Spiral Cable)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the connector of pattern select switch.
   Fig 4: Identifying Spiral Cable Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cowl side junction block (main body ECU RH) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J75-18 (PWR) - Body ground	Press continuously pattern select switch (SPORT)	Below 1 Ω
   	Release pattern select switch (SPORT)	10 kΩ or higher

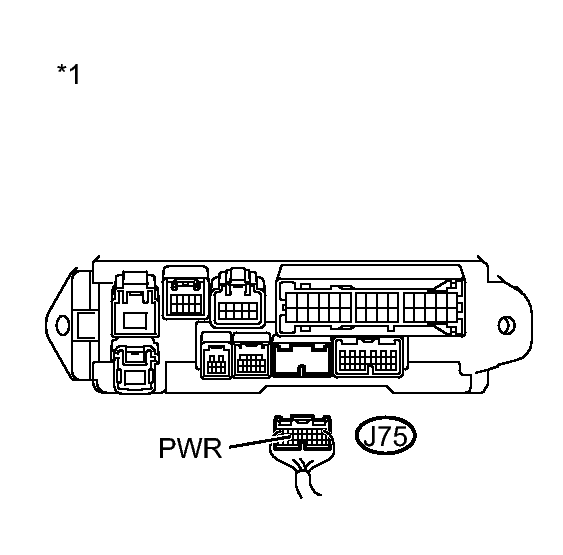

   TEXT IN ILLUSTRATION



   *1	Rear view of wire harness connector (to Main Body ECU RH)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
