Pattern Select Switch Snow Mode Circuit: Procedure

1. Disconnect the connector of pattern select switch. Refer to COMPONENTS .
2. Measure the resistance according to the value(s) in the table below.

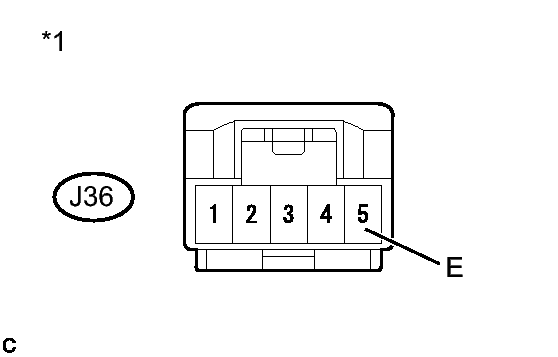

   Fig 1: Identifying J36 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J36-5 (E) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Pattern Select Switch)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

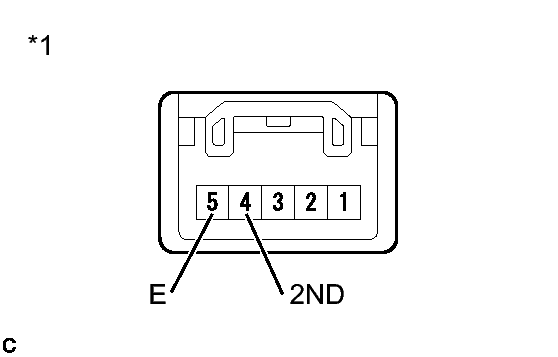

   Fig 2: Inspecting Pattern Select Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   5 (E) - 4 (2ND)	Press continuously pattern select switch (SNOW)	Below 1 Ω
   	Release pattern select switch (SNOW)	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Pattern Select Switch)

NG → See step   5

OK: Go to next step

1. Connect the connector of pattern select switch.

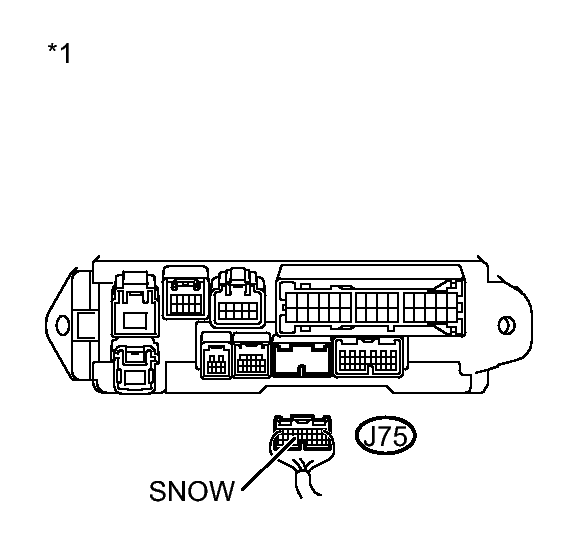

   Fig 3: Identifying J75 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cowl side junction block (main body ECU RH) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J75-17 (SNOW) - Body ground	Press continuously pattern select switch (SNOW)	Below 1 Ω
   	Release pattern select switch (SNOW)	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Rear view of wire harness connector (to Main Body ECU RH)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
