Engine Room Relay Block No. 2 Assembly And Engine Room Junction Block No. 2 Assembly - Left Engine Compartment: Notes

Left Engine Compartment (See Figure)

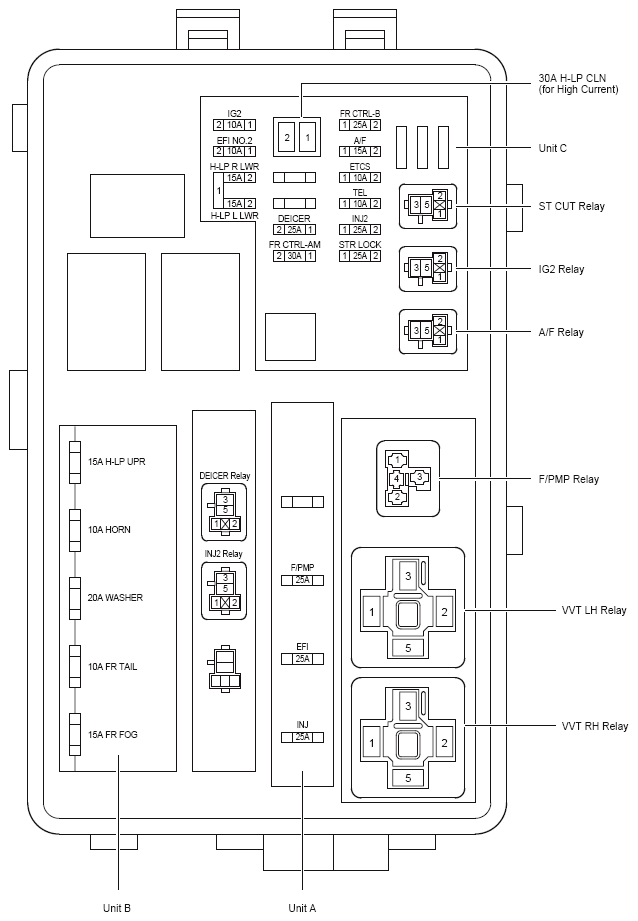

Fig 1: Engine Room R/B & J/B No. 2 Assembly Fuse & Relay Identification (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 AND D43J/B NO. 2 RELAY IDENTIFICATION

ENGINE ROOM R/B & J/B NO. 2 FUSE IDENTIFICATION LEGEND

Fuse		System
10A	EFI No. 2	Electronically Controlled Transmission and A/T Indicator and Engine Control
10A	ETCS	Cruise Control
		Dynamic Radar Cruise Control
		Electronically Controlled Transmission and A/T Indicator and Engine Control
10A	FR TAIL	Automatic Light Control and Light Auto Turn Off System
		Headlight
		Taillight
10A	HORN	Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock, Theft Deterrent and Wireless Door Lock Control
10A	HORN	Horn
10A	IG2	Electronically Controlled Transmission and A/T Indicator and Engine Control
10A	IG2	Ignition
10A	TEL	LEXUS ENFORM or Safety Connect
15A	A/F	Electronically Controlled Transmission and A/T Indicator and Engine Control
15A	FR FOG	Front Fog Light
15A	H-LP L LWR	Headlight
15A	H-LP R LWR	Headlight
15A	H-LP UPR	Headlight
20A	WASHER	Front Wiper and Washer
20A	WASHER	Headlight Cleaner
25A	DEICER	Front Window Deicer
25A	EFI	Cruise Control
		Dynamic Radar Cruise Control
		Electronically Controlled Transmission and A/T Indicator and Engine Control
25A	F/PMP	Electronically Controlled Transmission and A/T Indicator and Engine Control
25A	INJ	Electronically Controlled Transmission and A/T Indicator and Engine Control
25A	INJ2	Electronically Controlled Transmission and A/T Indicator and Engine Control
25A	STR LOCK	Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock, Theft Deterrent and Wireless Door Lock Control
30A	H-LP CLN	Headlight Cleaner

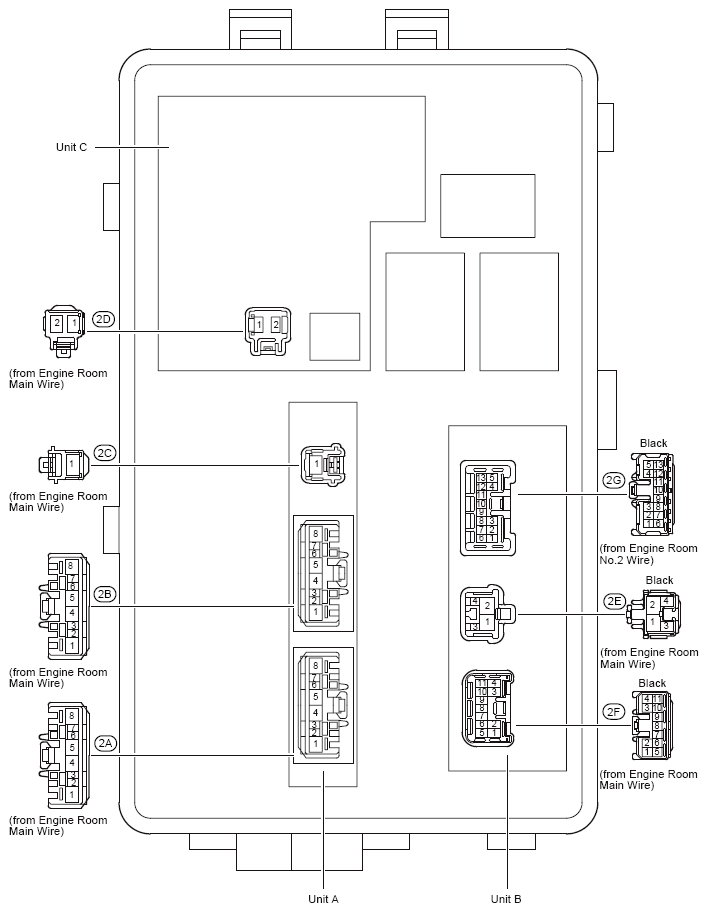

Fig 2: Engine Room R/B No. 2 Assembly And Engine Room J/B No. 2 Assembly (2 Of 2)
