Engine Room Relay Block No. 1 Assembly And Engine Room Junction Block No. 1 Assembly - Right Engine Compartment: Notes

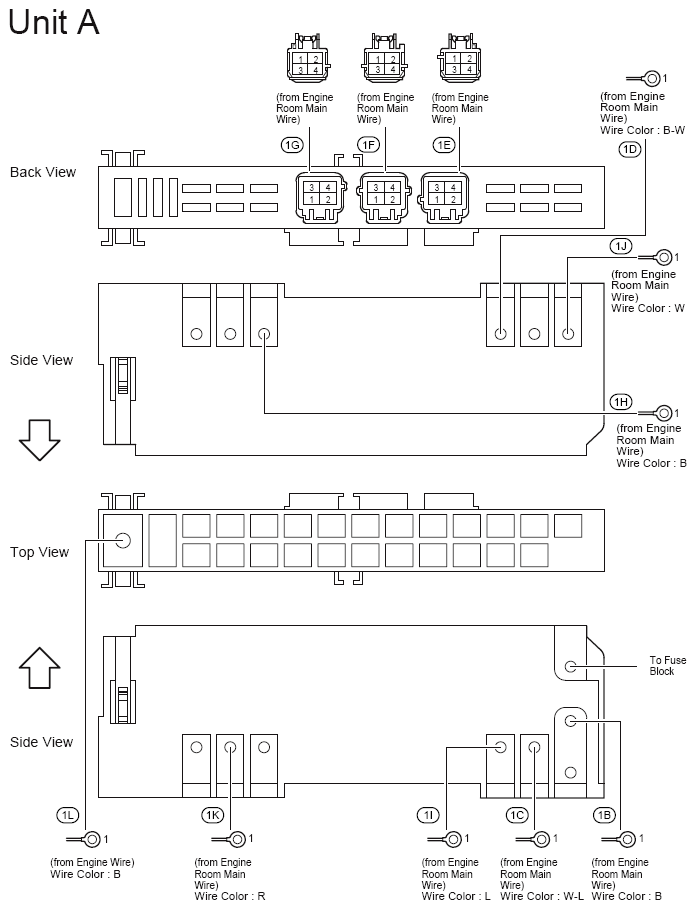

Right Engine Compartment (See Figure)

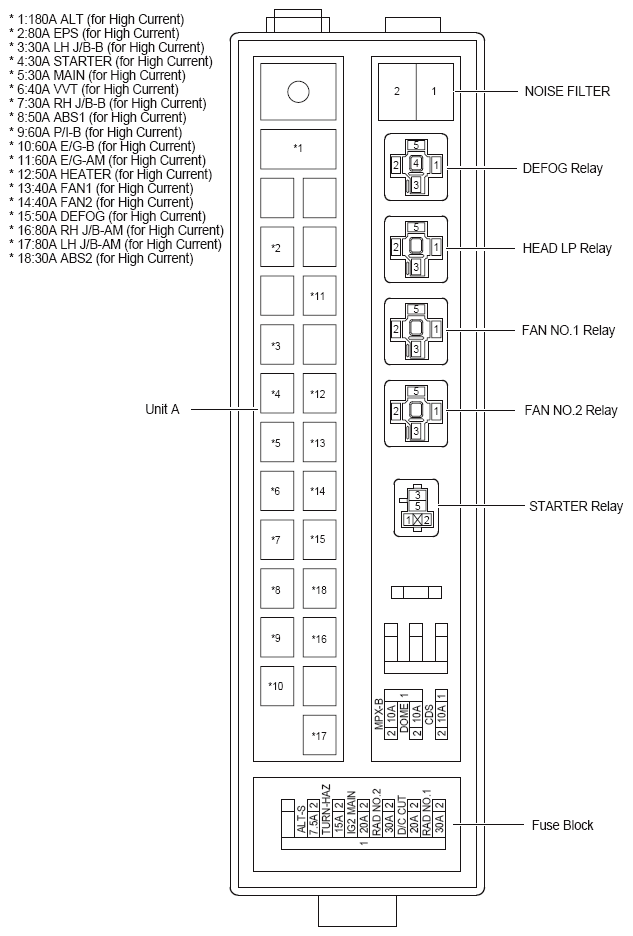

ENGINE ROOM R/B NO. 1 AND J/B NO. 1 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Defog Relay |
| Head LP Relay |
| Fan No. 1 Relay |
| Fan No. 2 Relay |
| Starter Relay |
ENGINE ROOM R/B & J/B NO. 1 FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 10A | DOME | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock, Theft Deterrent and Wireless Door Lock Control | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Garage Door Opener | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Illumination | ||
| Interior Light | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | MPX-B | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back-Up Light | ||
| Charging | ||
| Clock | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock, Theft Deterrent and Wireless Door Lock Control | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Horn | ||
| Illumination | ||
| Interior Light | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| 15A | TURN-HAZ | Turn Signal and Hazard Warning Light |
| 30A | ABS2 | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management | ||
| 30A | MAIN | Automatic Light Control and Light Auto Turn Off System |
| Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock, Theft Deterrent and Wireless Door Lock Control | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| 30A | RAD No. 1 | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) | ||
| 30A | RAD No. 2 | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) | ||
| 30A | STARTER | Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock, Theft Deterrent and Wireless Door Lock Control |
| 40A | FAN1 | Cooling Fan |
| 40A | FAN2 | Cooling Fan |
| 40A | VVT | Electronically Controlled Transmission and A/T Indicator and Engine Control |
| 50A | ABS1 | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management | ||
| 50A | DEFOG | Mirror Heater and Rear Window Defogger |
| 50A | HEATER | Air Conditioning |
| 80A | EPS | EPS |
| 80A | LH J/B-AM | Illumination |
| Taillight | ||
| 180A | ALT | Charging |
