Front Passenger Side ECU Power Source Circuit: Wiring Diagram

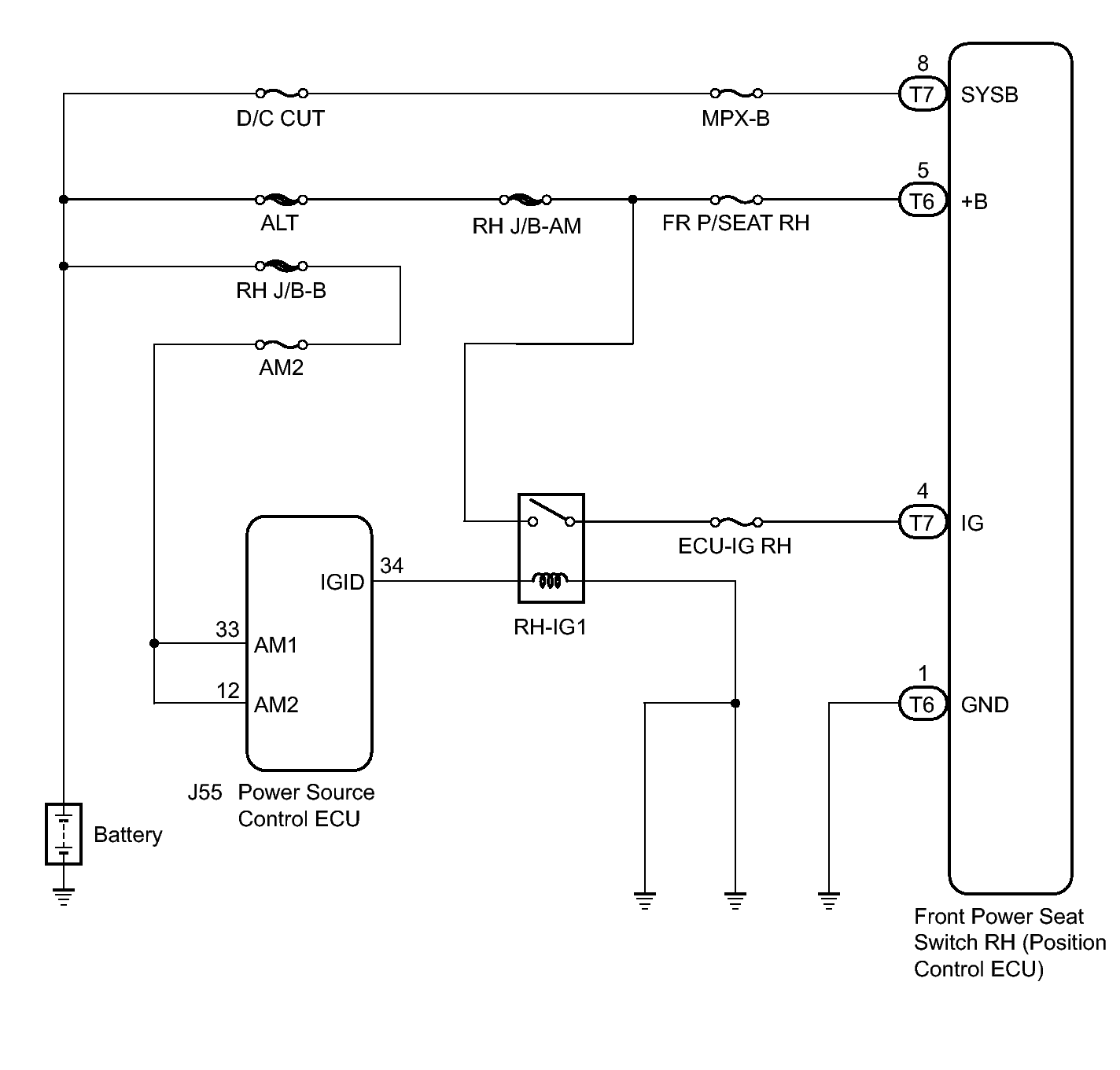

Fig 1: Identifying Front Passenger Side ECU Power Source Wiring Diagram

GTY115035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
