Display does not Dim when Light Control Switch is Turned ON: Procedure

1. Enter the display adjustment screen by pressing the "DISP" switch.

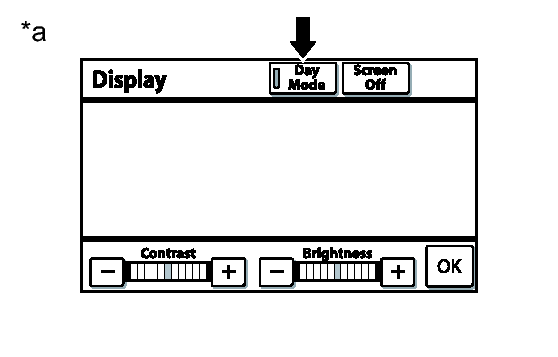

   Fig 1: Display Quality Adjustment Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the light control switch to the tail position.
3. Check if "Day Mode" on the display adjustment screen is on.

   OK

   "Day Mode" is on.

   TEXT IN ILLUSTRATION



   *a

   Example

NG → See step   2

OK → TURN "Day Mode" SETTING OFF

1. Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal in Operation Check. Refer to OPERATION CHECK .

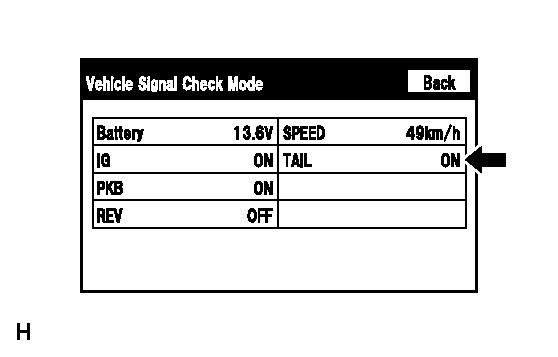

   Fig 2: Vehicle Signal Check Mode Display Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the display changes between ON and OFF according to the light control switch operation.

   OK

   Light Control Switch	Display
   Tail or head	ON
   Off	OFF

   HINT:

   The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

NG → See step   3

OK → See step   4
