DTC 01-DC: Transmission Error: Procedure
- CHECK FOR DTC OF OTHER COMPONENTS
- Check if the component shown by the sub-code is displayed in the check result of the other components.
- Check if DTC 01-DC is output for the other components.
- If DTC 01-DC is output for any other components, check if the same physical address is displayed.
Result
Result Proceed to DTC 01-DC is output and the same physical address is displayed A DTC 01-DC is not output or the same physical address is not displayed B HINT:
For the list of the components shown by sub-codes, refer to the table in step 2.
B → See step 4
A: Go to next step
- Check if the component shown by the sub-code is displayed in the check result of the other components.
- IDENTIFY COMPONENT WHICH HAS STORED THIS CODE
- Enter diagnostic mode.
- Press preset switch "2" to change the mode to "Detailed Information Mode".
- Identify the component which has stored this code.COMPONENT TABLE
Component Physical Address Stereo component amplifier assembly 440 Satellite radio tuner 1F1 Radio receiver assembly 190 Network gateway ECU 1C6 Multi-media interface ECU 388 Integration control and panel assembly 1D8 HINT:

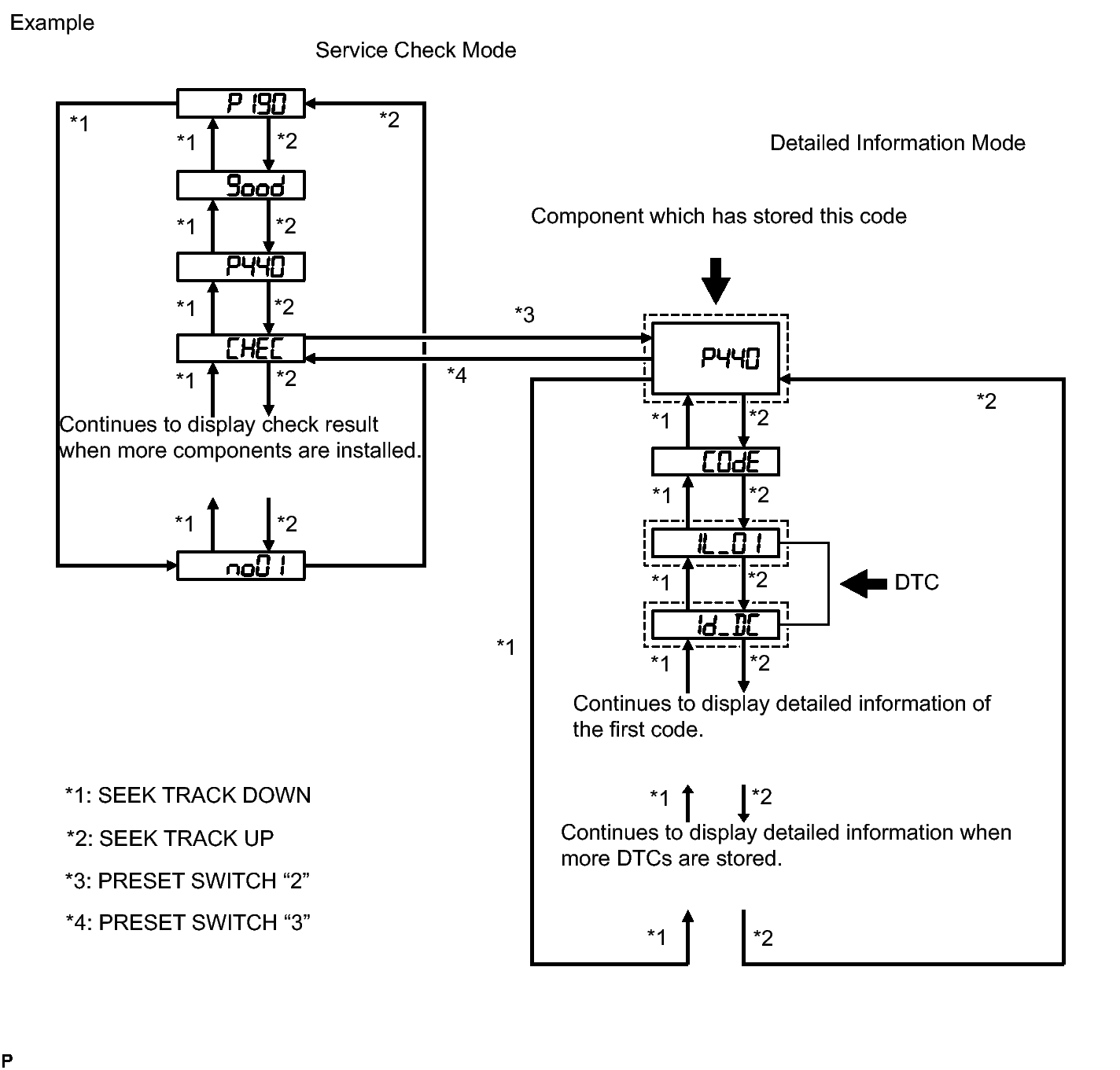

- "P440" set by the stereo component amplifier assembly is shown in the preceding illustration as an example.
- For details of the DTC display, refer to DTC Check/Clear. Refer to DTC CHECK / CLEAR .
NEXT: Go to next step
- CHECK COMPONENT WHICH HAS STORED THIS CODE
- Select the component which has stored this code.COMPONENT TABLE
Component Proceed to Stereo component amplifier assembly Stereo component amplifier communication error. Refer to Stereo Component Amplifier Communication Error Satellite radio tuner Satellite radio tuner communication error. Refer to Satellite Radio Tuner Communication Error Radio receiver assembly Radio receiver communication error. Refer to Radio Receiver Communication Error Network gateway ECU Gateway ECU communication error. Refer to Gateway ECU Communication Error Multi-media interface ECU Multi-media interface ECU communication error. Refer to Multi-media Interface ECU Communication Error Integration control and panel assembly Integration control and panel assembly communication error. Refer to Integration Control and Panel Assembly Communication Error
NEXT → END
- Select the component which has stored this code.
- CLEAR DTC
- Clear the DTCs. Refer to DTC CHECK / CLEAR
.
HINT:
If DTC 01-DC is output for only one component, this may not indicate a malfunction.
NEXT: Go to next step
- Clear the DTCs. Refer to DTC CHECK / CLEAR
.
- RECHECK FOR DTC
- Recheck for DTCs and check if the same DTC is output again.
OK
No DTCs are output.
NG → See step 6
OK → END
- Recheck for DTCs and check if the same DTC is output again.
- CHECK COMPONENT WHICH HAS STORED THIS CODE
- Select the component which has stored this code.COMPONENT TABLE
Component Proceed to Stereo component amplifier assembly Stereo component amplifier communication error. Refer to Stereo Component Amplifier Communication Error Satellite radio tuner Satellite radio tuner communication error. Refer to Satellite Radio Tuner Communication Error Radio receiver assembly Radio receiver communication error. Refer to Radio Receiver Communication Error Network gateway ECU Gateway ECU communication error. Refer to Gateway ECU Communication Error Multi-media interface ECU Multi-media interface ECU communication error. Refer to Multi-media Interface ECU Communication Error Integration control and panel assembly Integration control and panel assembly communication error. Refer to Integration Control and Panel Assembly Communication Error
NEXT → END
- Select the component which has stored this code.
