Speaker Circuit: Procedure

  1. CHECK HARNESS AND CONNECTOR
    1. Disconnect the connectors from the stereo component amplifier assembly, DCM (telematics transceiver)*1 and speakers.
      • *1: w/ Manual (SOS) Switch
    2. Measure the resistance between the front No. 1 speaker LH and the stereo component amplifier assembly to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P44-3 (WFL+) - M13-1 Always Below 1 Ω
      P44-8 (WFL-) - M13-2 Always Below 1 Ω
    3. w/o Manual (SOS) Switch:

      Measure the resistance between the front No. 1 speaker RH and the stereo component amplifier assembly to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P44-10 (WFR+) - L1-1 Always Below 1 Ω
      P44-9 (WFR-) - L1-2 Always Below 1 Ω
    4. w/ Manual (SOS) Switch:

      Measure the resistance between the stereo component amplifier assembly and the DCM (telematics transceiver) to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P44-10 (WFR+) - J114-2 (SPI+) Always Below 1 Ω
      P44-9 (WFR-) - J114-3 (SPI-) Always Below 1 Ω
    5. w/ Manual (SOS) Switch:

      Measure the resistance between the front No. 1 speaker RH and the DCM (telematics transceiver) to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J114-5 (SPO+) - L1-1 Always Below 1 Ω
      J114-6 (SPO-) - L1-2 Always Below 1 Ω
    6. Measure the resistance between each of the front No. 3 speakers and the stereo component amplifier assembly to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P28-4 (FR+) - L2-1 (TWR+) Always Below 1 Ω
      P28-10 (FR-) - L2-3 (TWR-) Always Below 1 Ω
      P28-3 (FL+) - M4-1 (TWL+) Always Below 1 Ω
      P28-9 (FL-) - M4-3 (TWL-) Always Below 1 Ω
    7. Measure the resistance between each of the front No. 2 speakers and the front No. 3 speakers to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L2-2 (+) - L5-1 Always Below 1 Ω
      L2-4 (-) - L5-2 Always Below 1 Ω
      M4-2 (+) - M12-1 Always Below 1 Ω
      M4-4 (-) - M12-2 Always Below 1 Ω
    8. Measure the resistance between each of the rear speakers and the stereo component amplifier assembly to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P44-5 (RR+) - N3-1 Always Below 1 Ω
      P44-12 (RR-) - N3-2 Always Below 1 Ω
      P44-4 (RL+) - O3-1 Always Below 1 Ω
      P44-11 (RL-) - O3-2 Always Below 1 Ω
    9. Measure the resistance between each of the rear No. 3 speakers and the stereo component amplifier assembly to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P44-2 (MR+) - N4-1 (+) Always Below 1 Ω
      P44-7 (MR-) - N4-3 (-) Always Below 1 Ω
      P44-1 (ML+) - O4-1 (+) Always Below 1 Ω
      P44-6 (ML-) - O4-3 (-) Always Below 1 Ω
    10. Measure the resistance between each of the rear No. 2 speakers and the rear No. 3 speakers to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N4-2 (+TW) - N6-1 Always Below 1 Ω
      N4-4 (-TW) - N6-2 Always Below 1 Ω
      O4-2 (+TW) - O6-1 Always Below 1 Ω
      O4-4 (-TW) - O6-2 Always Below 1 Ω
    11. Measure the resistance between the stereo component speaker and the stereo component amplifier assembly to check for an open circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P28-1 (WF1+) - P21-1 (WF1+) Always Below 1 Ω
      P28-5 (WF1-) - P21-3 (WF1-) Always Below 1 Ω
      P28-2 (WF2+) - P21-2 (WF2+) Always Below 1 Ω
      P28-6 (WF2-) - P21-4 (WF2-) Always Below 1 Ω
    12. Measure the resistance between the stereo component amplifier assembly and body ground to check for a short circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P44-10 (WFR+) - Body ground Always 10 kΩ or higher
      P44-9 (WFR-) - Body ground Always 10 kΩ or higher
      P44-3 (WFL+) - Body ground Always 10 kΩ or higher
      P44-8 (WFL-) - Body ground Always 10 kΩ or higher
      P44-2 (MR+) - Body ground Always 10 kΩ or higher
      P44-7 (MR-) - Body ground Always 10 kΩ or higher
      P44-1 (ML+) - Body ground Always 10 kΩ or higher
      P44-6 (ML-) - Body ground Always 10 kΩ or higher
      P44-5 (RR+) - Body ground Always 10 kΩ or higher
      P44-12 (RR-) - Body ground Always 10 kΩ or higher
      P44-4 (RL+) - Body ground Always 10 kΩ or higher
      P44-11 (RL-) - Body ground Always 10 kΩ or higher
      P28-4 (FR+) - Body ground Always 10 kΩ or higher
      P28-10 (FR-) - Body ground Always 10 kΩ or higher
      P28-3 (FL+) - Body ground Always 10 kΩ or higher
      P28-9 (FL-) - Body ground Always 10 kΩ or higher
      P28-1 (WF1+) - Body ground Always 10 kΩ or higher
      P28-5 (WF1-) - Body ground Always 10 kΩ or higher
      P28-2 (WF2+) - Body ground Always 10 kΩ or higher
      P28-6 (WF2-) - Body ground Always 10 kΩ or higher
    13. w/ Manual (SOS) Switch:

      Measure the resistance between the front No. 1 speaker RH and body ground to check for a short circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L1-1 - Body ground Always 10 kΩ or higher
      L1-2 - Body ground Always 10 kΩ or higher
    14. Measure the resistance between each of the front No. 2 speakers and body ground to check for a short circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L5-1 - Body ground Always 10 kΩ or higher
      L5-2 - Body ground Always 10 kΩ or higher
      M12-1 - Body ground Always 10 kΩ or higher
      M12-2 - Body ground Always 10 kΩ or higher
    15. Measure the resistance between each of the rear No. 2 speakers and body ground to check for a short circuit in the wire harness.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N6-1 - Body ground Always 10 kΩ or higher
      N6-2 - Body ground Always 10 kΩ or higher
      O6-1 - Body ground Always 10 kΩ or higher
      O6-2 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. INSPECT FRONT NO. 1 SPEAKER
    1. Resistance check

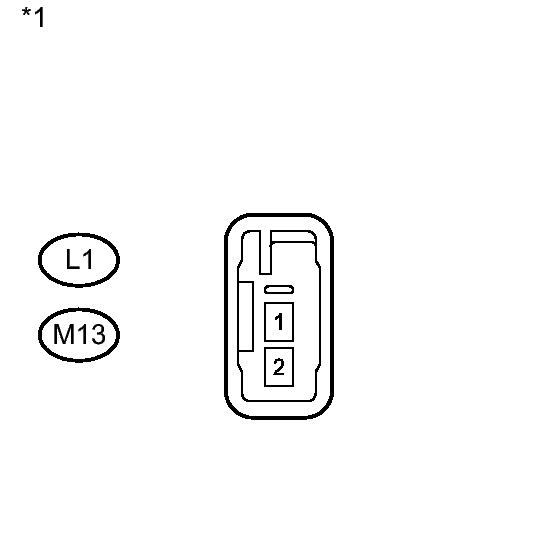

      Fig 1: View Of Front No. 1 Speaker Connector
      GTY281899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        L1-1 - L1-2 Always 3.2 to 4.8 Ω
        M13-1 - M13-2 Always 3.2 to 4.8 Ω
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Front No. 1 Speaker)

    NG → See step   10

    OK: Go to next step

  3. INSPECT FRONT NO. 2 SPEAKER
    1. Resistance check

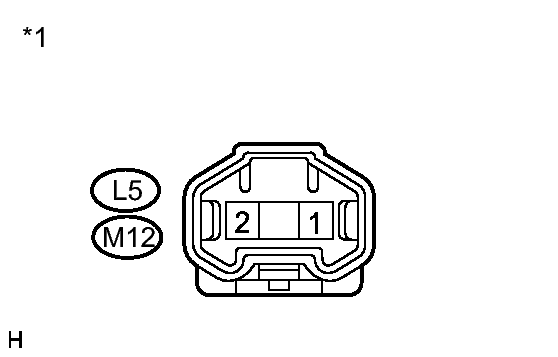

      Fig 2: View Of Front No. 2 Speaker Connector And Terminals
      GTY258709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        L5-1 - L5-2 Always 3.2 to 4.8 Ω
        M12-1 - M12-2 Always 3.2 to 4.8 Ω
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Front No. 2 Speaker)

    NG → See step   14

    OK: Go to next step

  4. INSPECT FRONT NO. 3 SPEAKER
    1. Resistance check

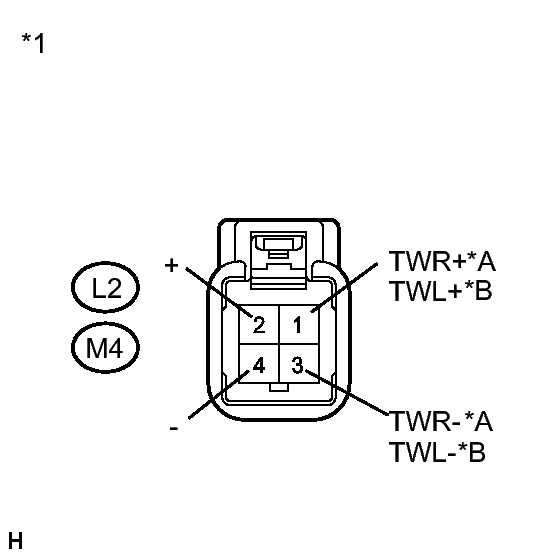

      Fig 3: Inspecting Front No. 3 Speaker
      GTY267941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        L2-1 (TWR+) - L2-3 (TWR-) Always 3.2 to 4.8 Ω
        L2-1 (TWR+) - L2-2 (+) Always 10 kΩ or higher
        L2-3 (TWR-) - L2-4 (-) Always Below 1 Ω
        M4-1 (TWL+) - M4-3 (TWL-) Always 3.2 to 4.8 Ω
        M4-1 (TWL+) - M4-2 (+) Always 10 kΩ or higher
        M4-3 (TWL-) - M4-4 (-) Always Below 1 Ω
        TEXT IN ILLUSTRATION

        *A for RH
        *B for LH
        *1 Component without harness connected
        (Front No. 3 Speaker)

    NG → See step   15

    OK: Go to next step

  5. INSPECT REAR SPEAKER
    1. Resistance check

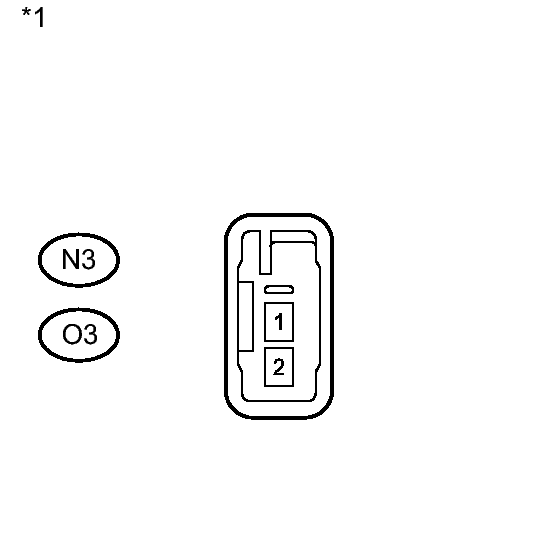

      Fig 4: View Of Rear Speaker Connector Terminals
      GTY260157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        N3-1 - N3-2 Always 3.2 to 4.8 Ω
        O3-1 - O3-2 Always 3.2 to 4.8 Ω
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Rear Speaker)

    NG → See step   11

    OK: Go to next step

  6. INSPECT REAR NO. 2 SPEAKER
    1. Resistance check

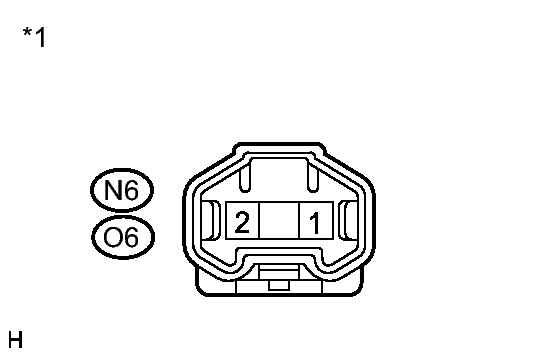

      Fig 5: View Of Rear No. 2 Speaker Connector And Terminals
      GTY262870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        N6-1 - N6-2 Always 3.2 to 4.8 Ω
        O6-1 - O6-2 Always 3.2 to 4.8 Ω
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Rear No. 2 Speaker)

    NG → See step   16

    OK: Go to next step

  7. INSPECT REAR NO. 3 SPEAKER
    1. Resistance check

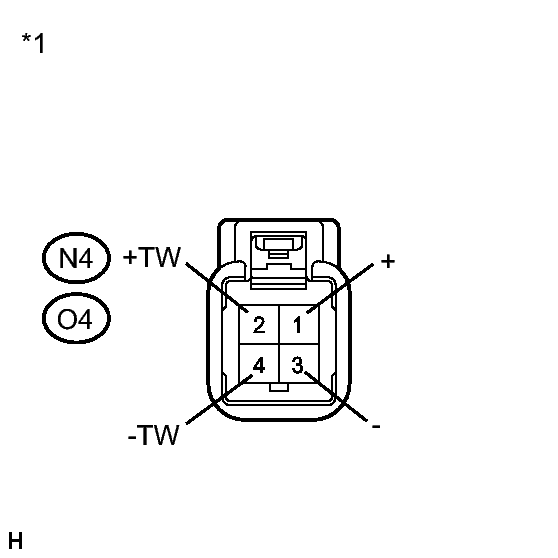

      Fig 6: View Of Rear No. 3 Speaker Connector And Terminals
      GTY261415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        N4-1 (+) - N4-3 (-) Always 3.2 to 4.8 Ω
        N4-1 (+) - N4-2 (+TW) Always 10 kΩ or higher
        N4-3 (-) - N4-4 (-TW) Always Below 1 Ω
        O4-1 (+) - O4-3 (-) Always 3.2 to 4.8 Ω
        O4-1 (+) - O4-2 (+TW) Always 10 kΩ or higher
        O4-3 (-) - O4-4 (-TW) Always Below 1 Ω
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Rear No. 3 Speaker)

    NG → See step   17

    OK: Go to next step

  8. INSPECT STEREO COMPONENT SPEAKER
    1. Resistance check

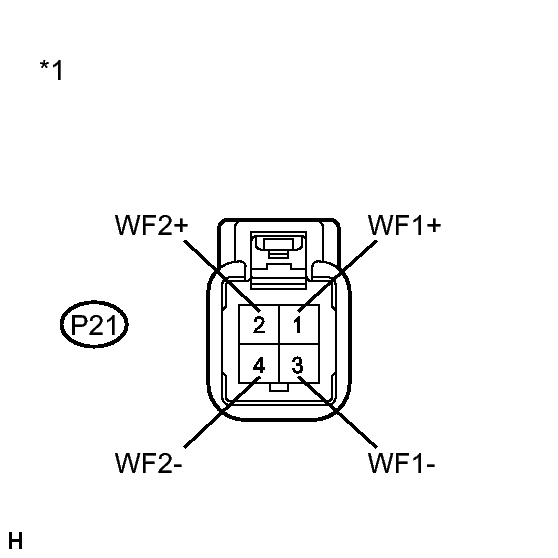

      Fig 7: Identifying Stereo Component Speaker Connector Terminals
      GTY269265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        P21-1 (WF1+) - P21-3 (WF1-) Always 1.6 to 2.4 Ω
        P21-2 (WF2+) - P21-4 (WF2-) Always 1.6 to 2.4 Ω
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Stereo Component Speaker)
    2. Proceed to the next step based on the inspection result.

      Result

      Condition Proceed to
      OK (w/ Manual (SOS) Switch) A
      OK (w/o Manual (SOS) Switch) B
      NG C

    B → See step   13

    C → See step   12

    A: Go to next step

  9. INSPECT DCM (TELEMATICS TRANSCEIVER)
    1. Resistance check

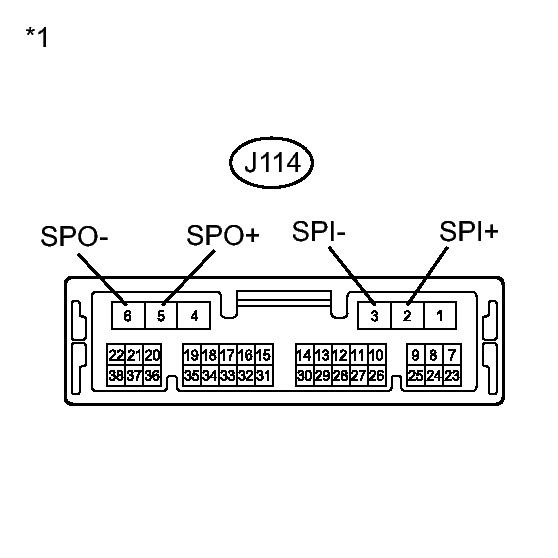

      Fig 8: Identifying Telematics Transceiver J114 Connector Terminals
      GTY280798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        J114-2 (SPI+) - J114-5 (SPO+) Always Below 1 Ω
        J114-3 (SPI-) - J114-6 (SPO-) Always Below 1 Ω
        J114-2 (SPI+) - J114-3 (SPI-) Always 10 kΩ or higher
        J114-5 (SPO+) - J114-6 (SPO-) Always 10 kΩ or higher
        J114-3 (SPI-) - Body ground Always 10 kΩ or higher
        J114-2 (SPI+) - Body ground Always 10 kΩ or higher
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (DCM (Telematics Transceiver))

    NG → See step   18

    OK → See step   13

  10. REPLACE FRONT NO. 1 SPEAKER. Refer to  REMOVAL
  11. REPLACE REAR SPEAKER. Refer to  REMOVAL
  12. REPLACE STEREO COMPONENT SPEAKER. Refer to  REMOVAL
  13. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  14. REPLACE FRONT NO. 2 SPEAKER. Refer to  REMOVAL
  15. REPLACE FRONT NO. 3 SPEAKER. Refer to  REMOVAL
  16. REPLACE REAR NO. 2 SPEAKER. Refer to  REMOVAL
  17. REPLACE REAR NO. 3 SPEAKER. Refer to  REMOVAL
  18. REPLACE DCM (TELEMATICS TRANSCEIVER). Refer to  REMOVAL
