Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter: Procedure

1. Disconnect the multi-media interface ECU connector.

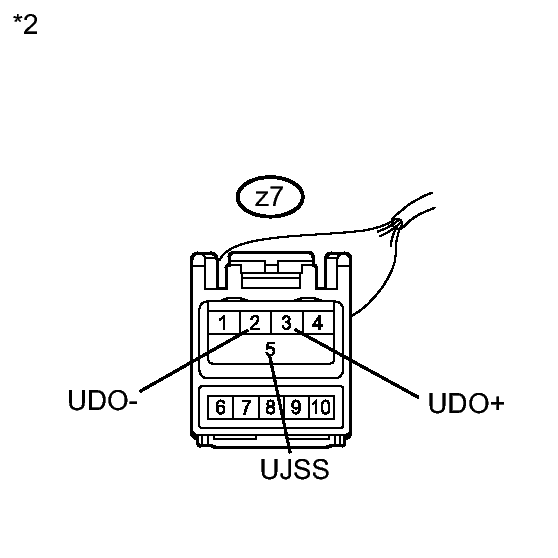

   Fig 1: View Of Multi-Media Interface ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the No. 1 stereo jack adapter assembly connector.

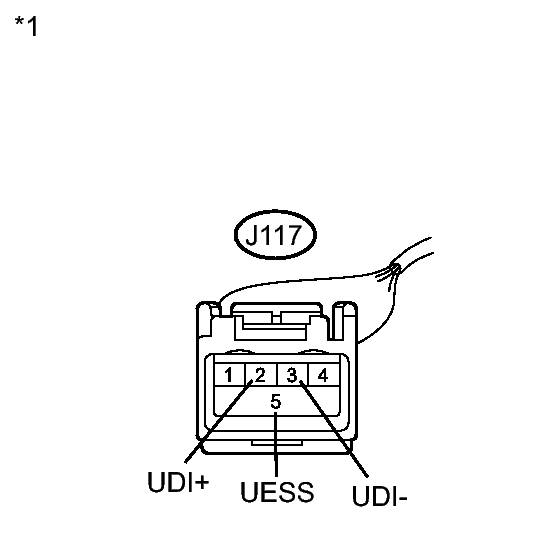

   Fig 2: View Of No. 1 Stereo Jack Adapter Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z7-3 (UDO+) - J117-2 (UDI+)	Always	Below 1 Ω
   z7-2 (UDO-) - J117-3 (UDI-)	Always	Below 1 Ω
   z7-5 (UJSS) - J117-5 (UESS)	Always	Below 1 Ω
   z7-3 (UDO+) - Body ground	Always	10 kΩ or higher
   z7-2 (UDO-) - Body ground	Always	10 kΩ or higher
   z7-5 (UJSS) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Multi-media Interface ECU)
   *2	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
