Microphone Circuit between Microphone and Radio Receiver: Procedure

  1. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Model Proceed to
      w/o Manual (SOS) Switch A
      w/ Manual (SOS) Switch B

    B → See step   4

    A: Go to next step

  2. CHECK HARNESS AND CONNECTOR
    1. Disconnect the radio receiver assembly and map light assembly connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J109-1 (SNS2) - R5-6 (SNS2) Always Below 1 Ω
      J109-3 (MACC) - R5-15 (MACC) Always Below 1 Ω
      J109-2 (MIC+) - R5-16 (MCO+) Always Below 1 Ω
      J109-5 (MIC-) - R5-17 (MCO-) Always Below 1 Ω
      J109-1 (SNS2) - Body ground Always 10 kΩ or higher
      J109-3 (MACC) - Body ground Always 10 kΩ or higher
      J109-2 (MIC+) - Body ground Always 10 kΩ or higher
      J109-5 (MIC-) - Body ground Always 10 kΩ or higher
      J109-6 (SGND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT RADIO RECEIVER ASSEMBLY
    1. Disconnect the map light assembly connector.
    2. Reconnect the radio receiver assembly connector.

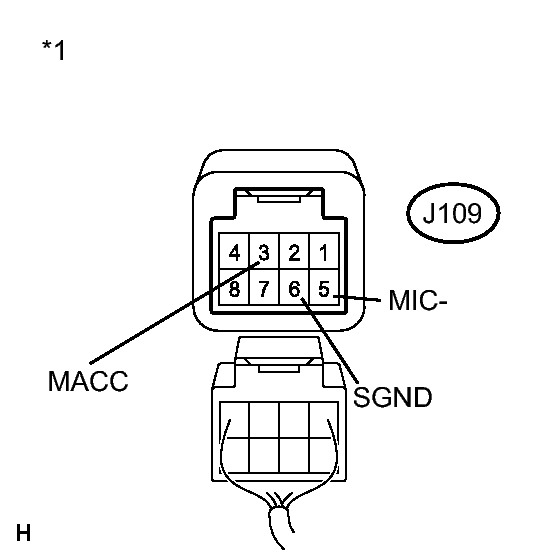

      Fig 1: Identifying Radio Receiver Assembly Connector Terminals
      GTY280968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      J109-3 (MACC) - Body ground Engine switch on (ACC) 4 to 6 V
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J109-6 (SGND) - Body ground Always Below 1 Ω
      J109-5 (MIC-) - Body ground Always Below 1 Ω
    5. Proceed to the next step based on the inspection result.

      Result

      Result Proceed to
      NG A
      OK B
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (Radio Receiver Assembly)

    B → See step   8

    A → See step   11

  4. CHECK HARNESS AND CONNECTOR
    1. Disconnect the radio receiver assembly and map light assembly connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J109-1 (SNS2) - R5-6 (SNS2) Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR
    1. Disconnect the radio receiver assembly and DCM (telematics transceiver) connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J109-2 (MIC+) - J114-18 (MCO+) Always Below 1 Ω
      J109-5 (MIC-) - J114-19 (MCO-) Always Below 1 Ω
      J109-2 (MIC+) - Body ground Always 10 kΩ or higher
      J109-5 (MIC-) - Body ground Always 10 kΩ or higher
      J109-6 (SGND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR
    1. Disconnect the DCM (telematics transceiver) and map light assembly connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J114-33 (MCVD) - R5-15 (MACC) Always Below 1 Ω
      J114-34 (MCI+) - R5-16 (MCO+) Always Below 1 Ω
      J114-35 (MCI-) - R5-17 (MCO-) Always Below 1 Ω
      J114-33 (MCVD) - Body ground Always 10 kΩ or higher
      J114-34 (MCI+) - Body ground Always 10 kΩ or higher
      J114-35 (MCI-) - Body ground Always 10 kΩ or higher
      J114-32 (SGND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  7. INSPECT RADIO RECEIVER ASSEMBLY
    1. Disconnect the DCM (telematics transceiver) connector.
    2. Reconnect the radio receiver assembly connector.

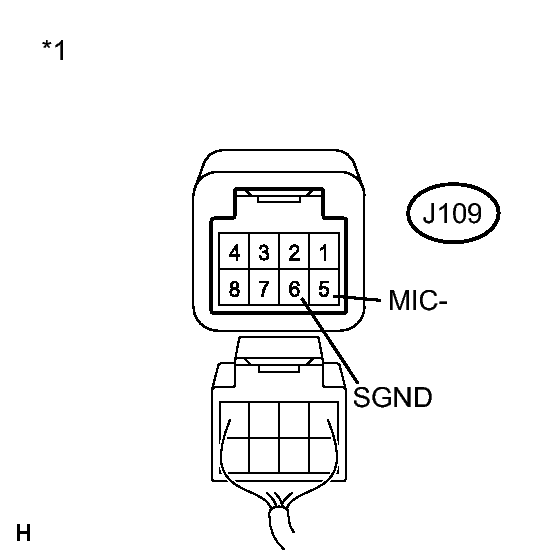

      Fig 2: Identifying Radio Receiver Assembly Connector Terminals
      GTY280959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J109-6 (SGND) - Body ground Always Below 1 Ω
      J109-5 (MIC-) - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (Radio Receiver Assembly)

    NG → See step   14

    OK: Go to next step

  8. INSPECT MAP LIGHT ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

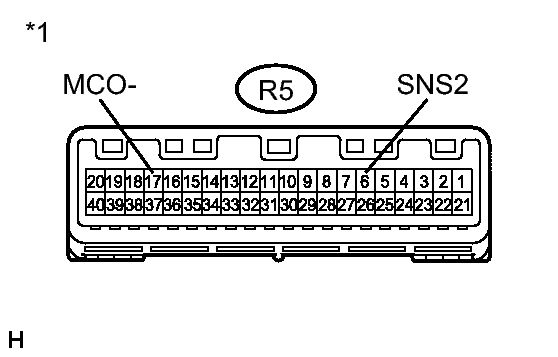

      Fig 3: Identifying R5 Terminal Connector
      GTY282297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      R5-17 (MCO-) - R5-6 (SNS2) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Map Light Assembly)

    NG → See step   10

    OK: Go to next step

  9. INSPECT MAP LIGHT ASSEMBLY
    1. Reconnect the radio receiver assembly connector.
    2. Reconnect the DCM (telematics transceiver) connector (w/ Manual (SOS) Switch).
    3. Reconnect the map light assembly connector.

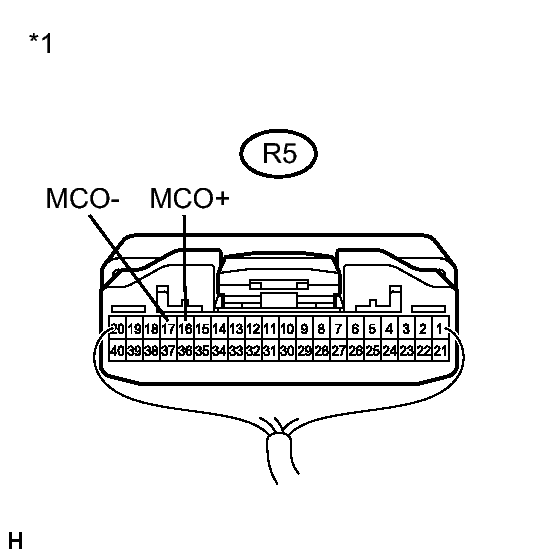

      Fig 4: Identifying R5 Terminal Connector
      GTY258171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the engine switch on (ACC).
    5. Connect an oscilloscope to terminals 16 (MCO+) and 17 (MCO-) of the R5 map light assembly connector.
    6. Check the waveform of the telephone microphone assembly using the oscilloscope.

      Result

      Result Proceed to
      A waveform synchronized with the voice input to the map light assembly is output A
      A waveform synchronized with the voice input to the map light assembly is not output B
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (Map Light Assembly)

    B → See step   10

    A → See step   13

  10. REPLACE TELEPHONE MICROPHONE ASSEMBLY
    1. Replace the telephone microphone assembly. Refer to REMOVAL .
    2. Check if the same malfunction recurs.

      Result

      Result Proceed to
      Malfunction does not recur
      (returns to normal)      		 A
      Malfunction recurs B

    B → See step   12

    A → END

  11. REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL
  12. REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL
  13. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  14. REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL
