Gateway ECU Power Source Circuit: Procedure
- INSPECT NETWORK GATEWAY ECU
- Disconnect the network gateway ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J76-24 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage

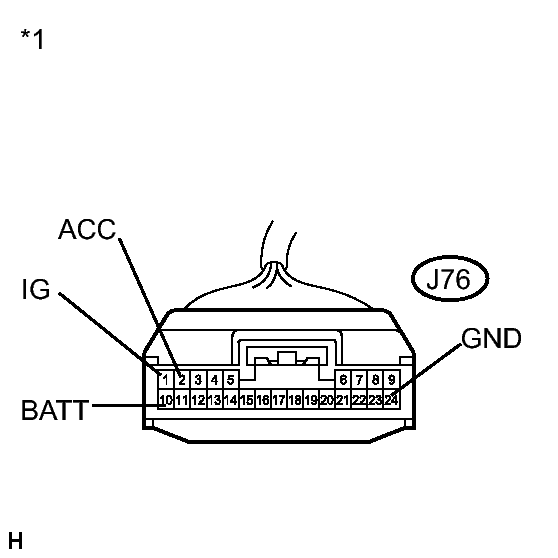

Tester Connection Condition Specified Condition J76-10 (BATT) - J76-24 (GND) Always 11 to 14 V J76-2 (ACC) - J76-24 (GND) Engine switch on (ACC) 11 to 14 V J76-1 (IG) - J76-24 (GND) Engine switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Network Gateway ECU)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 2
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
