Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter: Procedure

1. Disconnect the stereo component amplifier assembly connector.
2. Disconnect the combination meter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   P43-2 (SPD) - J34-5 (+S)	Always	Below 1 Ω
   P43-2 (SPD) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the combination meter assembly connector.
2. Check the output waveform.

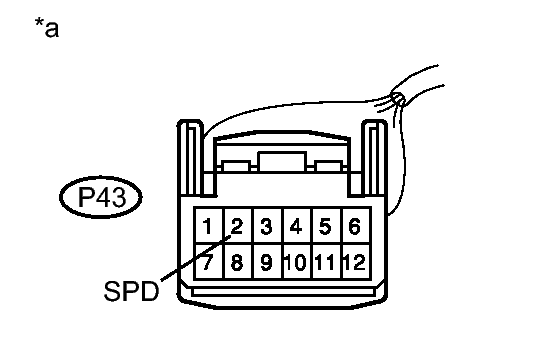

   Fig 1: Identifying P43 Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect an oscilloscope to terminal P43-2 (SPD) and body ground.
   2. Turn the engine switch on (IG).
   3. Turn a wheel slowly.
   4. Check the signal waveform according to the condition(s) in the table below.
      Fig 2: Identifying Waveform Graph

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Item	Condition
      Measurement terminal	P43-2 (SPD) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Vehicle condition	Wheel being rotated

      OK

      The waveform is similar to that shown in the illustration.

      HINT:

      When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

      TEXT IN ILLUSTRATION



      *a	Front view of wire harness connector (to Stereo Component Amplifier Assembly)

NG → See step   4

OK → See step   3
