Sound Signal Circuit between Multi-display and Multi-media Interface ECU: Wiring Diagram

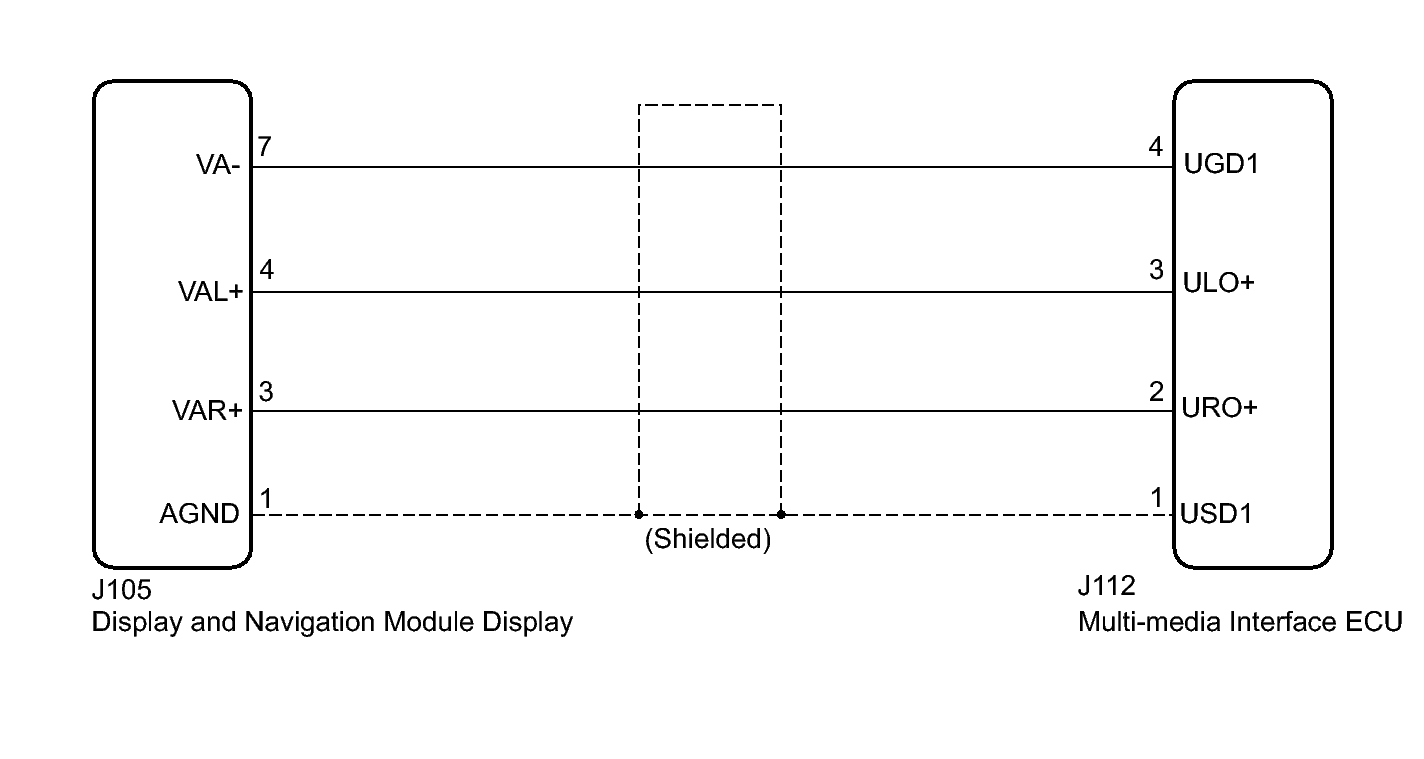

Fig 1: Identifying Multi-Media Interface ECU Wiring Diagram

GTY394545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
