Microphone Circuit between Microphone and Radio Receiver: Wiring Diagram

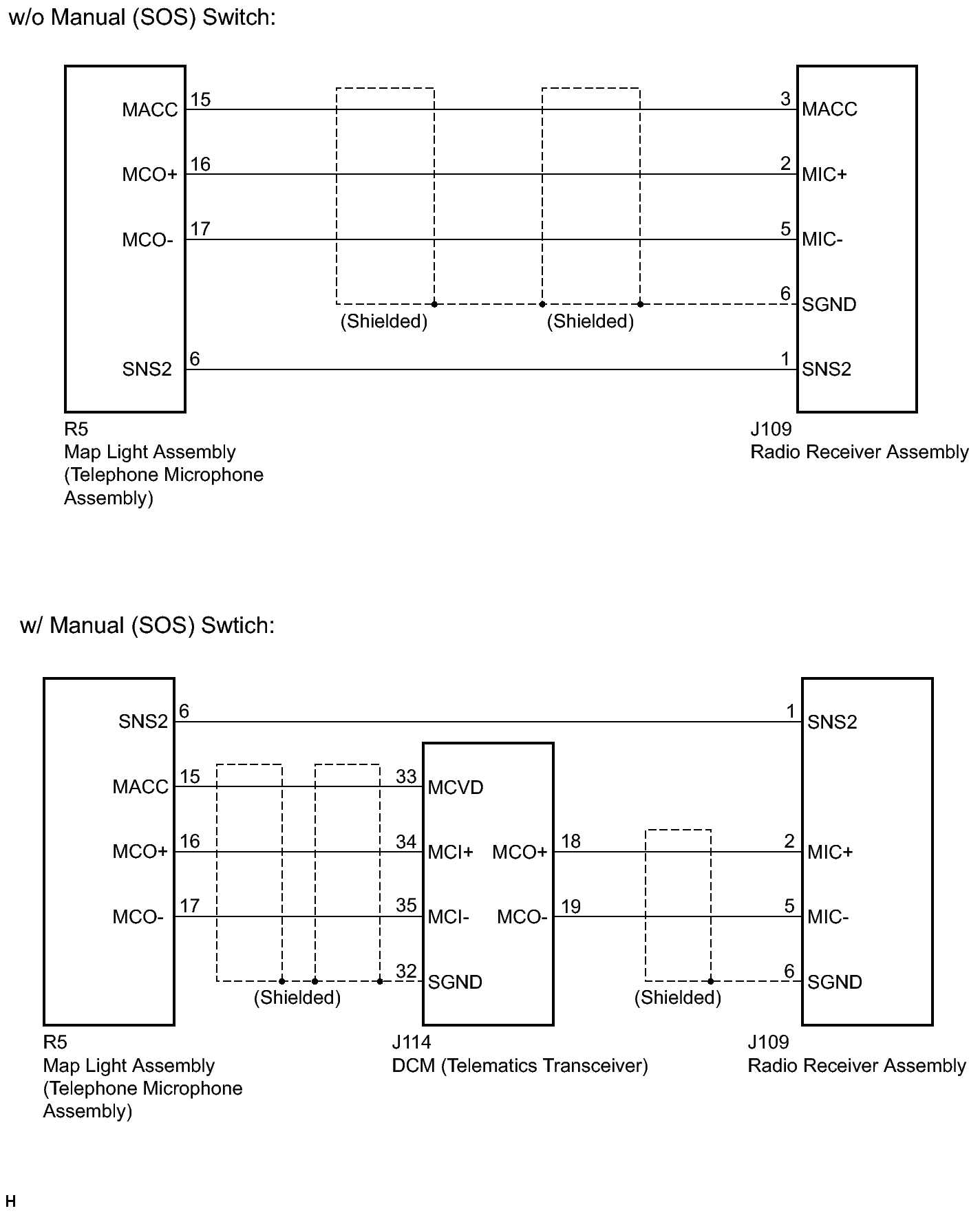

Fig 1: Microphone Circuit Between Microphone and Radio Receiver Wiring Diagram

GTY267528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
