FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): Installation: Installation

INSTALL OCCUPANT CLASSIFICATION ECU See step 1
INSTALL OCCUPANT CLASSIFICATION SENSOR
1. Install the occupant classification sensor with 2 clips.

  Fig 1: Identifying Sensor With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Securely install the clip.
  - Do not reuse an occupant classification sensor which has been dropped.
  - Make sure that there is no foreign matter between the occupant classification sensor and seat assembly.
2. Engage the claw to install the pressure hose.

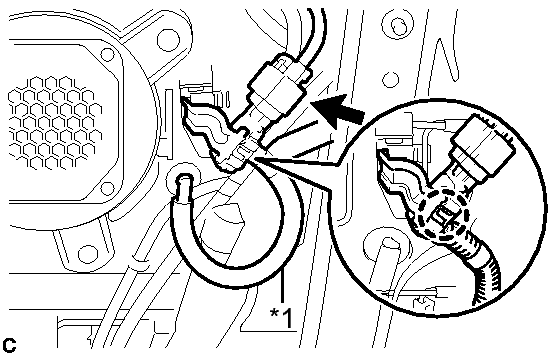

  Fig 2: Identifying Occupant Classification Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Pressure Hose
3. Connect the connector.
  NOTE:
  - When setting the pressure hose, make sure the pressure hose is not twisted. 1 full twist or more will damage the pressure hose.
  - Make sure the radius of the circular path of the pressure hose is 20 mm (0.787 in.) or more.
  - Do not kink the pressure hose.
  - After connecting the connectors, make sure that the connectors are not strained or pulled apart.
  - Make sure that the pressure hose is not pinched between other components.
INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD RH
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 33 .
INSTALL FRONT POWER SEAT SWITCH RH (w/o Memory)
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 34 .
INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY RH (w/ Memory)
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 35 .
INSTALL FRONT SEAT CUSHION INNER SHIELD RH
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 36 .
INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY RH
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 39 .
INSTALL RECLINING ADJUSTER RELEASE HANDLE RH
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 40 .
INSTALL RECLINING POWER SEAT SWITCH KNOB RH
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 41 .
INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB RH
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 42 .
INSTALL FRONT SEAT INNER BELT ASSEMBLY RH
HINT:

Use the same procedure for the RH side and LH side. Refer to REASSEMBLY - Step 43 .
INSTALL FRONT SEAT ASSEMBLY RH
HINT:

Refer to the procedure from Install Front Seat Assembly. Refer to INSTALLATION - Step 1 .

Use the same procedure for the RH side and LH side.
PERFORM DIAGNOSTIC SYSTEM CHECK
1. Perform a diagnostic system check. Refer to DTC CHECK / CLEAR .
