System Diagram

  1. MOST Communication Line

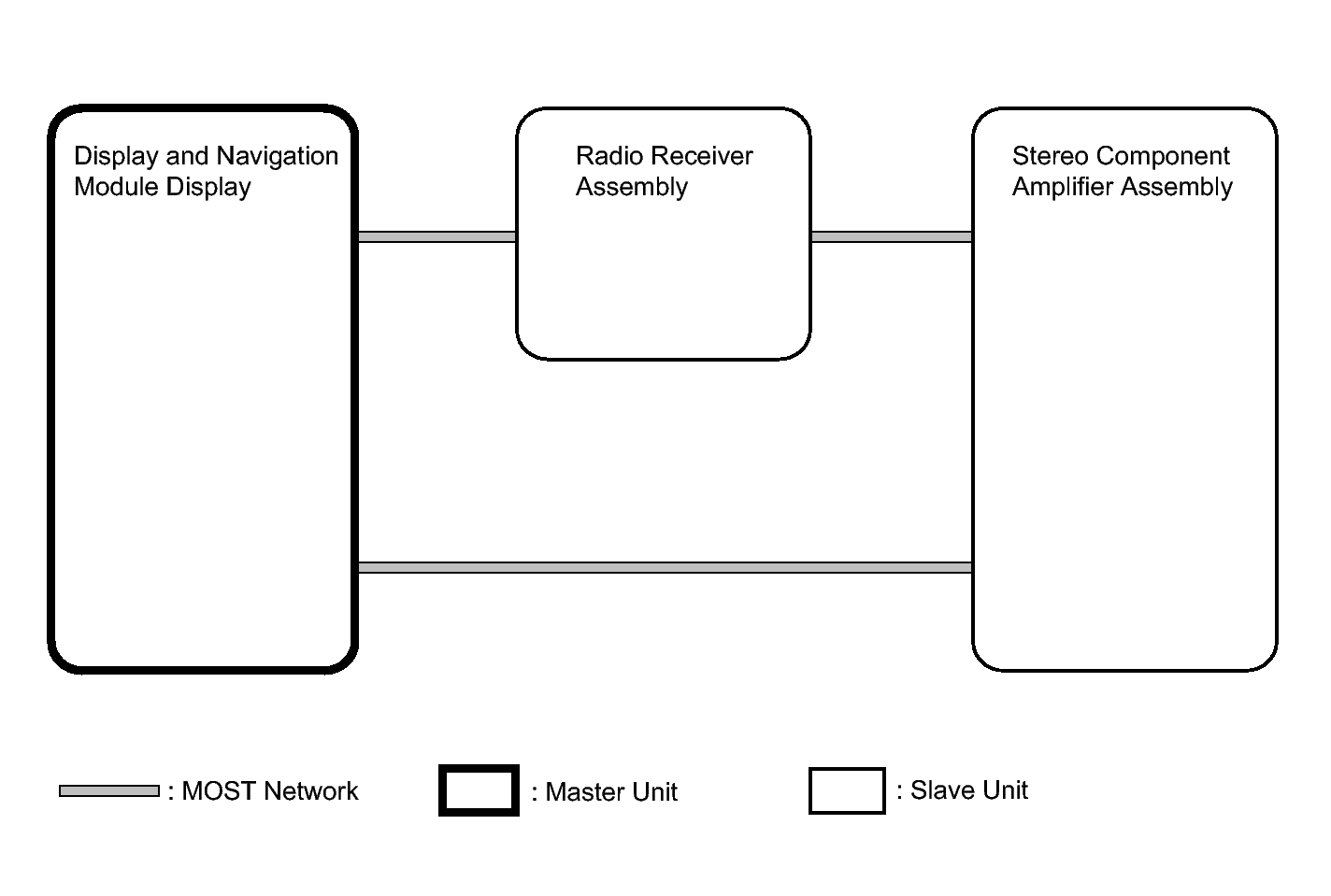

    Fig 1: MOST Communication Line System Diagram
    GTY395428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN Communication Line

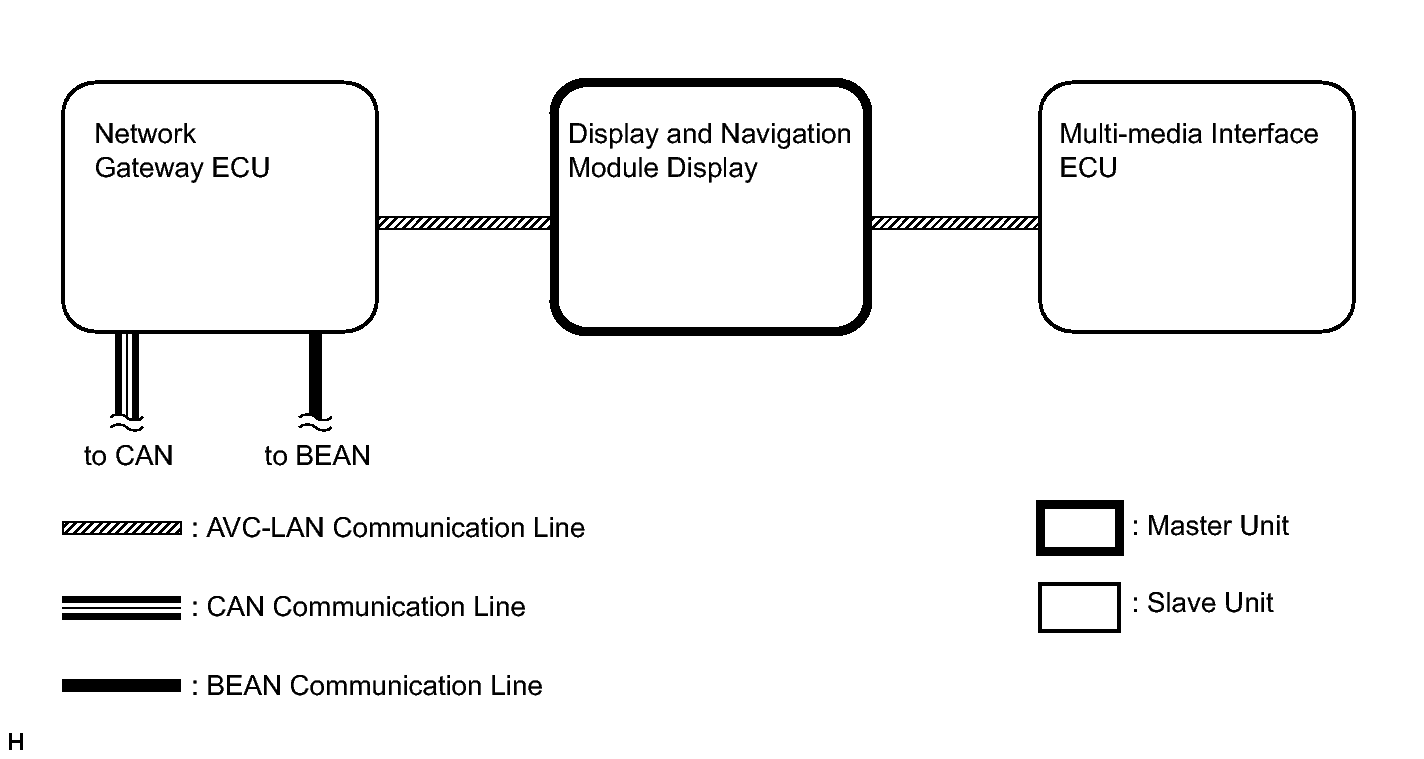

    Fig 2: AVC-LAN Communication Line System Diagram
    GTY393397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Others

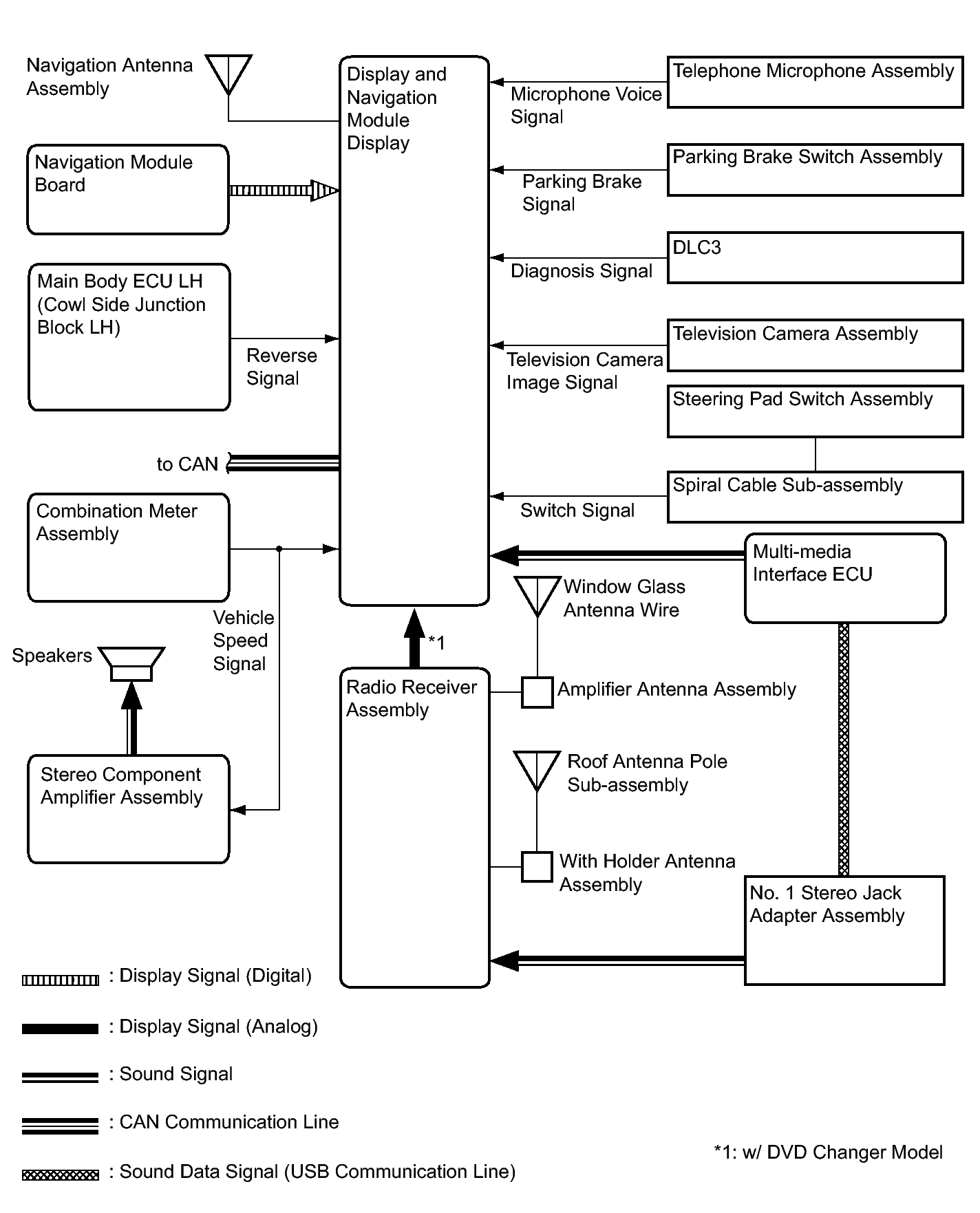

    Fig 3: Audio & Video Communication Line System Diagram
    GTY395115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
