DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

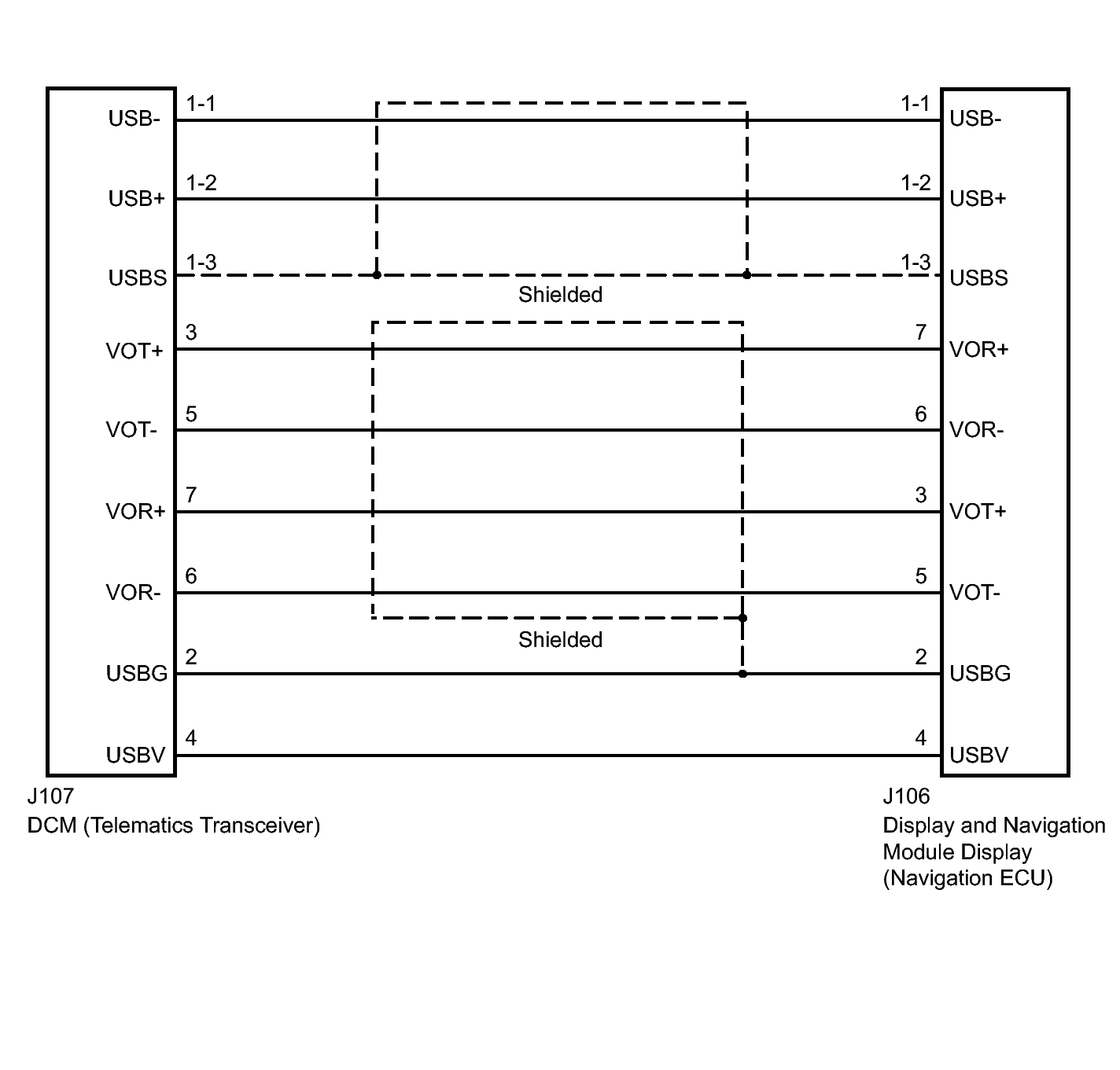

Fig 1: Identifying DCM Data Signal Circuit Between Navigation ECU And DCM - Wiring Diagram
GTY277412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
