Fuel Relief Valve: Components: Illustration

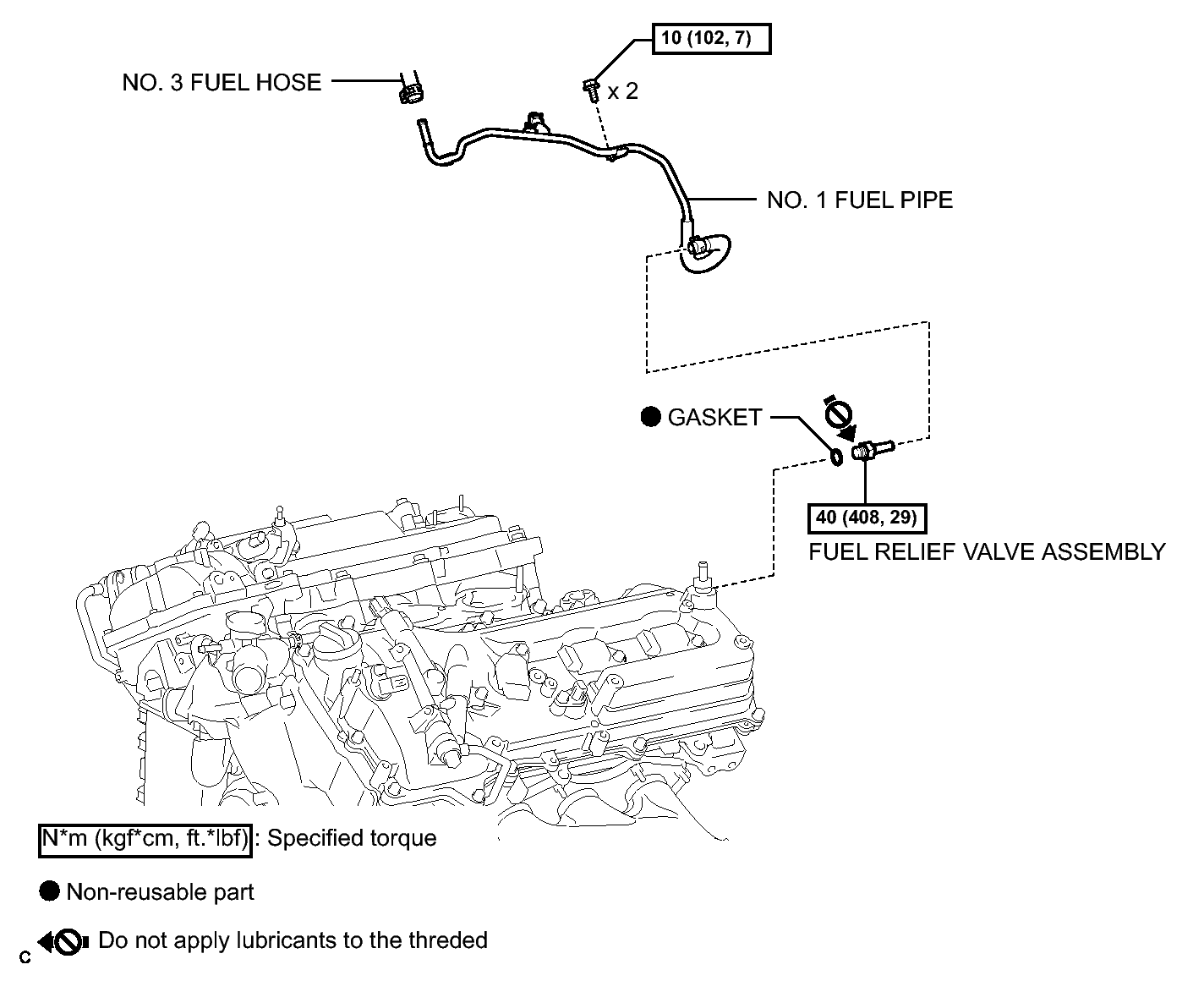

Fig 1: Fuel Relief Valve Replacement Components With Torque Specifications

GTY356179

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
