Garage Door Opener: Notes

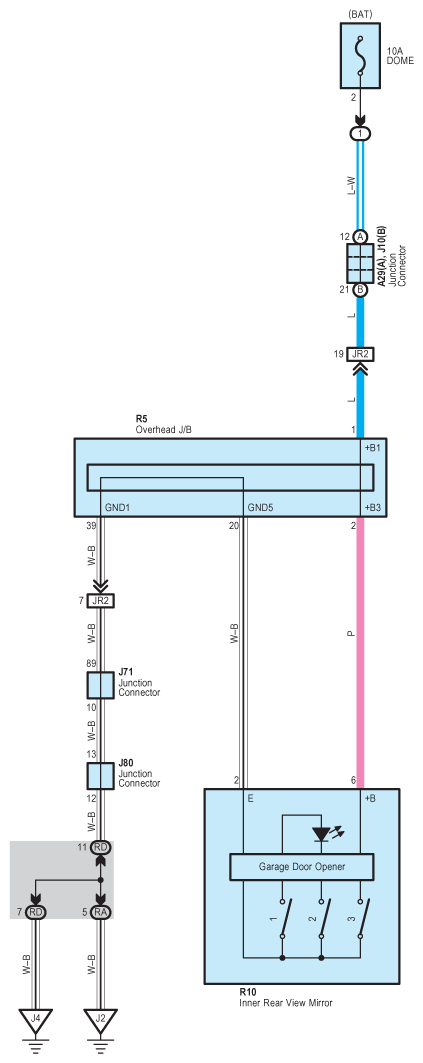

Fig 1: Garage Door Opener - Wiring Diagram

G08935630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
