4WD Control Ecu: Components: Illustration

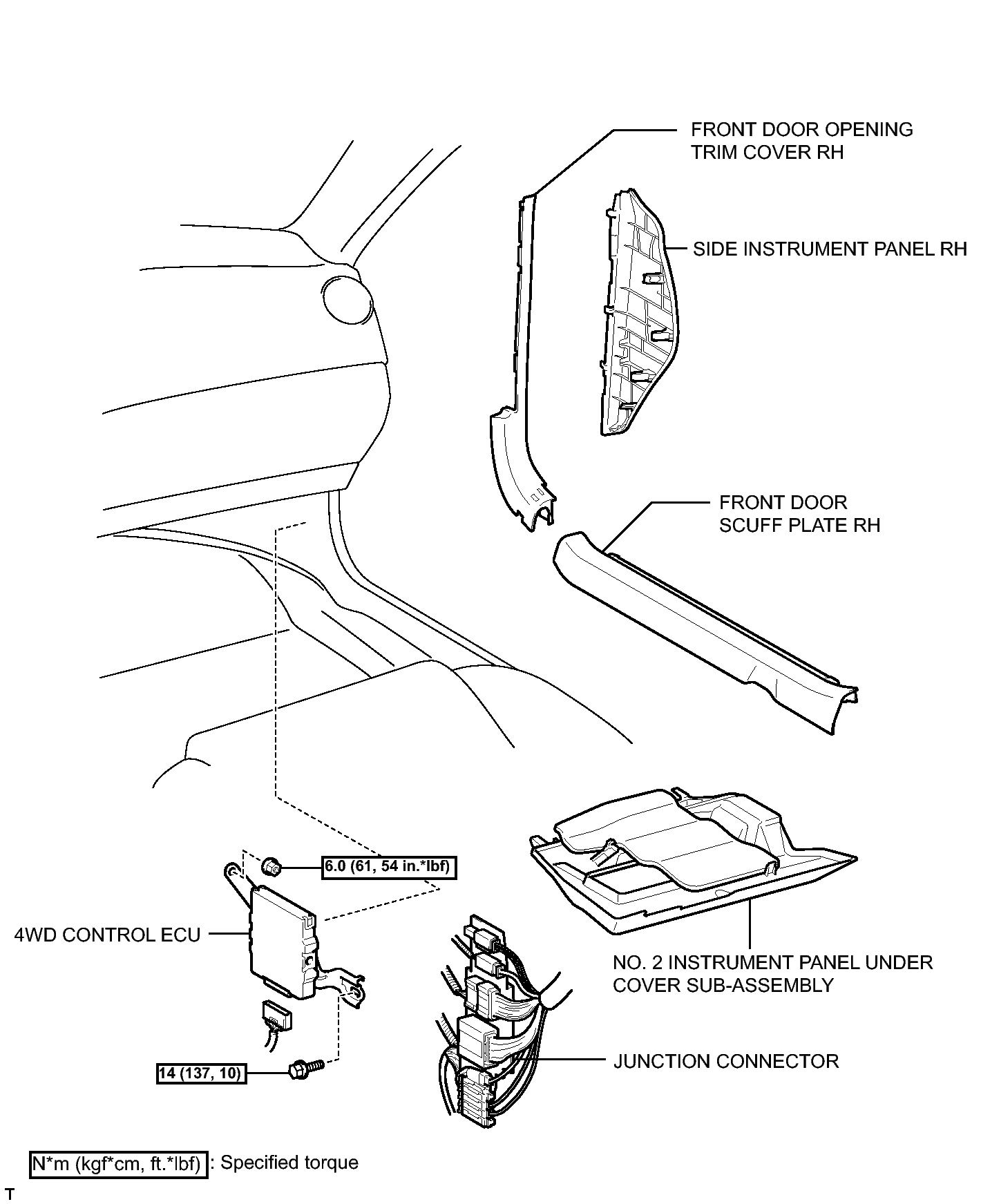

Fig 1: Identifying 4WD Control ECU Replacement Components With Torque Specifications

GTY113129

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
