System Diagram

WARNING: This page is about a different car, the 2012 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INTAKE CONTROL SYSTEM VALVE DIAGRAM

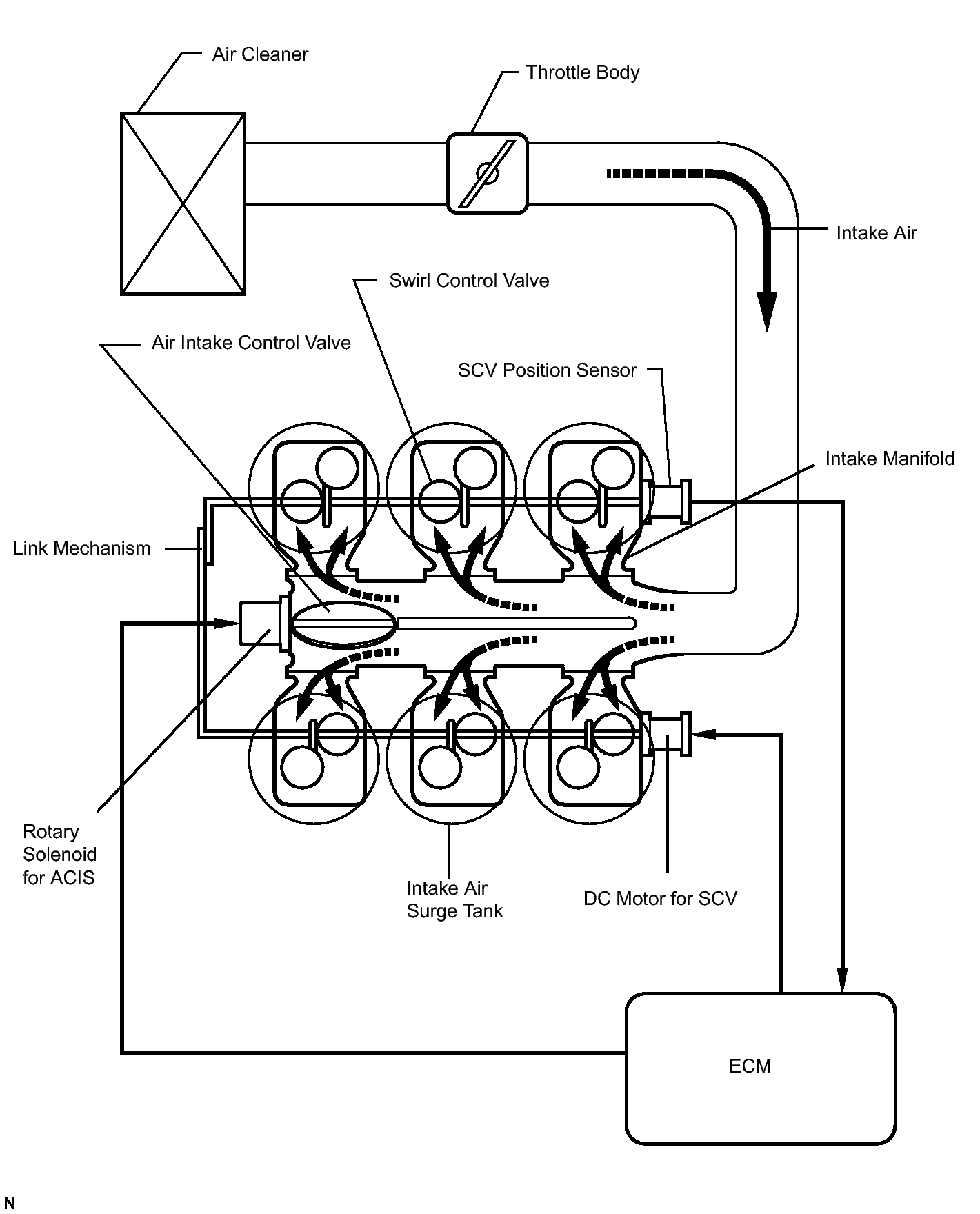

    Fig 1: Intake Control System Valve Diagram
    GTY145465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL WIRING DIAGRAM

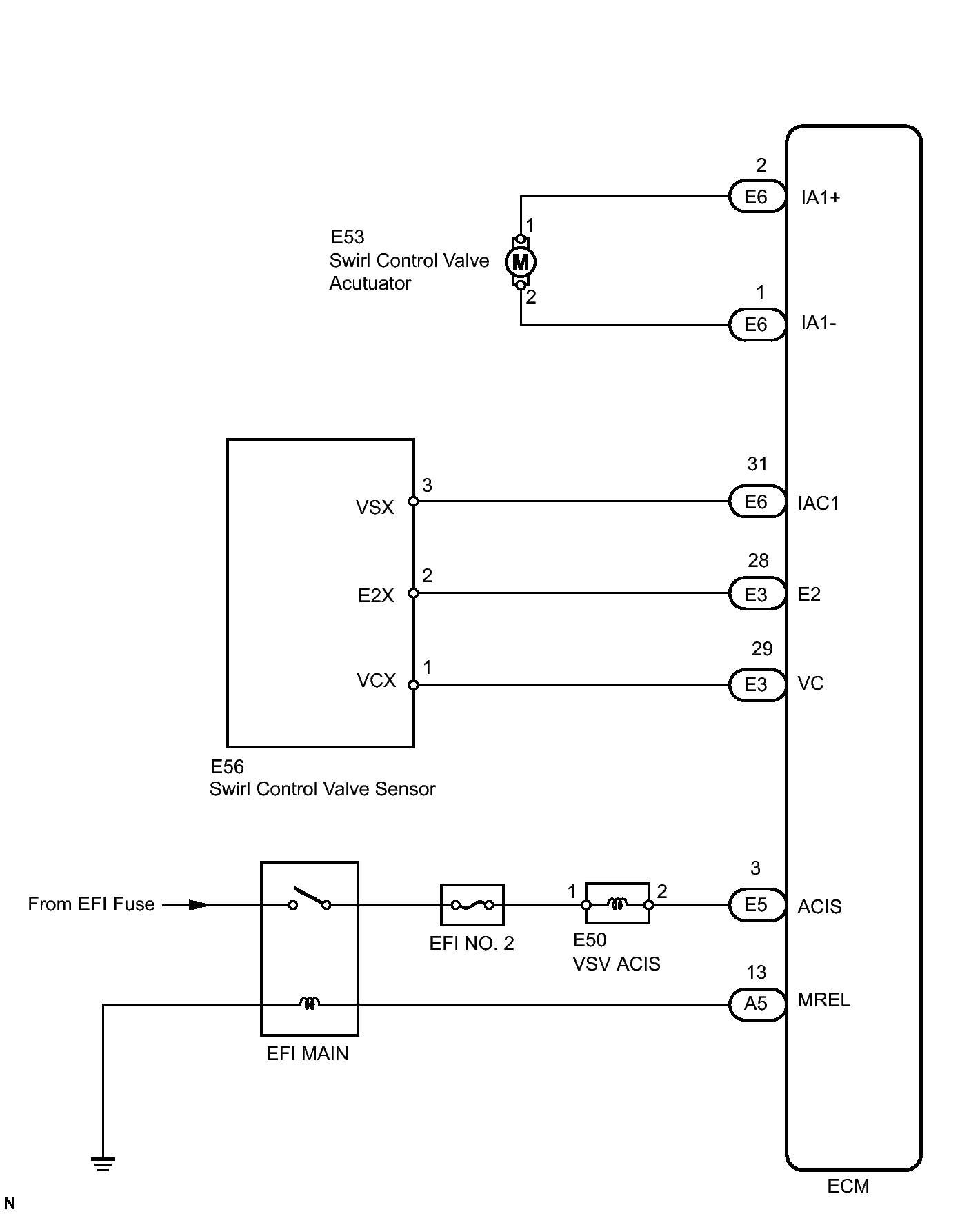

    Fig 2: Electrical Wiring Diagram
    GTY395007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
