ECM Power Source Circuit: Wiring Diagram

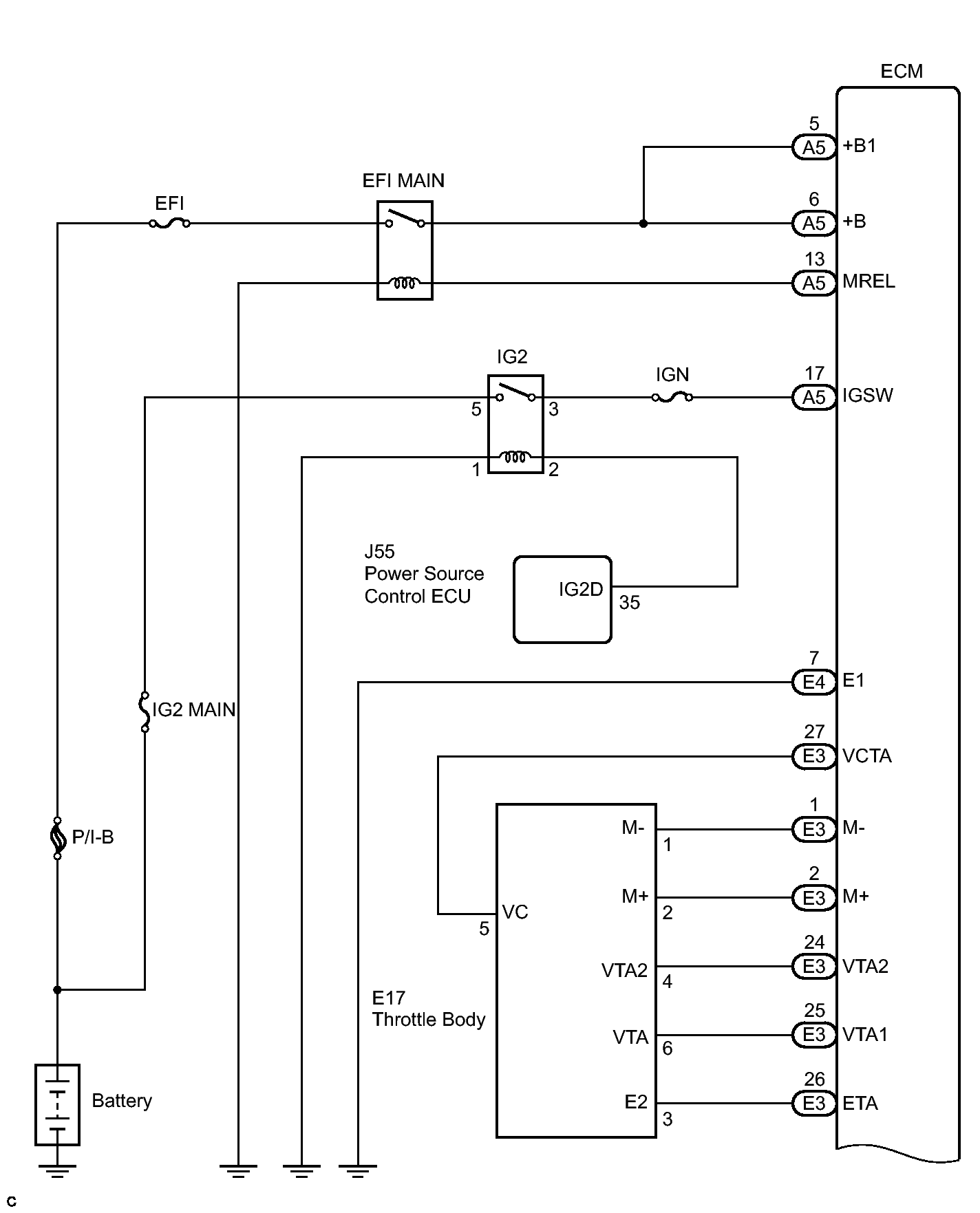

Fig 1: Identifying ECM Power Source Circuit- Wiring Diagram (1 Of 2)
GTY143691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

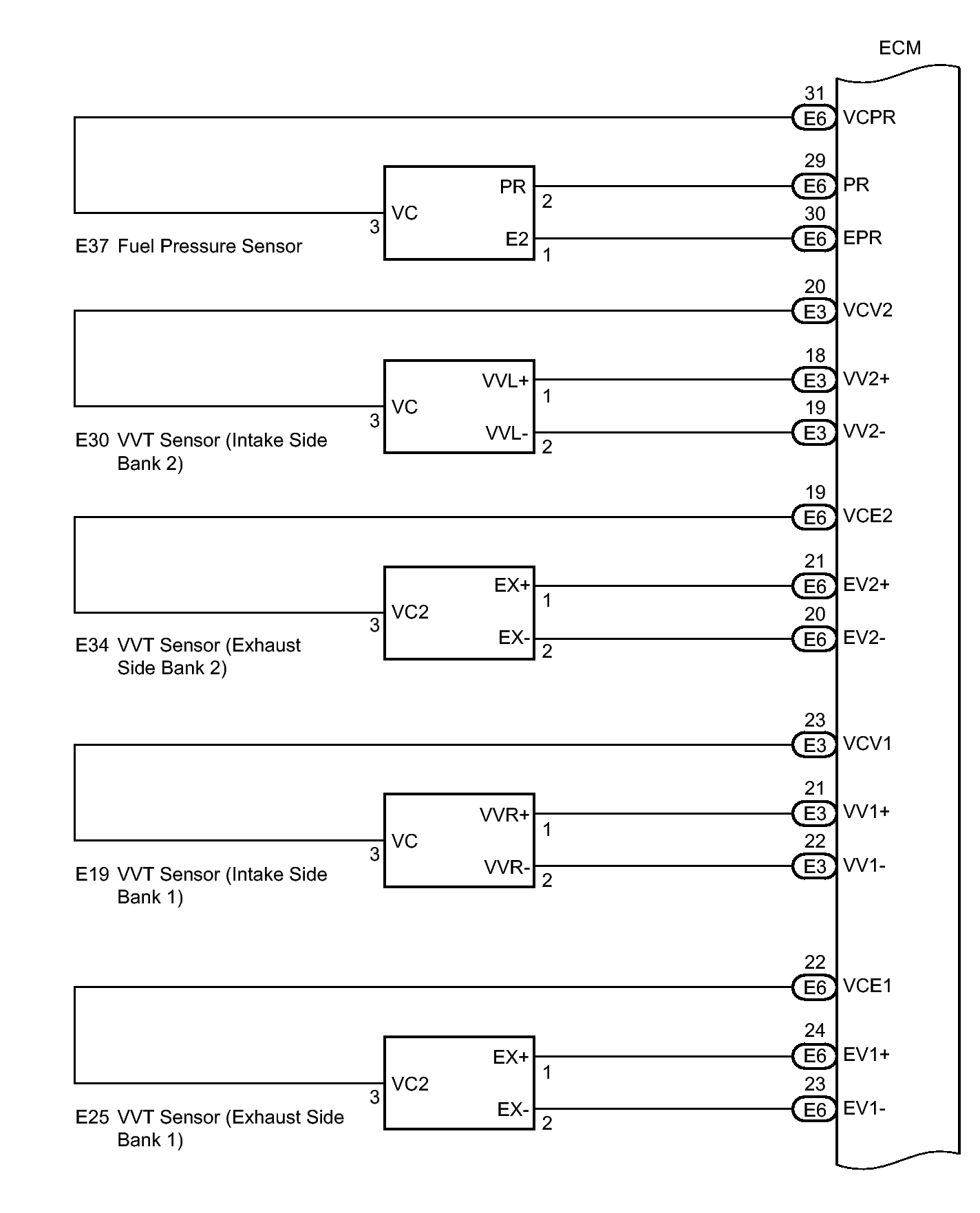

Fig 2: Identifying ECM Power Source Circuit Wiring Diagram (2 Of 3)
GTY128857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

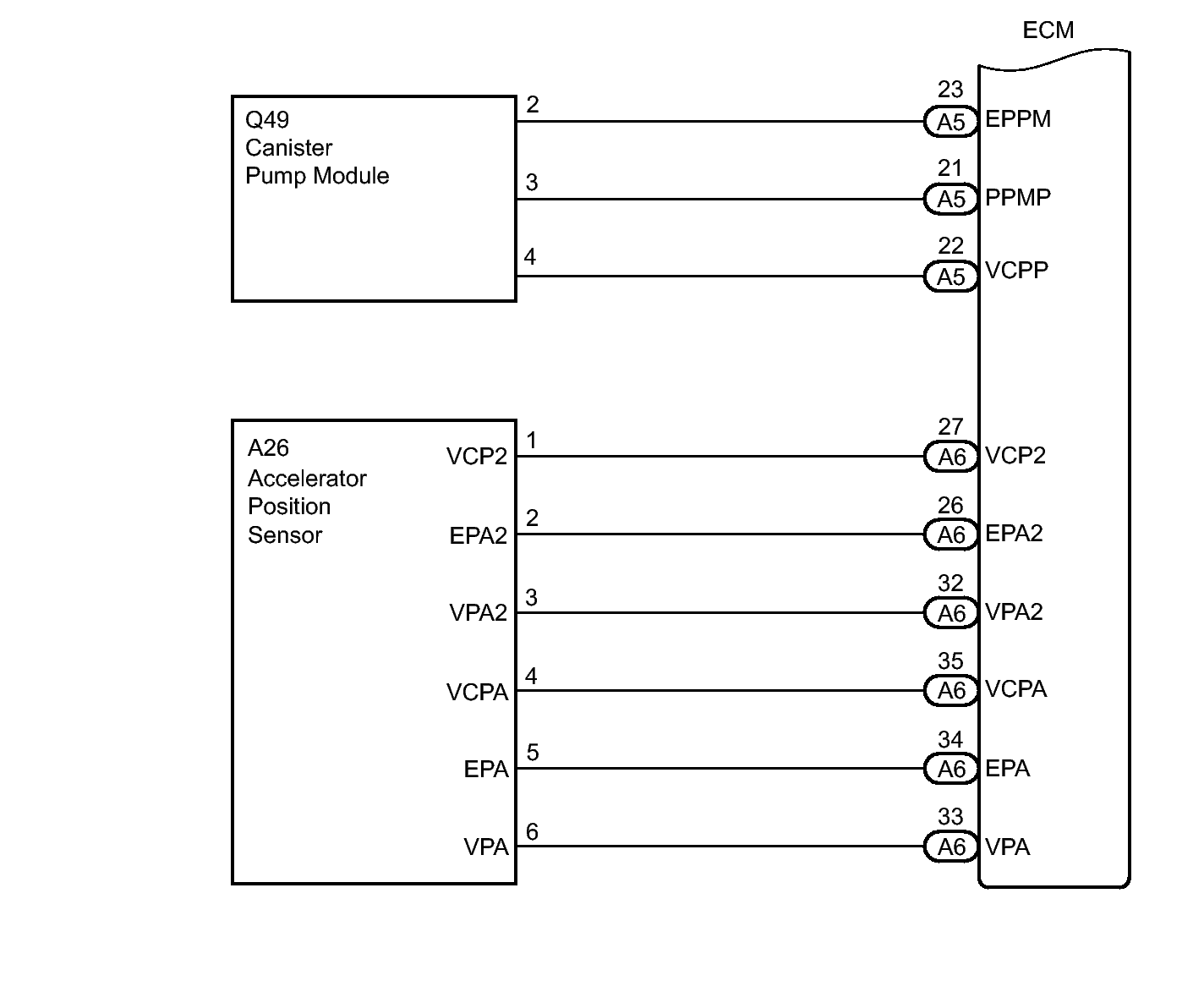

Fig 3: Identifying ECM Power Source Circuit Wiring Diagram (3 Of 3)
GTY133751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
