System Description

TOUCH SWITCH OUTLINE
1. Touch switch
  Touch switches are touch-sensitive (interactive) switches operated by touching the screen. When a switch is pressed, the outer glass bends in to contact the inner glass at the pressed position. By doing this, the voltage ratio is measured and the pressed position is detected.

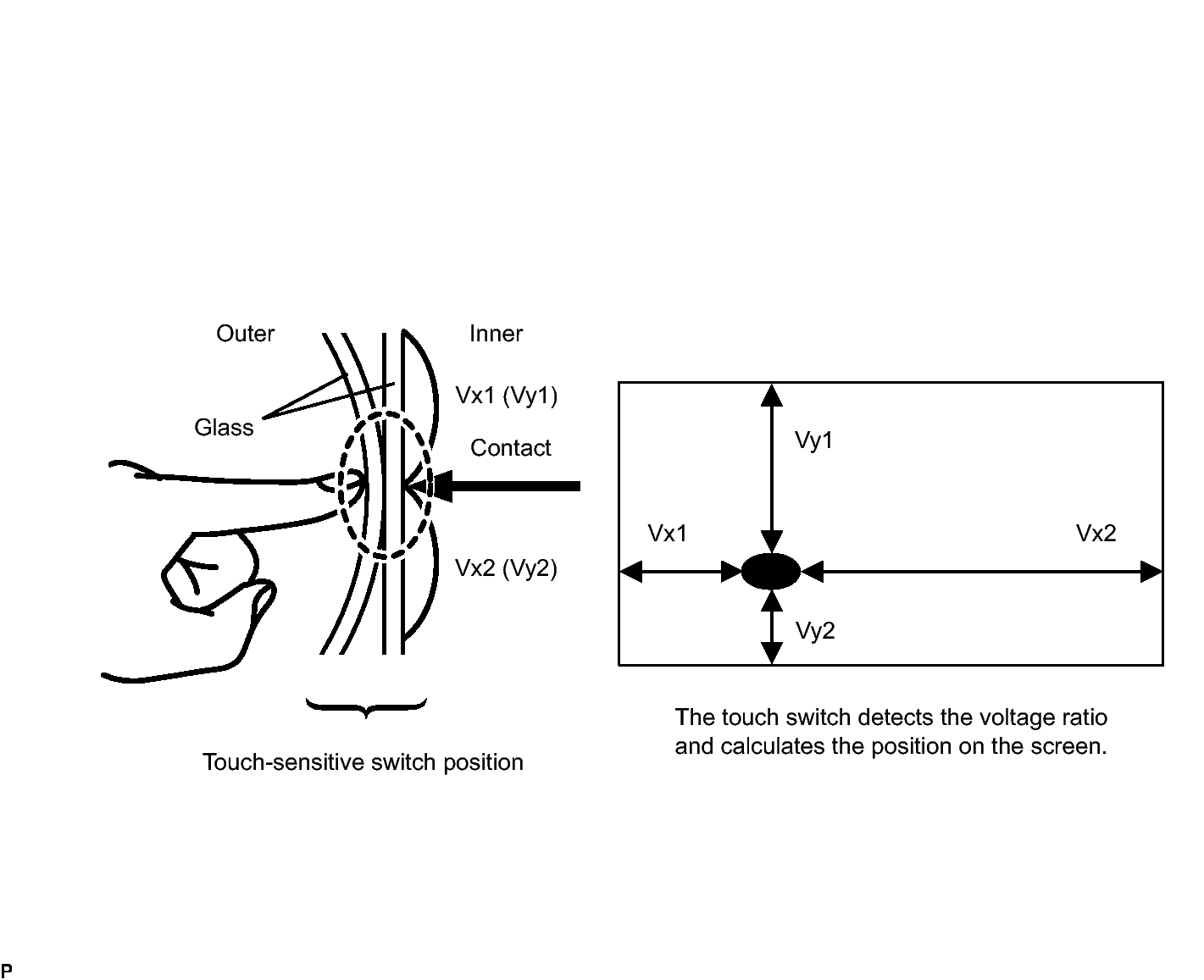

  Fig 1: Touch-Sensitive (Interactive) Switches
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DVD (Digital Versatile Disc) PLAYER OUTLINE (for Voice Recognition Function)
1. The navigation module board uses a laser pickup to read the digital signals recorded on a DVD.
  WARNING:
  Because the audio and visual system uses an invisible laser beam, do not look directly at the laser pickup. Be sure to only operate the audio and visual system as instructed.
  NOTE:
  - Do not disassemble any part of the navigation module board.
  - Do not apply oil to the navigation module board.
  - Do not insert anything but a DVD into the navigation module board.
DVD (Digital Versatile Disc) PLAYER OUTLINE (for DVD Changer Models)
1. The DVD player can only play DVD videos, DVD audio and video CDs that have any of the following marks:

  Fig 2: View Of Disc Identification Marks - Usable Discs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Precaution for use of discs
    NOTE:
    PAL or SECAM color television standard discs cannot be played (only NTSC discs can be played).

    Keep the discs away from dirt. Be careful not to damage the discs or leave fingerprints on them.

    Hold discs by the outer edge and center hole with the label side up.

    Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.

    Do not use odd-shaped CDs because these may cause player malfunctions.

    Do not use discs whose recording portion is transparent or translucent because they may not be inserted, ejected or played normally.

    DualDiscs that mate DVD recorded material on one side with CD digital audio material on the other cannot be played.
CD (Compact Disc) PLAYER OUTLINE
1. A compact disc player uses a laser pickup to read digital signals recorded on a compact disc (CD). By converting the digital signals to analog, it can play music and audio.
  WARNING:
  Do not look directly at the laser pickup because the CD player uses an invisible laser beam. Be sure to operate the player only as instructed.
  NOTE:
  - Do not disassemble any part of the CD player.
  - Do not apply oil to the CD player.
  - Do not insert anything but a CD into the CD player.
2. Usable discs
  1. This player can play only audio CDs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) that have any of the following marks:

    Fig 3: View Of Disc Marks
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Precautions for use of discs
  NOTE:
  - Copy-protected CDs cannot be played.
  - CD-Rs and CD-RWs may not be played depending on the recording conditions or characteristics of the discs, or due to damage, dirt or deterioration caused by leaving the discs in the cabin for a long time.
  - Unfinalized CD-Rs and CD-RWs cannot be played.
  - DualDiscs that mate DVD recorded material on one side with CD digital audio material on the other cannot be played.
  - Keep the discs away from dirt. Be careful not to damage the discs or leave your fingerprints on them.
  - Hold discs by the outer edge and center hole with the label side up.
  - Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.
  - If discs have adhesive tape, stickers, CD labels or any traces of such labels attached, the discs may not be ejected or player malfunctions may result.
  - Keep the discs away from direct sunlight. (Exposure to direct sunlight may cause deformation of the disc, making the disc unusable.)
  - Do not use odd-shaped CDs because these may cause player malfunctions.
  - Do not use discs whose recording portion is transparent or translucent because they may not be inserted, ejected or played normally.
  - Use only 4.7 in. (12 cm) CDs.
  - Do not use 3 in. (8 cm) CDs, either with or without adopters.
  HINT:
  - When it is cold or it is raining, if the windows mist up, mist and condensation may form in the player. In such cases, the CD sound may skip or stop in the middle of play. Ventilate or dehumidify the cabin for a while before using the player.
  - The CD sound may skip if the player experiences strong vibrations when the vehicle is driven on rough roads or similar uneven surface(s).
4. Cleaning
  NOTE:
  Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.

  Fig 4: View Of Disc Surface Cleaning Procedure
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. If dirt is on the disc surface, wipe it clean with a soft dry cloth such as an eyeglass cleaner for plastic lenses from the inside to the outside in a radial direction.
    NOTE:
    Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.

    Use of solvent such as a record spray, antistatic agent, alcohol, benzine and thinner or a chemical cloth may cause damage to the disc, making the disc unusable.

MP3/WMA OUTLINE

Playable MP3 file standards

Compatible standard	MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
Compatible sampling frequency	MPEG1 LAYER3: 32, 44.1, 48 (kHz) MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
Compatible bit rate	MPEG1 LAYER3: 32, 48, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps) MPEG2 LSF LAYER3: 8, 16, 32, 48, 64, 80, 96, 112, 128, 144, 160 (kbps) Compatible with VBR
Compatible channel mode	Stereo, joint stereo, dual channel, monaural

Playable WMA file standards

Compatible standard	WMA Ver. 7, 8, and 9
Compatible sampling frequency	32, 44.1, 48 (kHz)
Compatible bit rate (Only compatible with 2-channel playback)	Ver. 7, 8: CBR48, 64, 80, 96, 128, 160, 192 (kbps) Ver. 9: CBR48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)

ID3 tag and WMA tag
1. Additional textual information called ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.
  HINT:

  This player is compatible with the ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3. (Number of characters complies with ID3 Ver. 1.0 and 1.1.)
2. Additional textual information called WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.
Usable media
1. Only CD-ROMs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) can be used to play MP3/WMA files.
  NOTE:
  - CD-Rs and CD-RWs are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs will not play.
  - If there are fingerprints or scratches on a disc, the disc may not play or the CD sound may skip.
  - Some CD-Rs and CD-RWs may deteriorate if they are left in the cabin for a long time.
  - Keep CD-Rs and CD-RWs in an opaque case.

Usable media format

Disc format	CD-ROM Mode 1, CD-ROM XA Mode 2 Form1
File format	ISO9660 Level 1 and Level 2 (Joliet, Romeo)

HINT:

As for MP3/WMA files written in any unlisted format, the contents of the files may not be played normally or the file names or folder names may not be displayed correctly.
This player is compatible with multi-session discs and can play CD-Rs and CD-RWs on which MP3/WMA files are added. However, only the first session can be played.
Discs whose first session includes both music data and MP3 or WMA format data cannot be played.

Standard and restrictions

Maximum directory levels	8 levels
Maximum number of characters for a folder name/file name	32 characters
Maximum number of folders	192 (Including empty folders, route folders, and folders that do not contain MP3/WMA files)
Maximum number of files in a disc	255 (Including non-MP3/WMA files)

File names
1. Only files with an extension of ".mp3" or ".wma" can be recognized and played as MP3 or WMA files.
2. Save MP3 or WMA files with an extension of ".mp3" or ".wma".
  NOTE:
  If non-MP3 or non-WMA files are saved with an extension of ".mp3" or ".wma", those files may be wrongly recognized as MP3 or WMA files and played. A loud noise may occur and damage to the speakers may result.

USB AUDIO SYSTEM FUNCTION OUTLINE

The No. 1 stereo jack adapter assembly is equipped with a USB terminal. Connecting a USB device or "iPod" to the No. 1 stereo jack adapter assembly allows music files to be played. Not only is it possible to play music from a USB device with audio functions, is also possible to play MP3 or WMA music files that are stored on a USB device. In addition, "iPod" control software is installed, allowing file selection from playlists and operation using shuffle mode.
HINT:
- Visual contents of an "iPod" cannot be played.
- Operation through the controls of a USB device or "iPod" cannot be performed while it is connected.

USB audio system compatible model

USB Device

The following device formats can be used:

Compatible USB device formats

USB communication format: USB 2.0 FS (12MBPS)
File format: FAT16/32 (Windows)
Class: Mass storage class

MP3 and WMA files written in any format other than those listed above may not play correctly, and their names and folder names may not be displayed correctly.

Items related to standards and limitations are as follows:

Maximum directory hierarchy: 8 levels
Maximum number of folders in device: 999 (including the root folder)
Maximum number of files in device: 65025
Maximum number of files per folder: 255

"iPod"

"iPod" is a trademark of Apple Inc., registered in the U.S. and other countries.

SUPPORTED "IPOD" MODELS AND FIRMWARE VERSIONS

Supported "iPod" Model	Supported Firmware Version
"iPod" 5G	Ver. 1.2 or higher
"iPod Nano" 1G	Ver. 1.3 or higher
"iPod Nano" 2G	Ver. 1.1.2 or higher
"iPod Nano" 3G	Ver. 1.0 or higher
"iPod touch"	Ver. 1.1 or higher
"iPod classic"	Ver. 1.0 or higher

UNSUPPORTED "IPOD" MODELS

Unsupported Models	"iPod shuffle"
	"iPhone"
	"iPod" 1G, 2G, 3G, 4G
	"iPod mini"

Items related to standards and limitations are as follows:

Maximum number of lists in device: 9999
Maximum number of songs in device: 65535
Maximum number of songs per list: 65535

HINT:

"iPod" models and firmware versions that are not listed in "Supported "iPod" Models and Firmware Versions" may not function, or may not function correctly.
Depending on the generation of "iPod" used, response to commands from the vehicle may be delayed.

"Bluetooth" OUTLINE

"Bluetooth" is a trademark owned by Bluetooth SIG, Inc.
"Bluetooth" is a wireless connection technology that uses the 2.4 GHz frequency band.
HINT:

The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

Hands-free function

The "Bluetooth" built-in radio receiver and a "Bluetooth" compatible cellular phone*1 can be connected using a "Bluetooth" wireless connection. This enables use of the hands-free function on the cellular phone even the phone may be in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.

*1: Some versions of "Bluetooth" compatible cellular phones may not function.

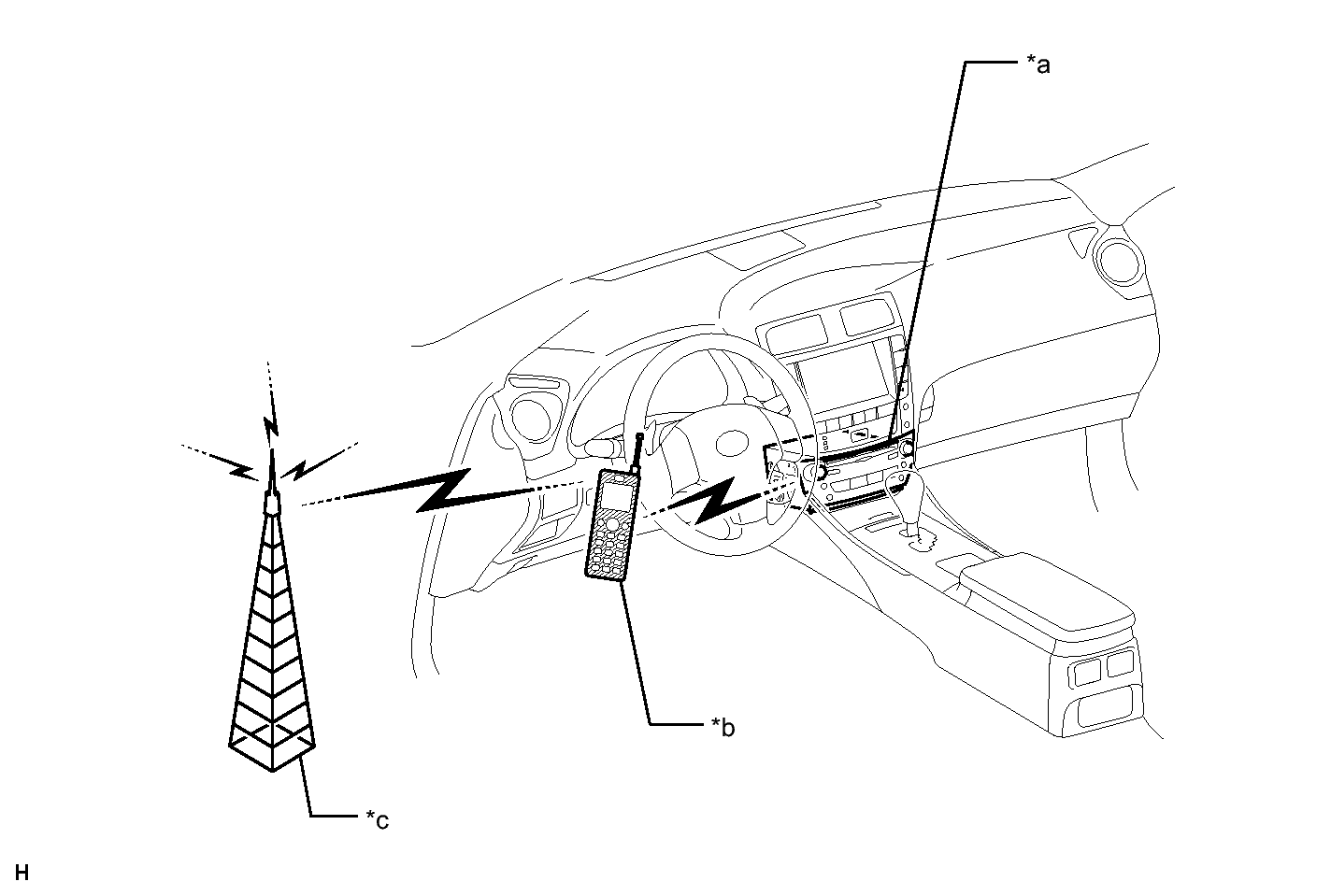

Fig 5: Radio Receiver Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Radio Receiver Assembly (Built-in "Bluetooth" receiver antenna)	*b	Cellular Phone ("Bluetooth" compatible type)
*c	Cellular Tower	-	-

COMMUNICATION SYSTEM
1. MOST Network Outline

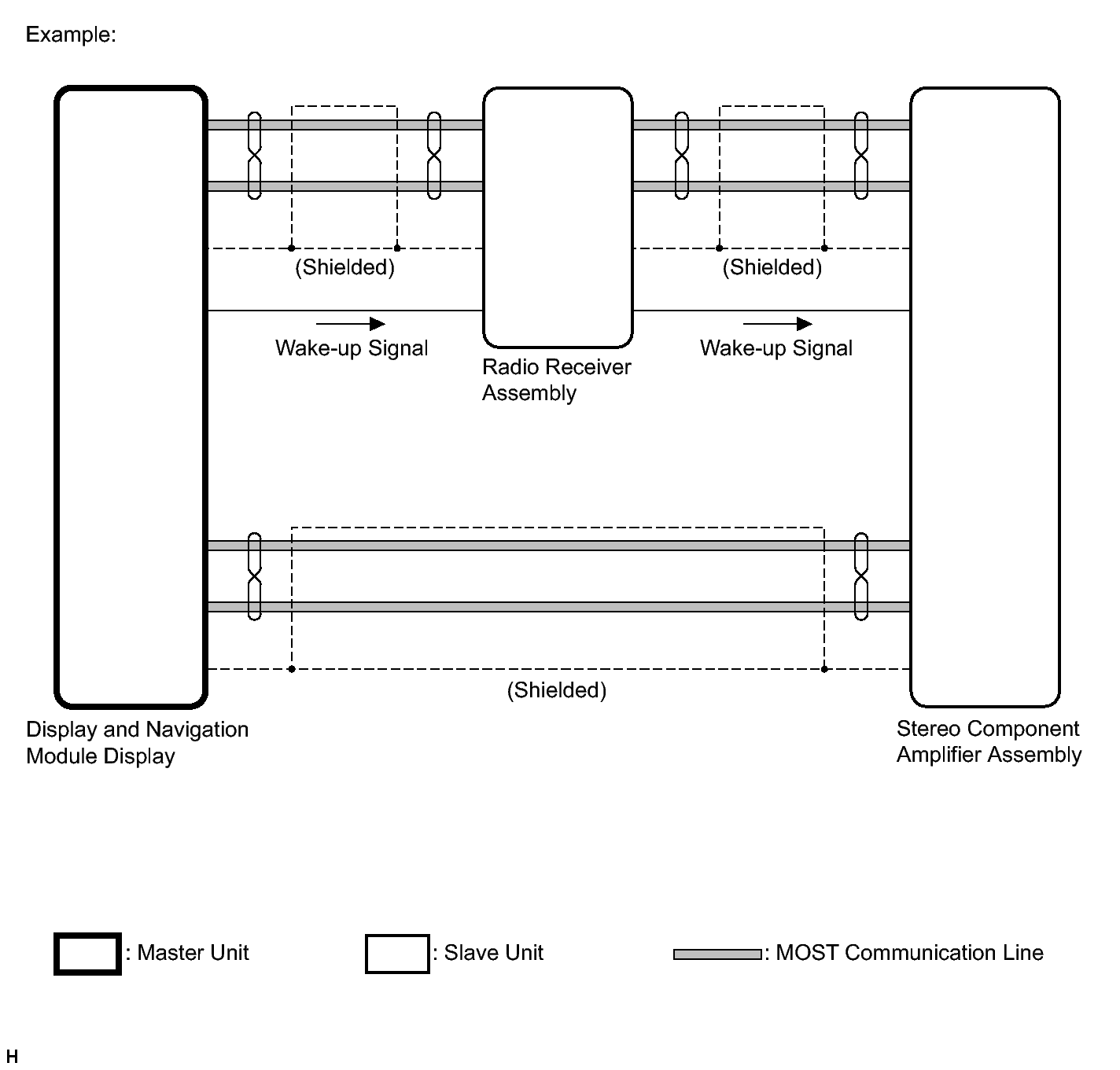

  Fig 6: Communication System (MOST Network Outline)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Audio and visual system components communicate with each other via the MOST network.
  2. The MOST network uses a shielded twisted pair of wires for its communication lines.
  3. The master unit of the MOST network is the display and navigation module display.
  4. MOST communication lines connect each slave unit centering around the master unit to form a MOST network ring.
  5. The master unit sends a wake-up signal to activate each slave unit connected to the MOST network.
    HINT:

    If a short or open circuit occurs in the MOST circuit, communication will be interrupted and the system will not operate normally.
2. AVC-LAN Outline

  Fig 7: Communication System (AVC-LAN Outline)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Components of the audio and visual system communicate with each other via the AVC-LAN.
  2. The AVC-LAN uses a twisted pair of wires for its communication lines.
  3. The master unit of the AVC-LAN is the display and navigation module display.
    HINT:

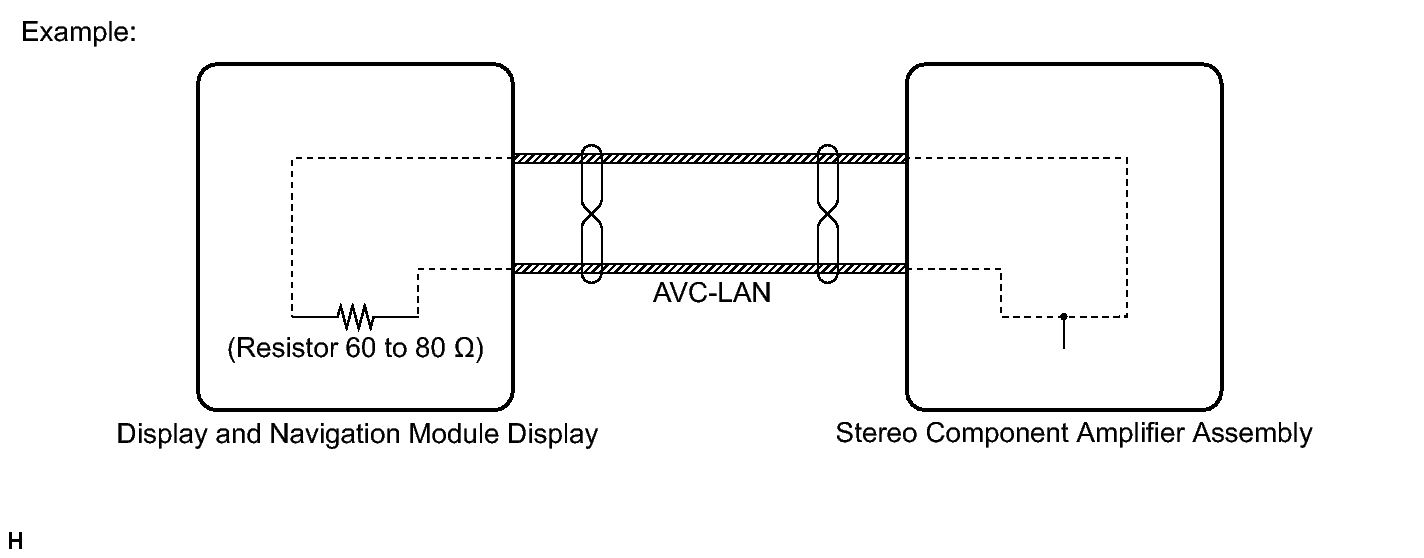

    - The display and navigation module display has enough resistance (60 to 80 Ω) necessary for communication.
    - If a short or open circuit occurs in the AVC-LAN circuit, communication is interrupted and the system will not operate normally.
Automatic Sound Levelizer (ASL) FUNCTION OUTLINE
1. The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases). The ASL adjusts the volume level based upon vehicle speed signals that it receives from the combination meter assembly.
DIAGNOSTIC FUNCTION OUTLINE
1. The audio and visual system has a diagnostic function (the result will be displayed on the master unit or the Techstream).

DIAGNOSIS DISPLAY DETAILED DESCRIPTION

HINT:

This information contains a detailed description of displays in diagnostic mode.
Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

Service Menu Screen

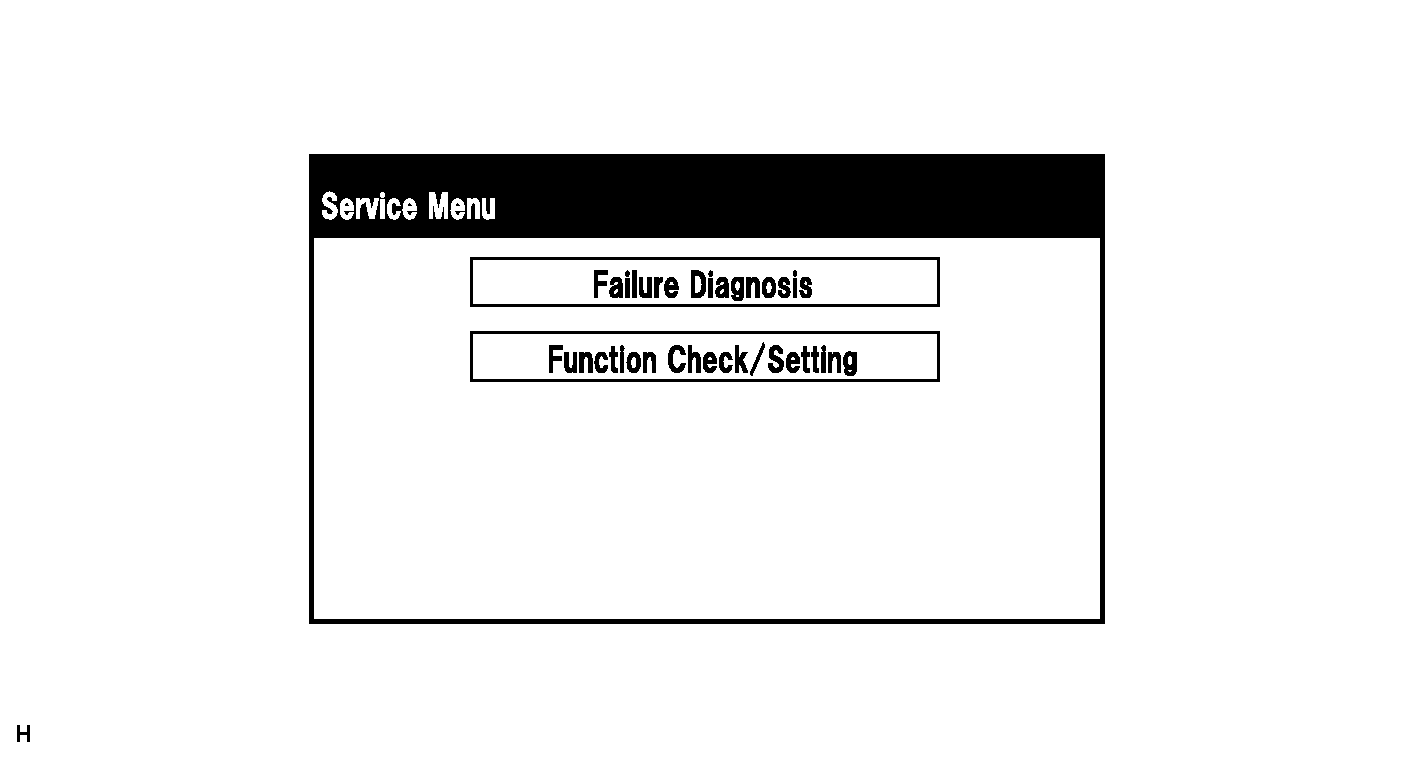

Fig 8: Identifying Service Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each item is grayed out or not displayed based on the device settings.

Failure Diagnosis Screen

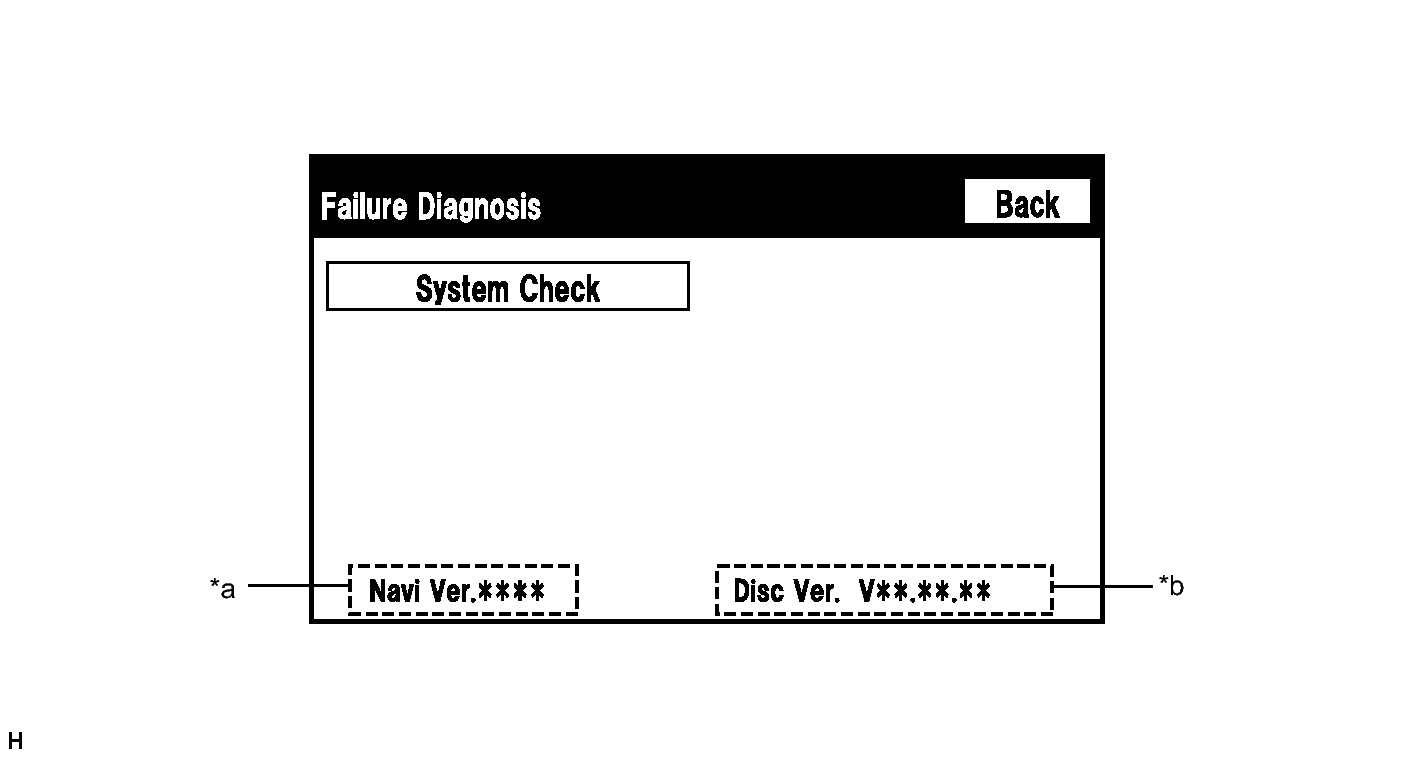

Fig 9: Failure Diagnosis Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each item is grayed out or not displayed based on the device settings.

SCREEN DESCRIPTION

Display	Content
*a: Navi Ver.	Navigation application version
*b: Disc Ver.	Data disc version

System Check Mode Screen

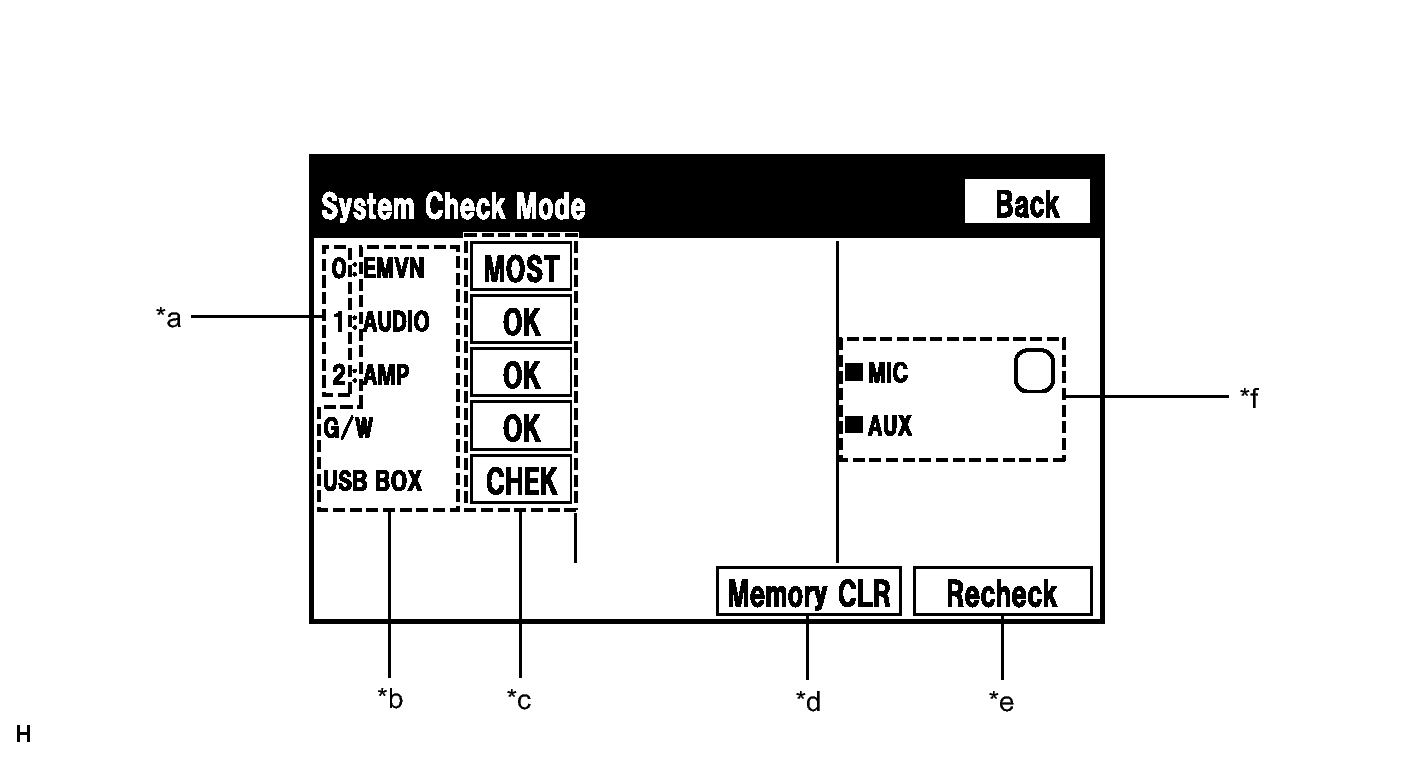

Fig 10: System Check Mode Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a: Node position number for devices connected to the MOST network.
HINT:

MOST node position numbers are provided for devices connected to the MOST network.

*b: Device Name List No. 1

HINT:

Device Name List No. 1 displays some of the devices that make up the audio and visual system.

The names of the components from Device Name List No. 1 are shown in the following table.

Name	Component	Connection Method
EMVN	Display and navigation module display	-
AUDIO	Radio receiver assembly	Communication line for MOST network
AMP	Stereo component amplifier assembly	Communication line for MOST network
G/W	Network gateway ECU	Communication line for AVC-LAN
USB BOX	Multi-media interface ECU	Communication line for AVC-LAN

*c: Check Result

HINT:

Result codes for all devices are displayed.
When "MOST" is displayed for the result, press "MOST" on the multi-display to display the "MOST Line Check" screen.

Result	Meaning	Action
OK	The device does not respond with a DTC.	-
MOST	MOST communication error	Perform "MOST Line Check" to check the connection of each device on the MOST network.
EXCH	The device responds with a "replace"-type DTC.	Look up the DTC in "Unit Check Mode" and replace the device.
CHEK	The device responds with a "check"-type DTC.	Look up the DTC in "Unit Check Mode".
NCON	The device was previously present, but does not respond in diagnostic mode.	- Check the power supply wire harness of the device. - Check the AVC-LAN or MOST network for the device.
NRES	The device responds in diagnostic mode, but gives no DTC information.	- Check the power supply wire harness of the device. - Check the AVC-LAN or MOST network for the device.

*d: Memory Clear
HINT:
- Present and history DTCs and registered connected device names are cleared.
- Press the "Memory CLR" switch for 3 seconds.

*e: Recheck
HINT:
- A system check will be performed again after the memory is cleared.
- The "Recheck" switch will dim during a system check.

*f: Device Name List No. 2

HINT:

Device Name List No. 2 displays some of the devices that make up the audio and visual system.

The names of the components from Device Name List No. 2 are shown in the following table.

Name	Component	Connection Method
MIC	Telephone microphone assembly	Vehicle wire harness
AUX	No. 1 stereo jack adapter assembly	Vehicle wire harness

Unit Check Mode Screen

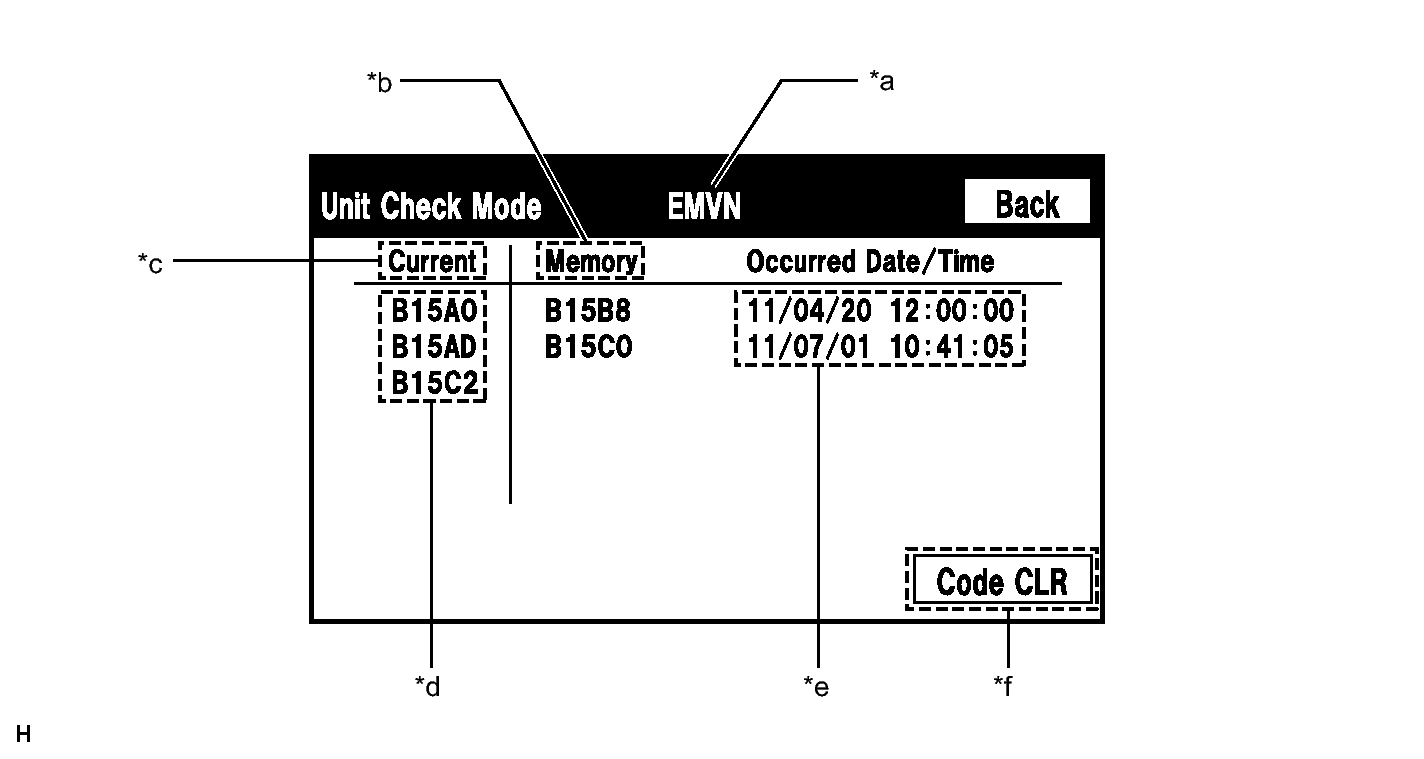

Fig 11: Unit Check Mode Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SCREEN DESCRIPTION

Display	Content
*a: Device name	Target device
*b: History DTC	Diagnostic memory results and stored DTCs are displayed.
*c: Current DTC	DTCs output in the service check are displayed.
*d: DTC	DTC (Diagnostic Trouble Code)
*e: Timestamp	The time and date of history DTCs are displayed. (The year is displayed in 2-digit format.)
*f: Diagnosis clear switch	Pushing this switch for 3 seconds clears the diagnostic memory data of the target device. (Both response to diagnostic system check result and the displayed data are cleared.)

MOST Line Check Screen

HINT:

The inspection will be performed at the time the screen changes from "System Check Mode" to "MOST Line Check".
The master unit checks the connection of each device on the MOST network.

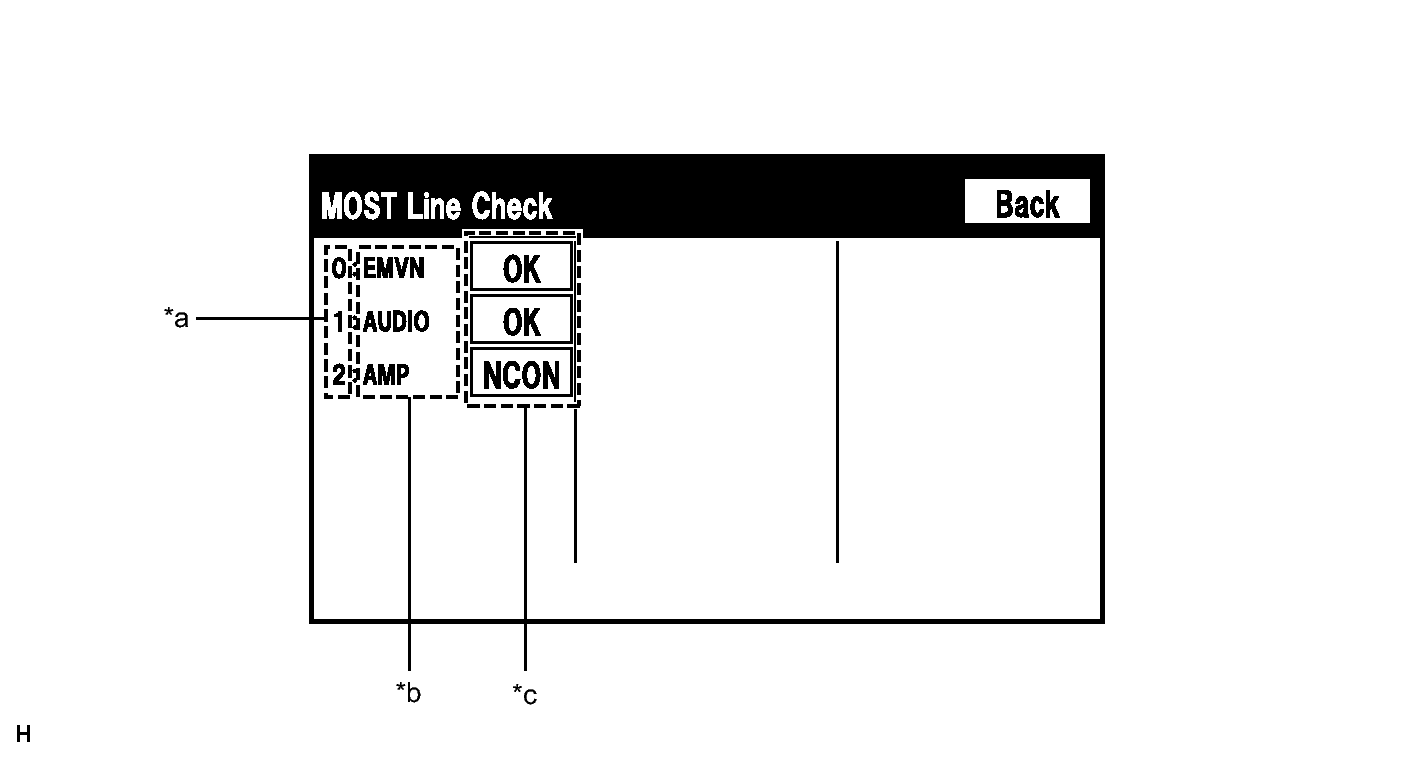

Fig 12: MOST Line Check Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a: Node position number for devices connected to the MOST network.

*b: Device Name List

HINT:

Device Name List displays some of the devices that make up the audio and visual system.

The names of the components from Device Name List are shown in the following table.

Name	Component
EMVN	Display and navigation module display
AUDIO	Radio receiver assembly
AMP	Stereo component amplifier assembly

*c: Check Result

HINT:

The master unit displays the check result on the screen based on the response information from each slave unit.

Result codes for all devices are displayed.

Result	Meaning
OK	There was a response for the connection check during the MOST line check.
NCON	There was no response for the connection check during the MOST line check.

The device name and result will not be displayed if there is no system registration record and no response for the connection check during the MOST line check even if the device is connected to the MOST network.

Function Check/Setting Screen

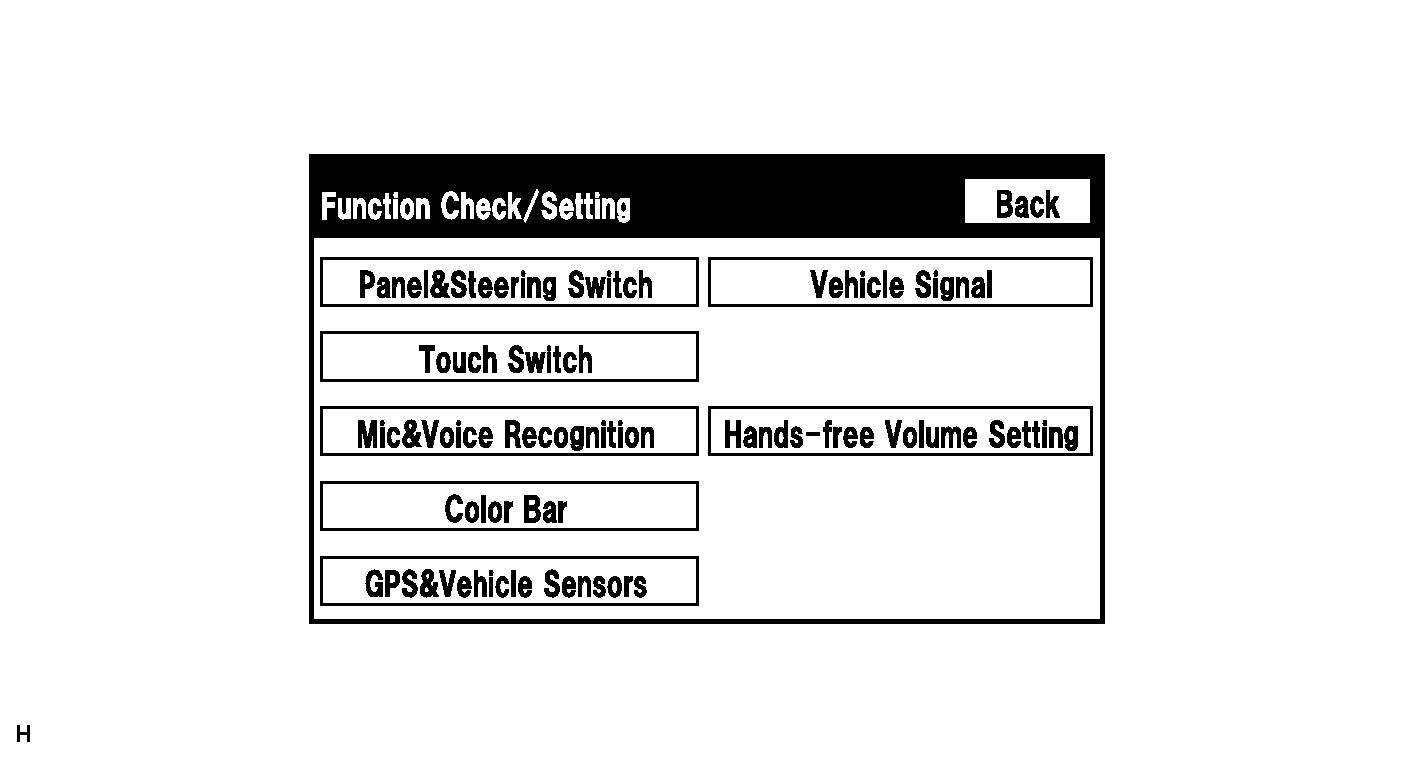

Fig 13: Identifying Function Check/Setting Screen

HINT:

Each item is grayed out or not displayed based on the device settings.

Microphone & Voice Recognition Check Screen

Fig 14: Microphone & Voice Recognition Check Screen

SCREEN DESCRIPTION

Display	Content
*a: Microphone input level meter	Monitors the microphone input level every 0.1 sec. and displays the results in 8 different levels.
*b: Recording switch	Starts recording.
*c: Stop switch	Stops recording and playing.
*d: Play switch	Plays the recorded voice.
*e: Recording indicator	Comes on while recording.

HINT:

The microphone is active at all times when this screen is displayed.
While recording or playing, the switches other than the stop switch cannot be pushed.
When no recording is present, the play switch cannot be pushed.
Recording will stop after 5 seconds or when the stop switch is pushed.
Select the recording switch with the blower motor of the air conditioning system stopped. If an outlet of the air conditioning system is facing the microphone, noise may be recorded.

GPS Information Screen

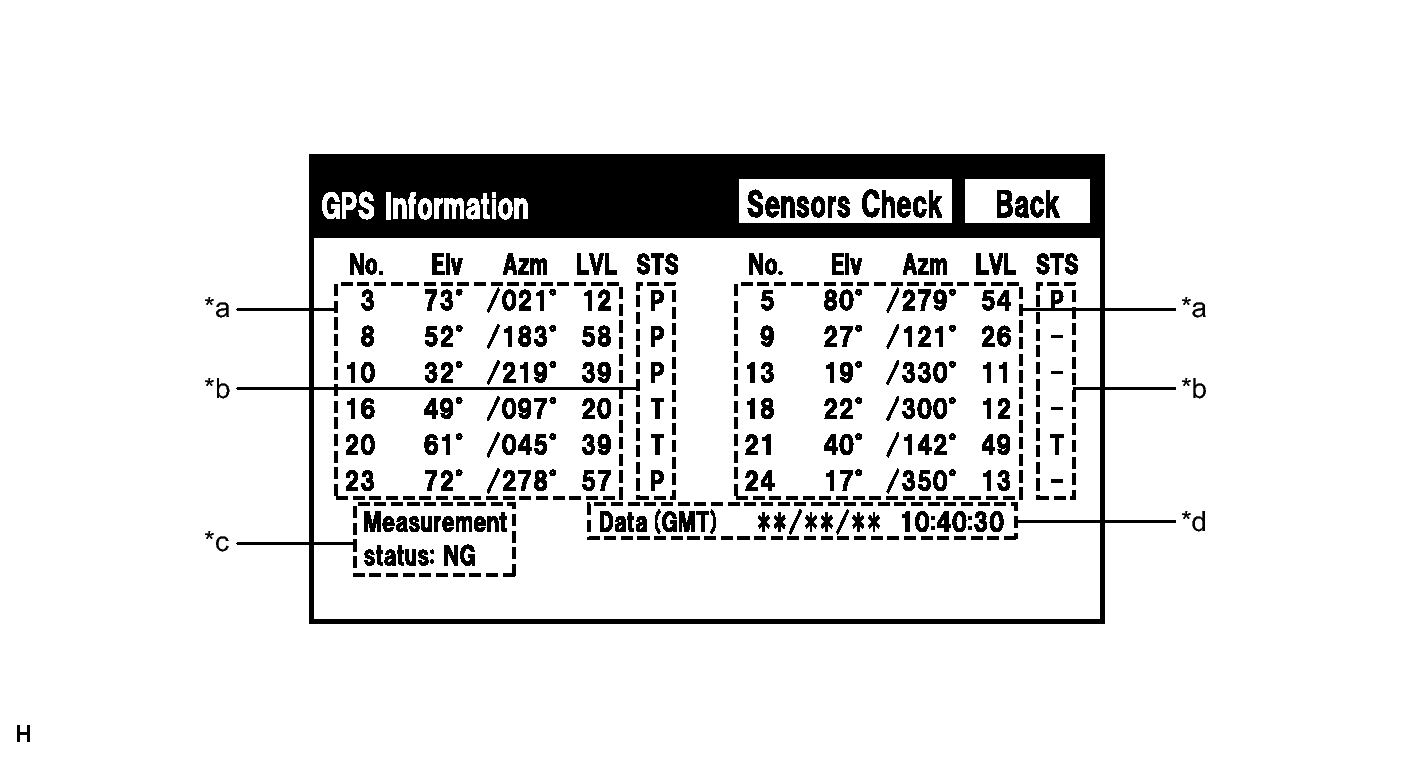

Fig 15: GPS Information Screen

*a: Satellite information
HINT:

Information from a maximum of 12 satellites is displayed on the screen. This information includes the target GPS satellite number, elevation angle, direction and signal level.

*b: Receiving condition

SCREEN DESCRIPTION

Display	Content
T	The system is receiving a GPS signal, but is not using it for location.
P	The system is using the GPS signal for location.
-	The system cannot receive a GPS signal.

*c: Measurement information

SCREEN DESCRIPTION

Display	Content
2D	2-dimensional location method is being used.
3D	3-dimensional location method is being used.
NG	Location data cannot be used.
Error	Reception error has occurred.
-	Any other state.

*d: Date information

SCREEN DESCRIPTION

Display	Content
Date	The date/time information obtained from GPS signal is displayed in Greenwich Mean Time (GMT). The last 4 digits are displayed.

Vehicle Sensors Screen

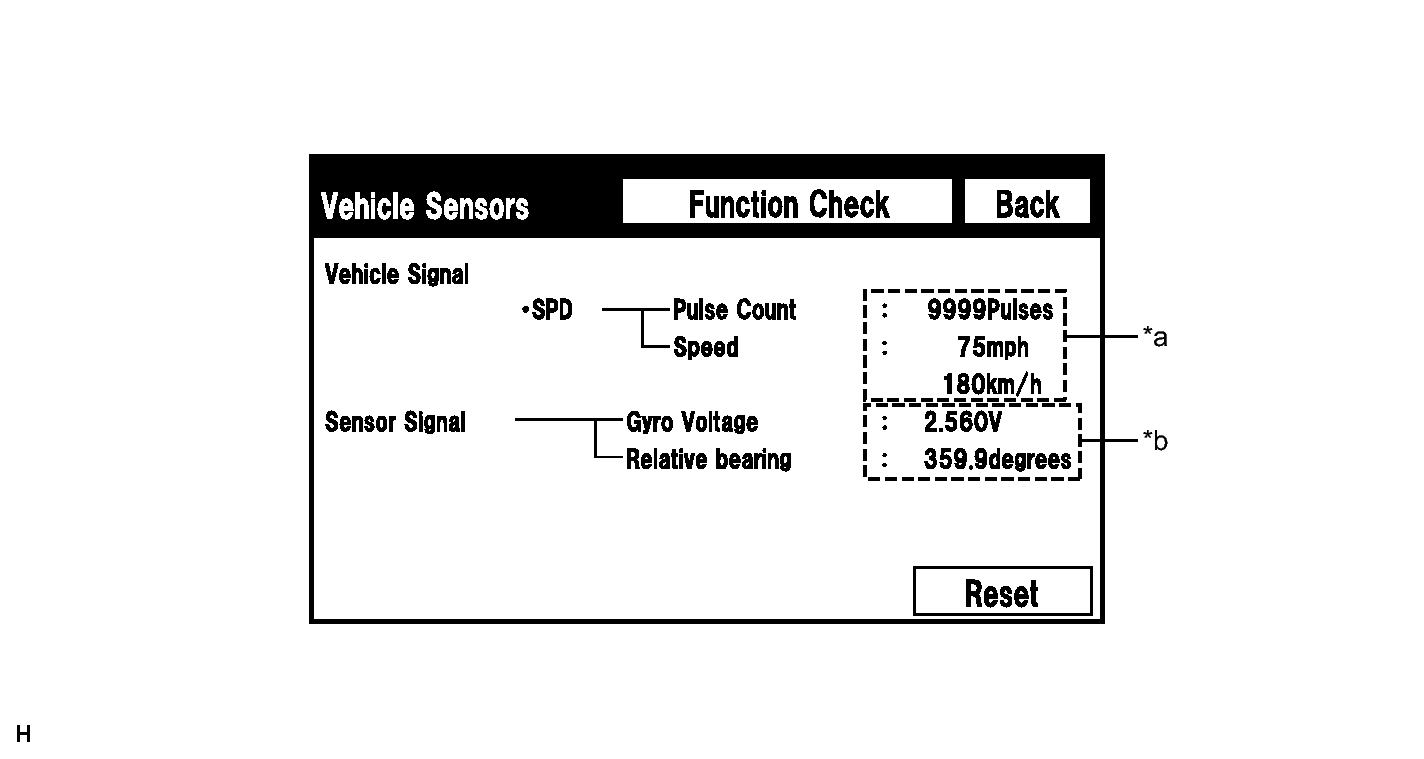

Fig 16: Vehicle Sensors Screen

VEHICLE SIGNAL

Display	Content
*a: SPD	SPD signal condition is displayed.

SENSOR SIGNAL

Display	Content
*b: Gyro sensor	Gyro sensor output condition is displayed.

HINT:

Signals are updated once per second only when vehicle sensor signals are changed.

Vehicle Signal Check Mode Screen

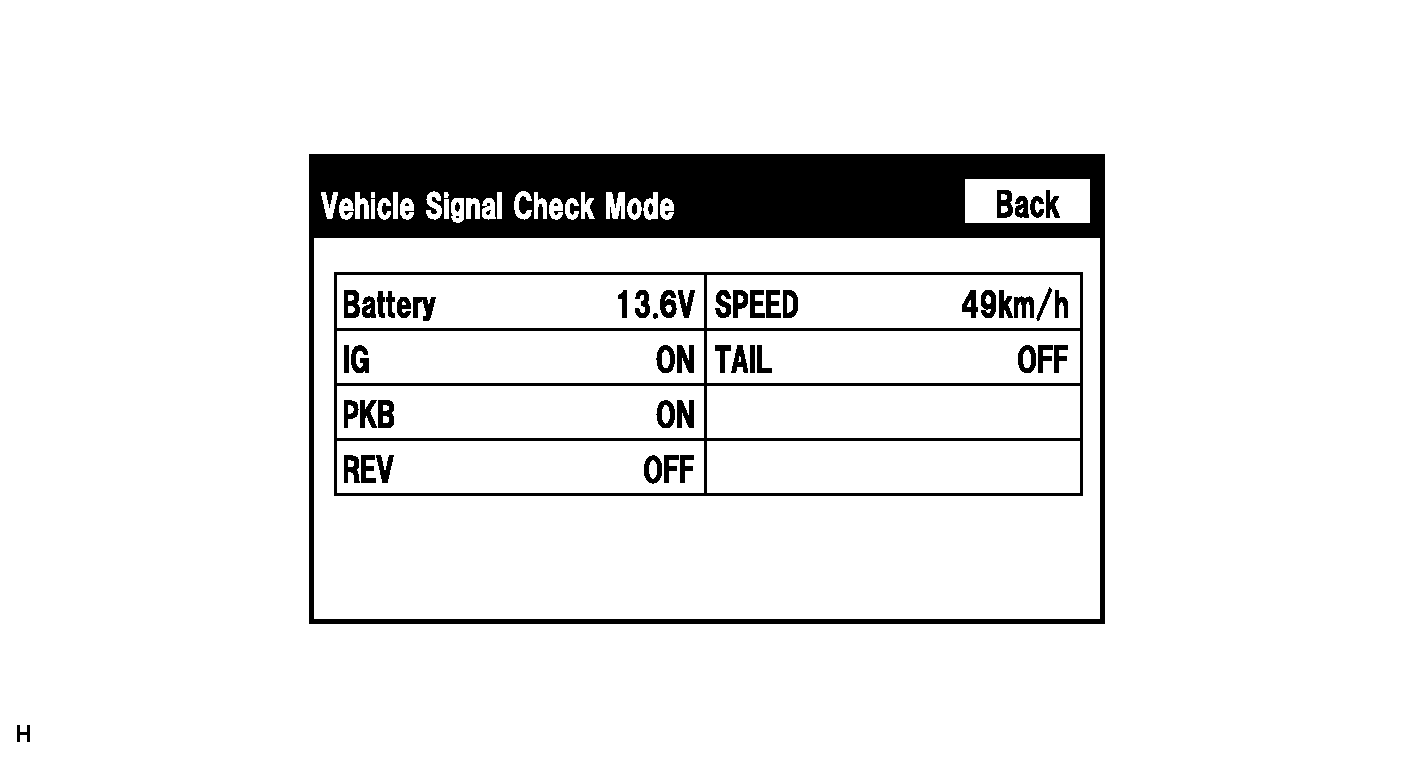

Fig 17: Screen Display - Vehicle Signal Check Mode

SCREEN DESCRIPTION

Display	Content
Battery	Battery voltage is displayed.
IG	Engine switch ON/OFF state is displayed.
PKB	Parking brake ON/OFF state is displayed.
REV	Reverse signal ON/OFF state is displayed.
SPEED	Vehicle speed is displayed in km/h.
TAIL	TAIL signal (Light control switch) ON/OFF state is displayed.

HINT:

Only items sending vehicle signals will be displayed.
This screen is updated once per second when input signals to the vehicle are changed.
