System Diagram

  1. MOST Communication Line

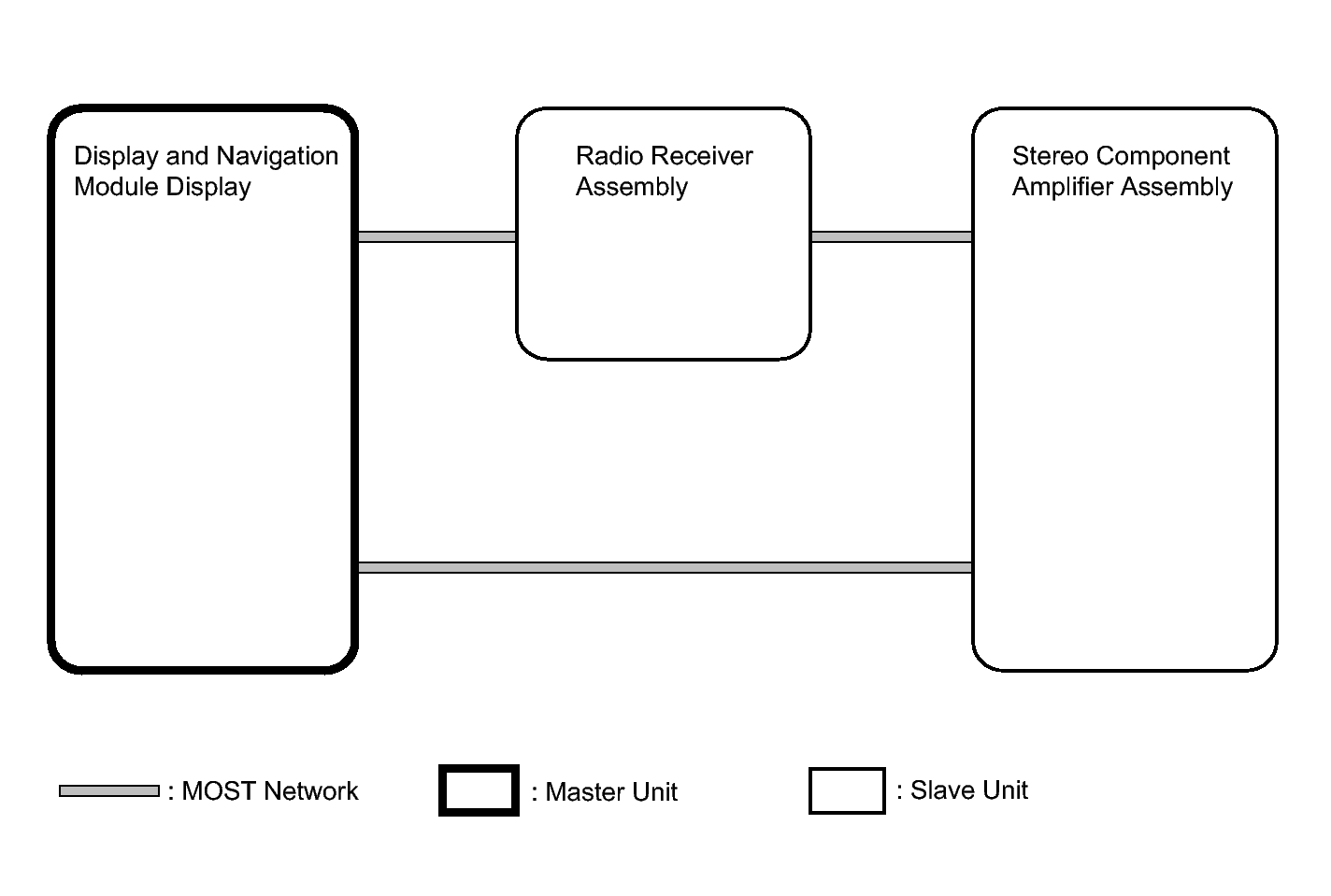

    Fig 1: Audio And Visual System (MOST Communication Line) System Diagram
    GTY394929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN Communication Line

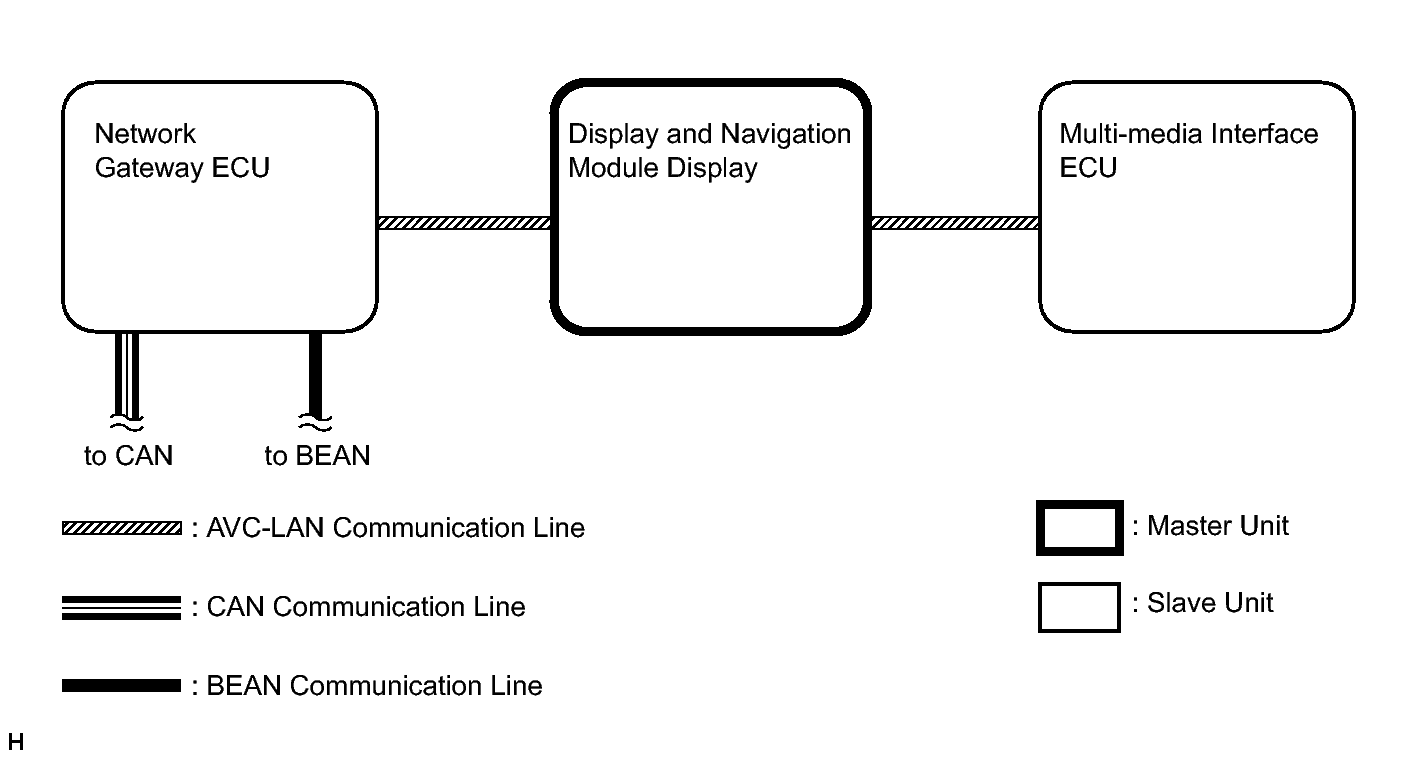

    Fig 2: Audio And Visual System (AVC-LAN Communication Line) System Diagram
    GTY393398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Others

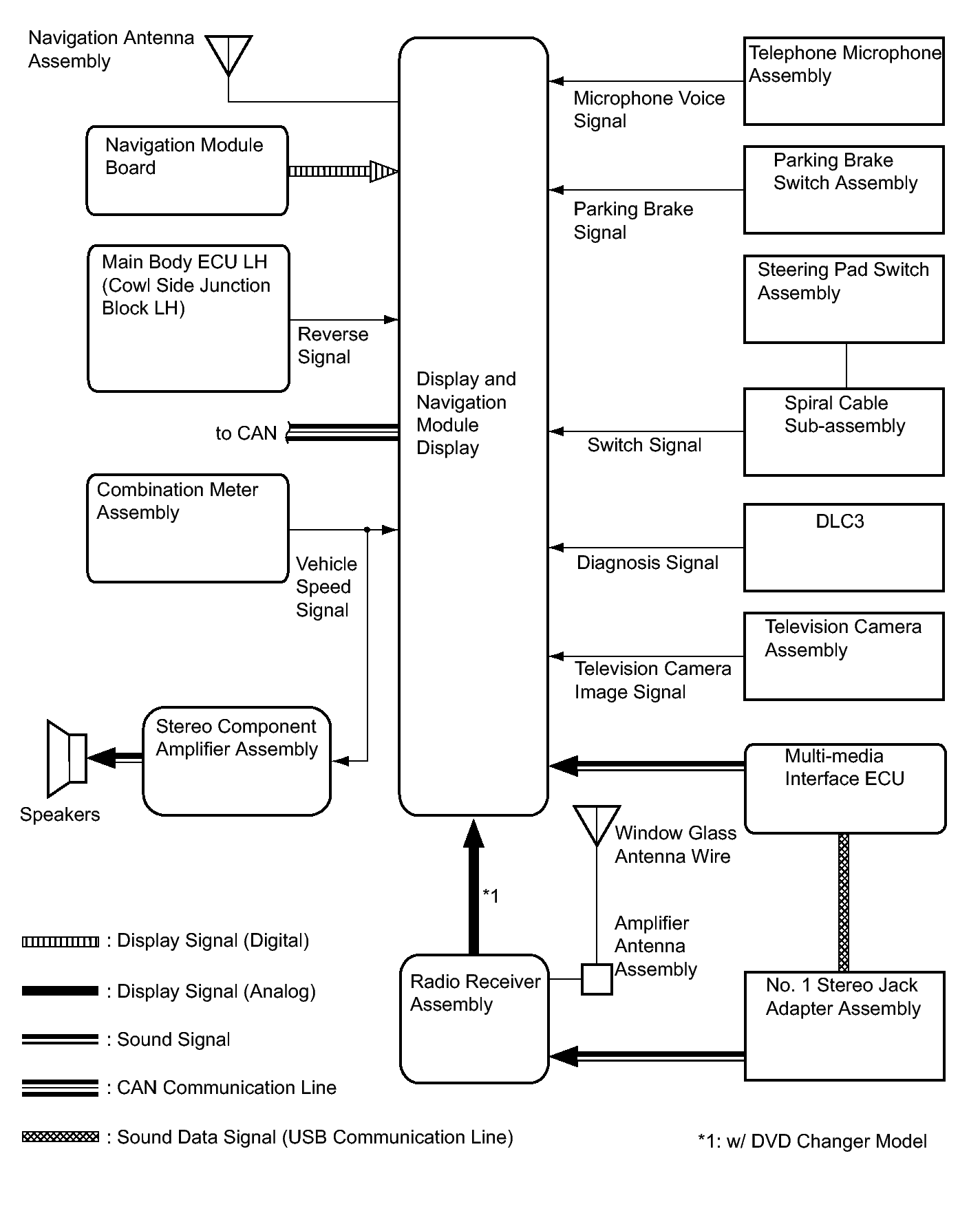

    Fig 3: Audio And Visual System (Others) System Diagram
    GTY394659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
