Multiplex Communication System (Diagnostic Codes)
>>
Multiplex Communication System
>>
DTC B1280: Left Side Junction Block ECU Communication Stop
>>
Wiring Diagram
DTC B1280: Left Side Junction Block ECU Communication Stop: Wiring Diagram

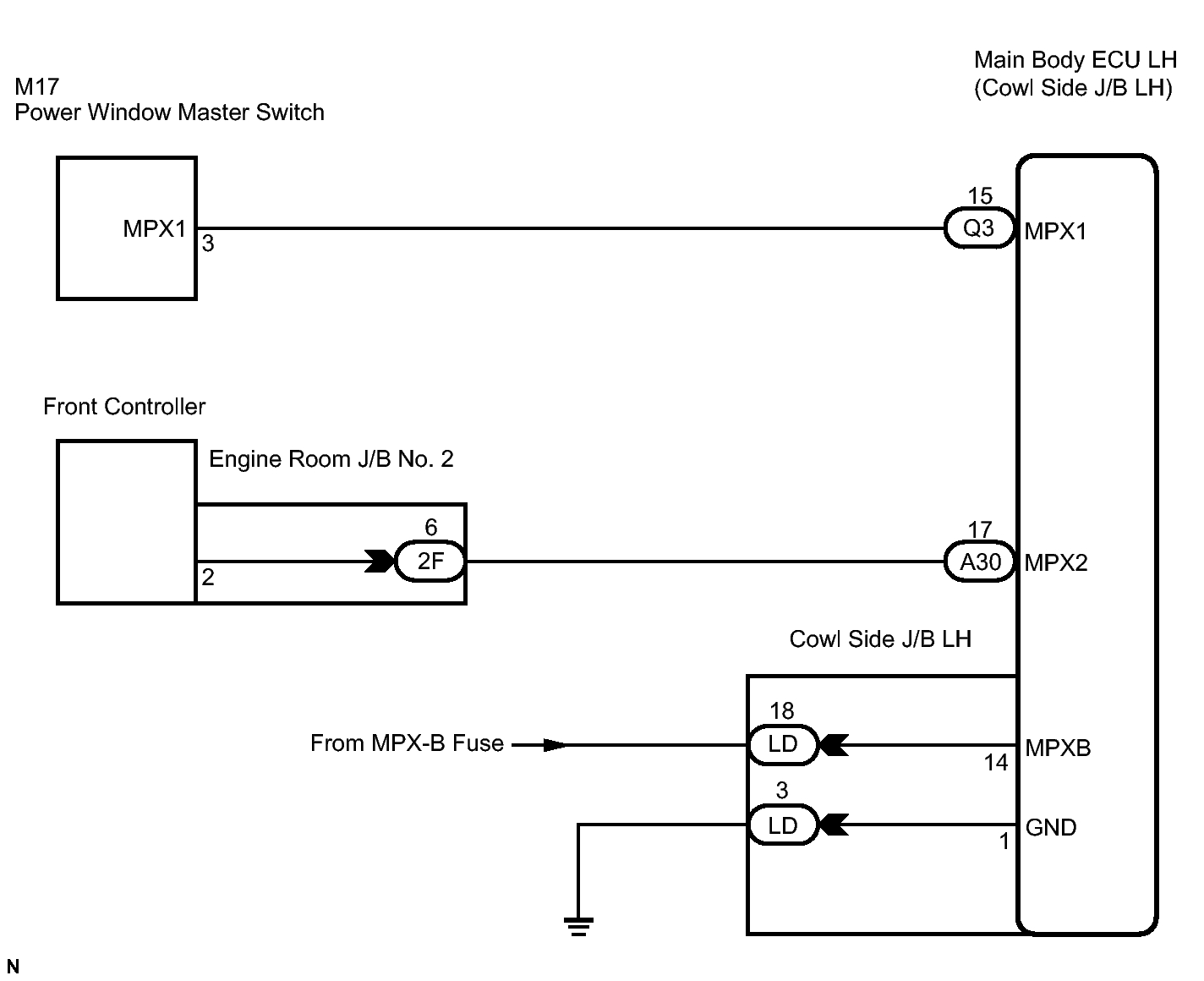

Fig 1: View Of Left Side Junction Block ECU Communication Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
