DTC B1271: Combination Meter ECU Communication Stop
>>
Wiring Diagram
DTC B1271: Combination Meter ECU Communication Stop: Wiring Diagram

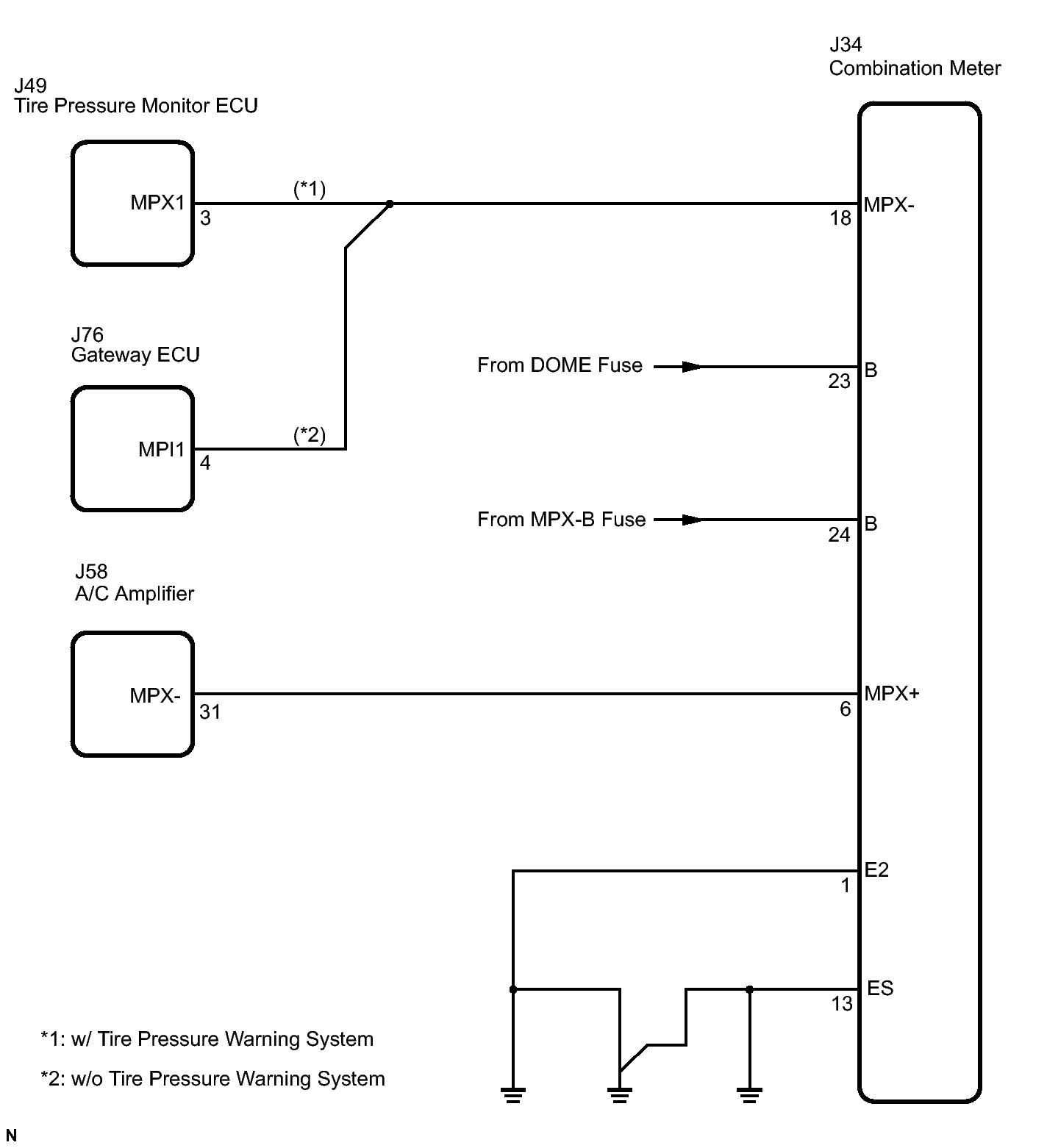

Fig 1: Identifying Combination Meter ECU Communication Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
