System Diagram

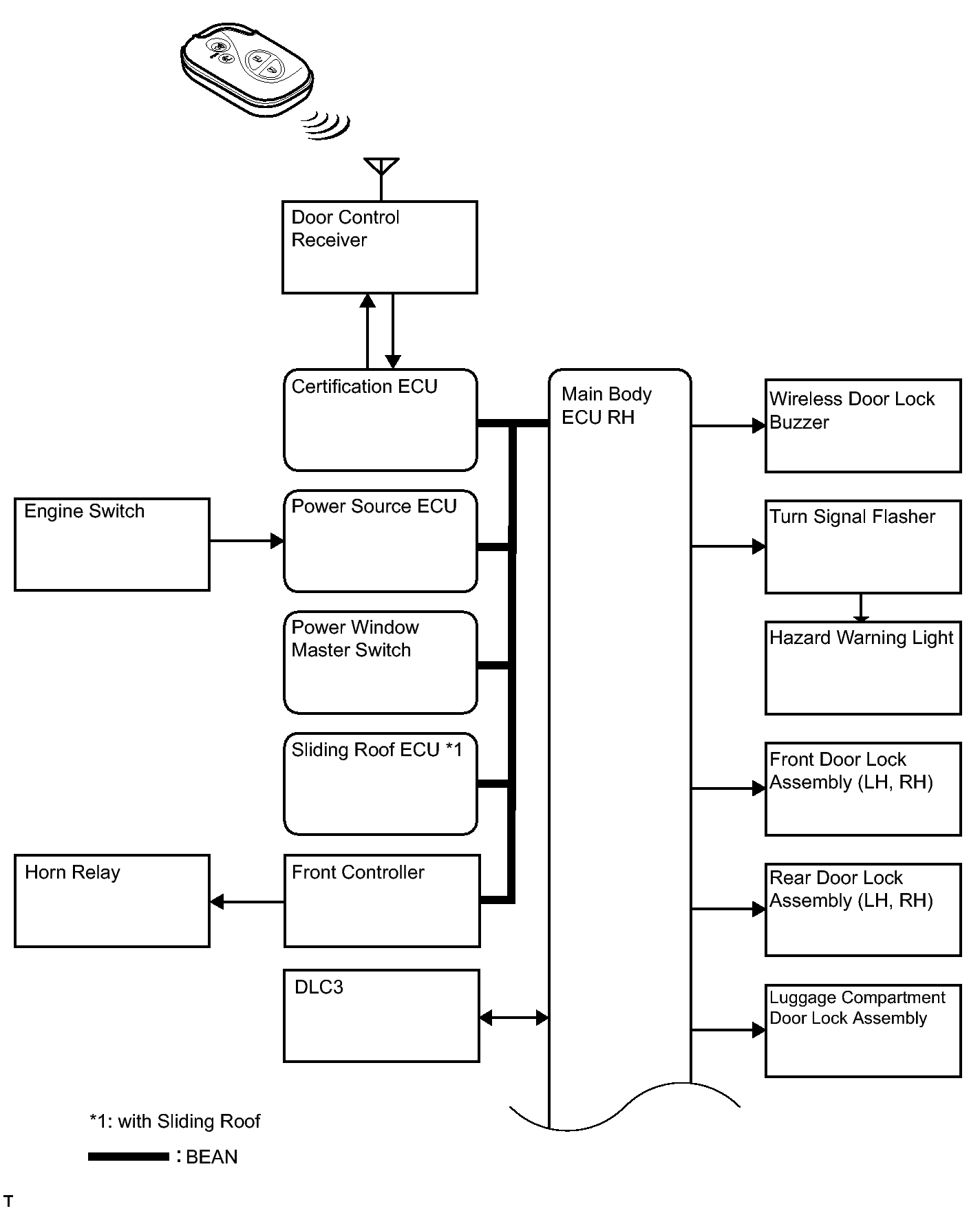

Fig 1: Wireless Door Lock Control System - System Diagram (1 Of 2)
GTY119004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

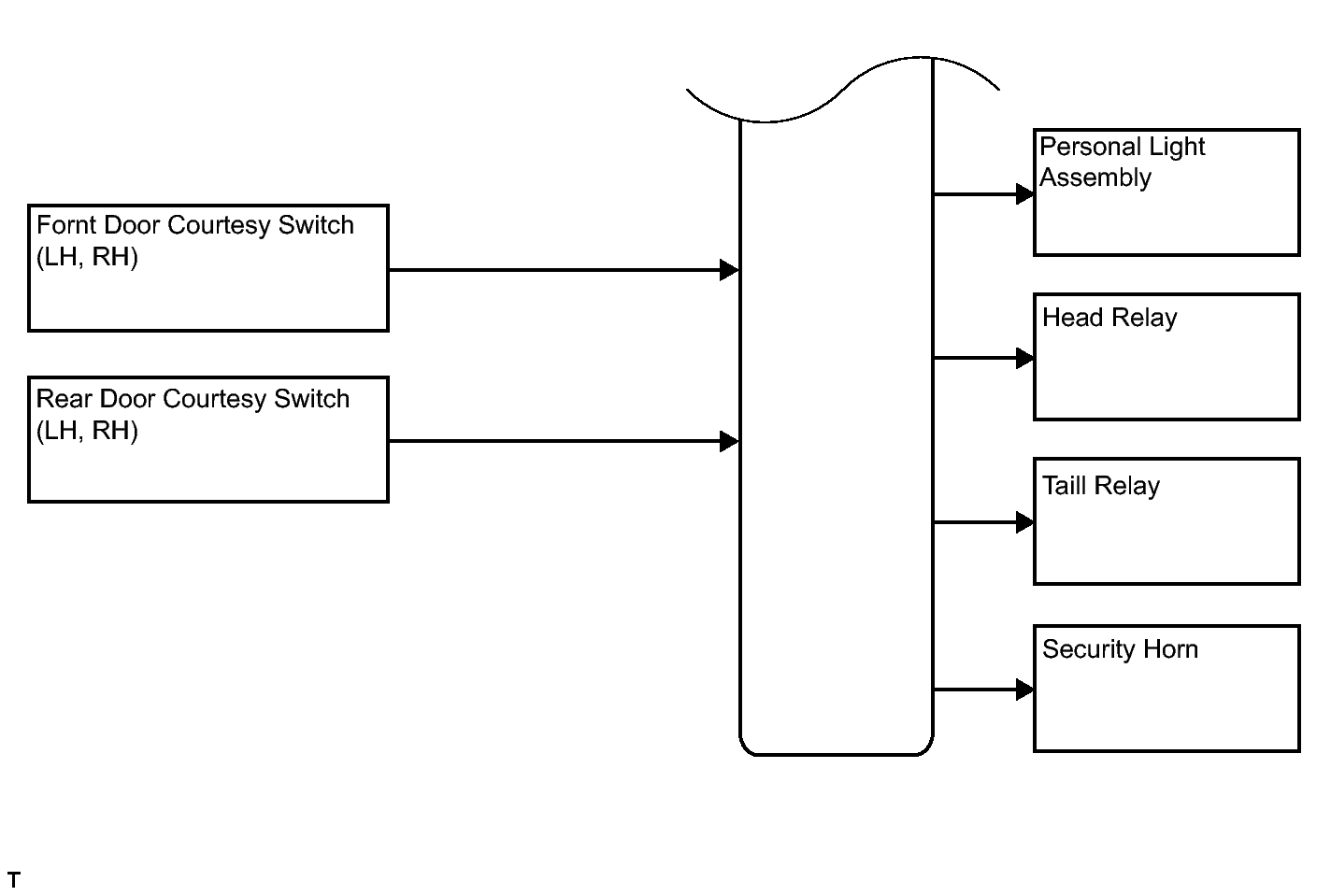

Fig 2: Wireless Door Lock Control System - System Diagram (2 Of 2)
GTY139944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU
(Transmitter)		 Receiving ECU
(Receiver)		 Signal Line
Certification ECU Main body ECU RH IG relay operating states BEAN
Power source ECU Main body ECU RH Engine switch signal BEAN
Main body ECU RH Power window master switch Power window open signal BEAN
Power window master switch Sliding roof ECU Sliding roof open signal BEAN
Main body ECU RH Front controller Vehicle horn sound request BEAN
