Engine Switch: Components: Illustration

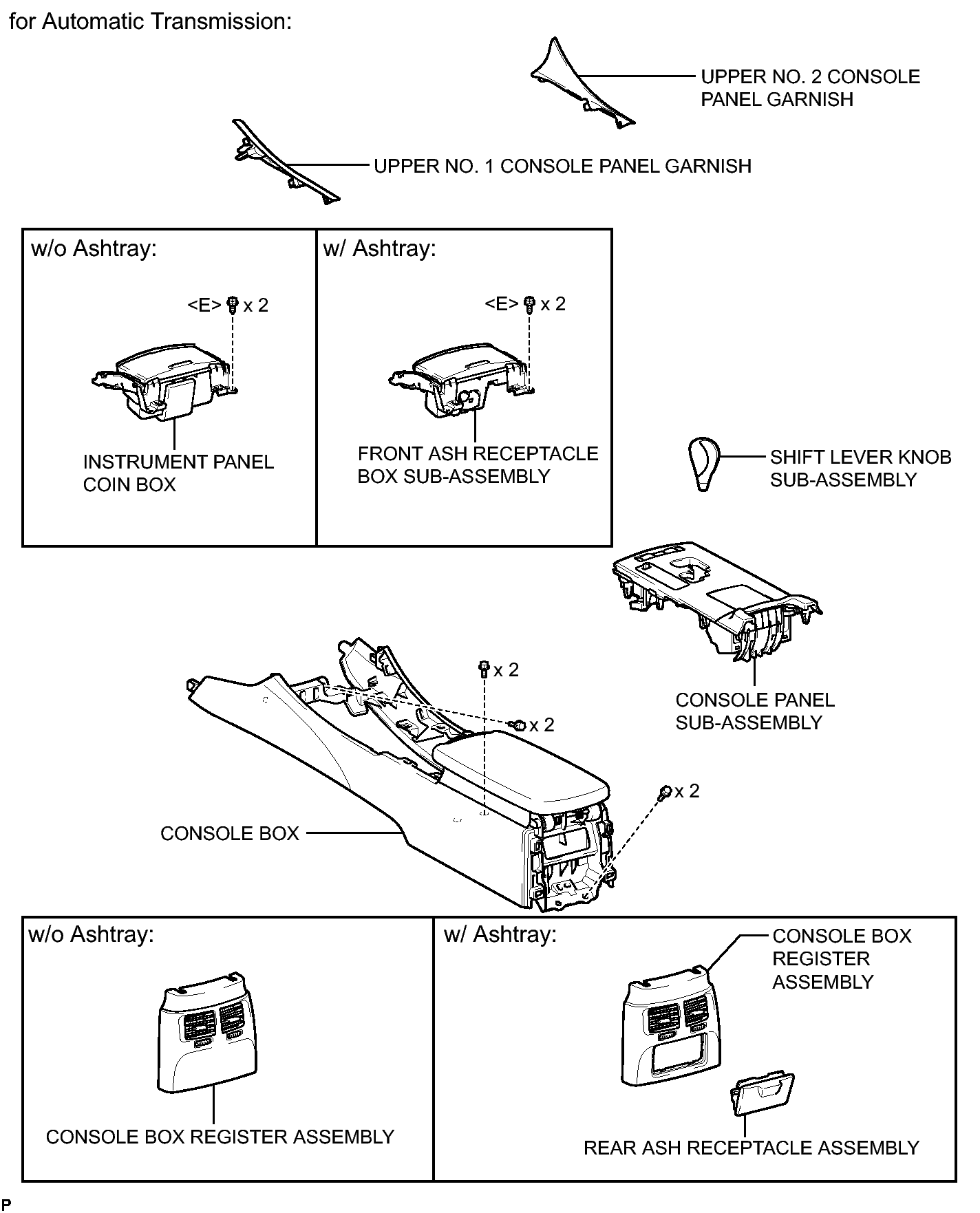

Fig 1: Identifying Engine Switch Replacement Components (1 Of 4)
GTY359379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


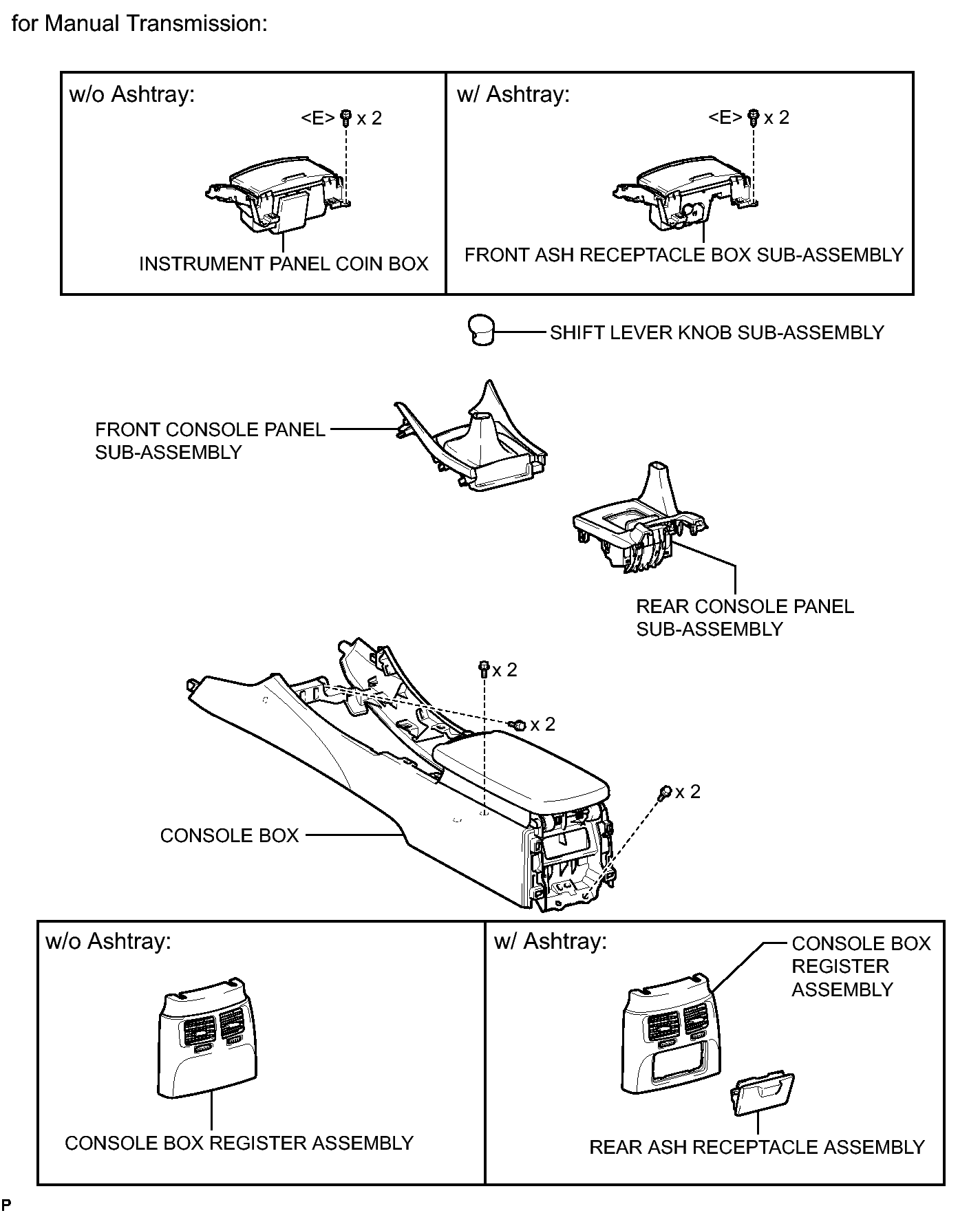

Fig 1: Identifying Engine Switch Replacement Components (2 Of 4)
GTY353646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


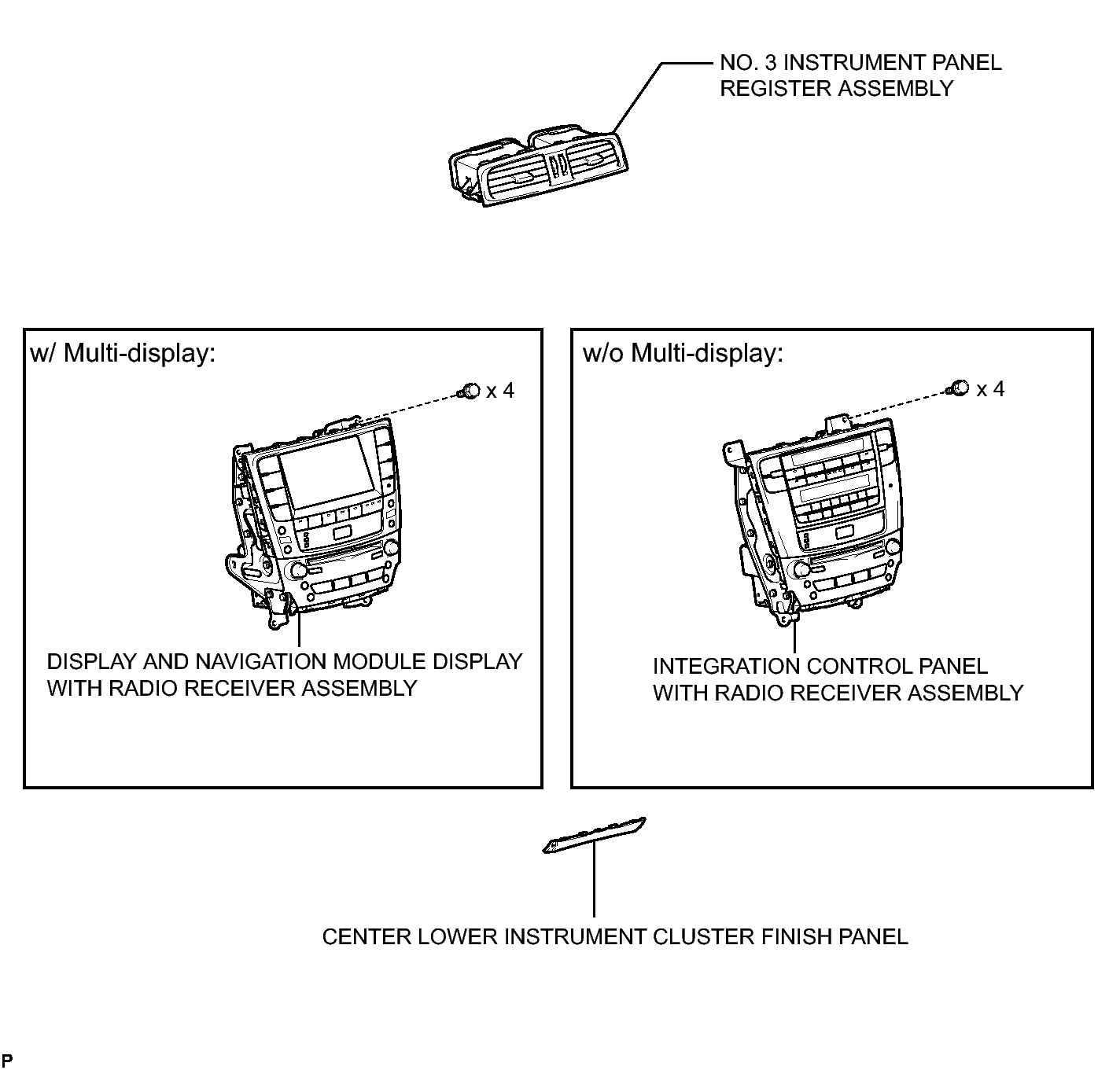

Fig 1: Identifying Engine Switch Replacement Components (3 Of 4)
GTY394090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Switch Replacement Components (4 Of 4)
GTY146255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
